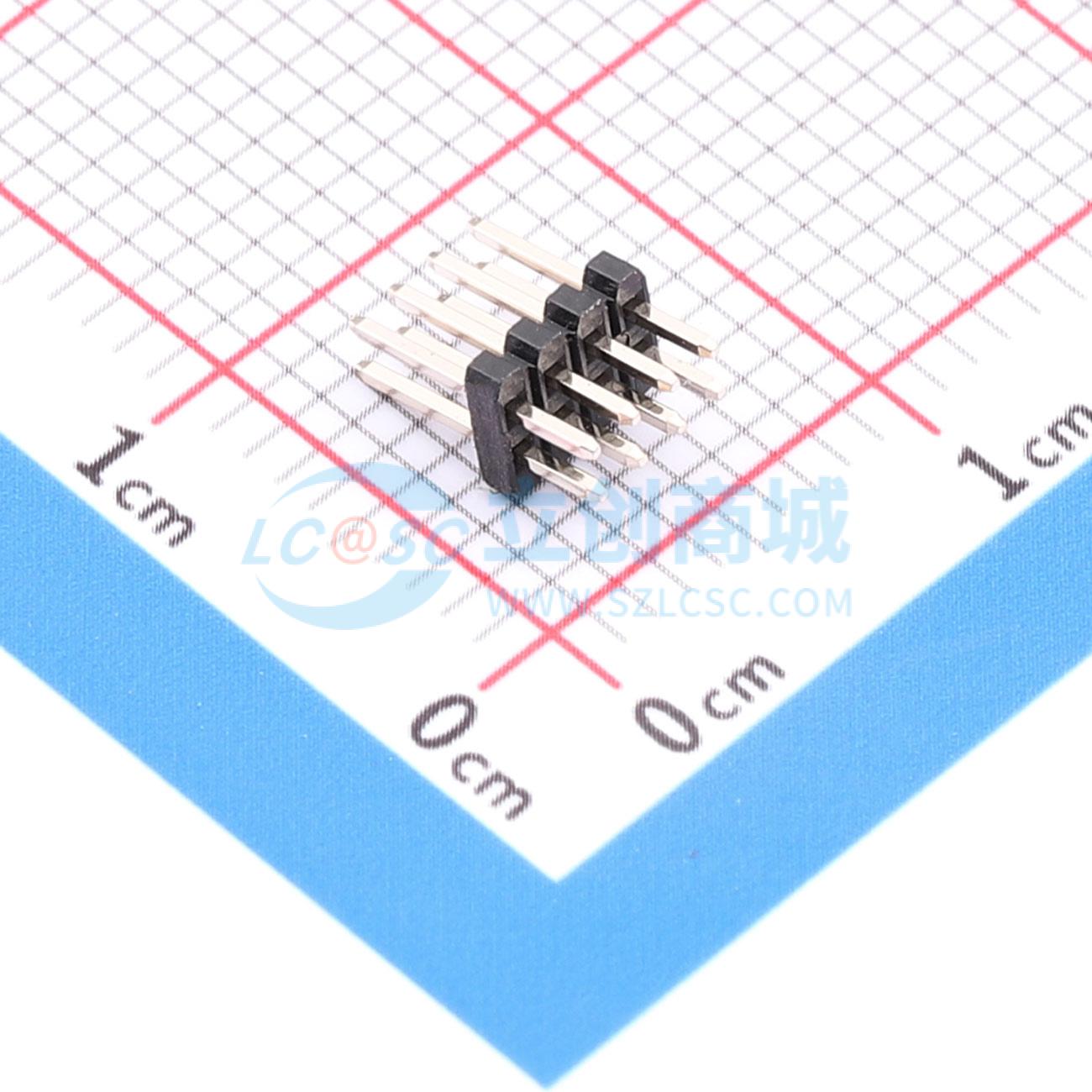

温馨提醒：图片仅供参考，商品以实物为准
LCK-PH18-12724PC39D23-G1PT0
2x4P 间距:1.27mm 方针 直插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 1.27PH H1.0 2*4PIN 180度 W3.4 PC2.3 PA3.9 PB1.0 L7.3
- 品牌名称
- LCKELEC(联晟欣)
- 商品型号
- LCK-PH18-12724PC39D23-G1PT0
- 商品编号
- C54950762
- 商品封装
- 插件,P=1.27mm
- 包装方式
- 袋装
- 商品毛重
- 0.10735克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排针 | |
| 插针结构 | 2x4P | |
| 间距 | 1.27mm | |
| 行距 | 1.27mm | |
| 圆针/方针 | 方针 | |
| 安装方式 | 直插 | |
| 排数 | 双排 | |
| 总PIN位数 | 8P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 1A | |
| 配合针长度 | 3.9mm | |
| 塑高 | 1mm | |
| 端接针长度 | 2.3mm | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -40℃~+105℃ | |
| 颜色 | 黑色 |
