温馨提醒：图片仅供参考，商品以实物为准

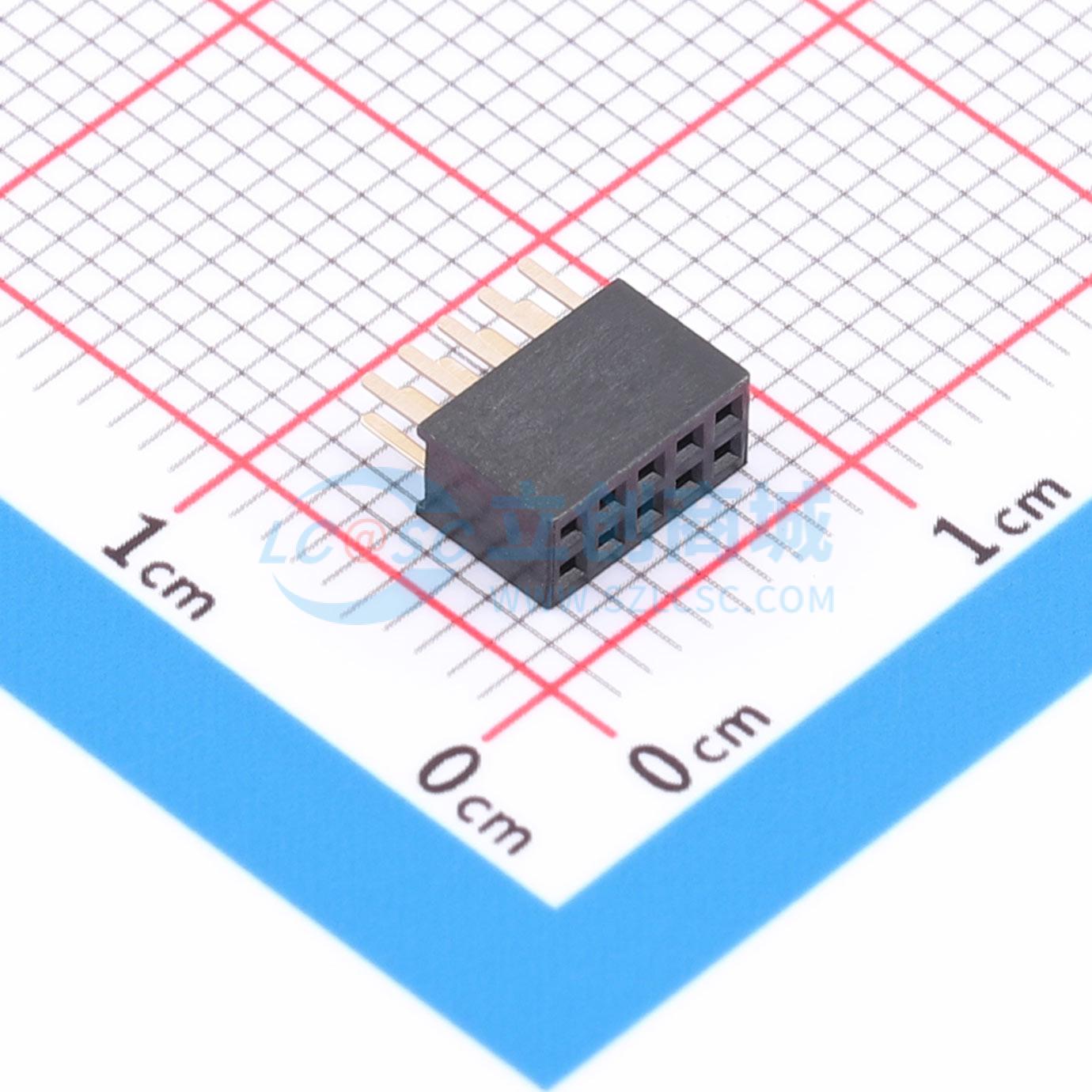

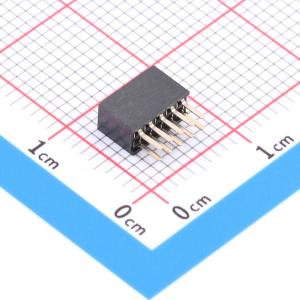

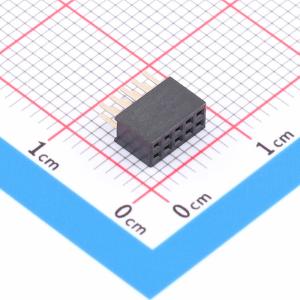

127PM-2x5P-V-H4.3
2x5P 间距:1.27mm 直插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 1.27*4.3 2*5P 直插排母常规
- 品牌名称
- LXWCONN(连兴旺电子)
- 商品型号
- 127PM-2x5P-V-H4.3
- 商品编号
- C54930179
- 商品封装
- 插件,P=1.27mm
- 包装方式
- 管装
- 商品毛重
- 0.486957克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排母 | |
| 插孔结构 | 2x5P | |
| 间距 | 1.27mm | |
| 行距 | 1.27mm | |
| 圆孔/方孔 | 方孔 | |
| 安装方式 | 直插 | |
| 排数 | 双排 | |
| 总孔位数 | 10P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 1A | |
| 插孔方向 | 顶部 | |
| 塑高 | 4.3mm | |
| 触头材质 | 磷青铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -40℃~+105℃ | |
| 针脚长度 | 2.4mm |
