温馨提醒：图片仅供参考，商品以实物为准

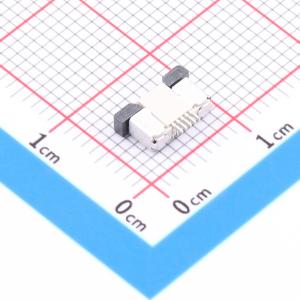

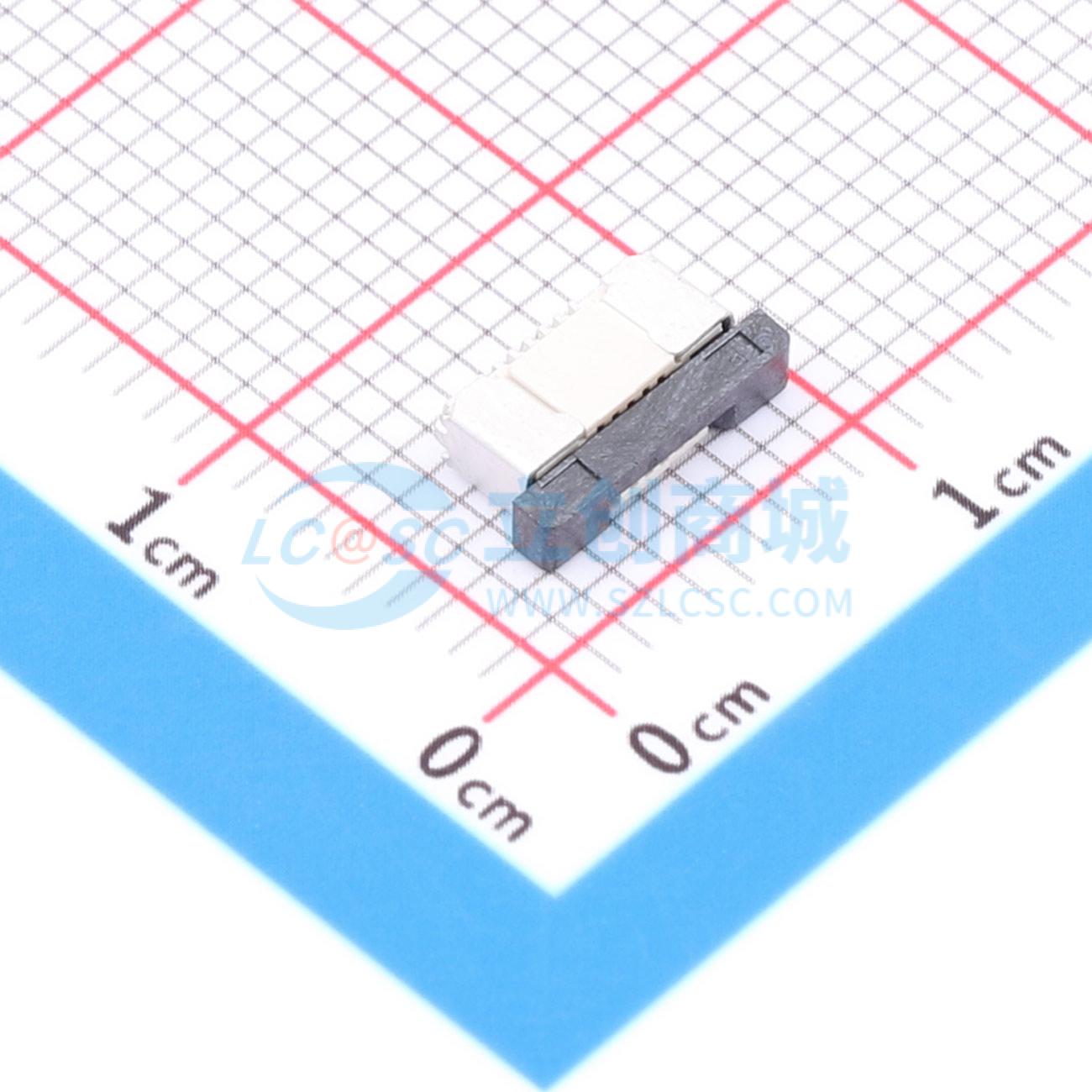

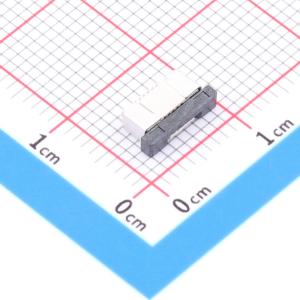

SH-FPC0.5-5PCLXJ-H2.0
抽屉式 下接 P数:5P 间距:0.5mm
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- FPC0.5-5P抽拉抽屉下接H2.0
- 品牌名称
- SANHI(深海电子)
- 商品型号
- SH-FPC0.5-5PCLXJ-H2.0
- 商品编号
- C54928178
- 商品封装
- SMD,P=0.5mm,卧贴
- 包装方式
- 编带
- 商品毛重
- 0.3067克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | FFC/FPC连接器 | |
| 锁定特性 | 抽屉式 | |
| 触点类型 | 下接 | |
| 触点数量 | 5P | |
| 间距 | 0.5mm | |
| 安装方式 | 卧贴 | |
| 接入柔性电缆厚度 | 0.3mm | |
| 板上高度 | 2.06mm |
| 属性 | 参数值 | |
|---|---|---|
| 触头材质 | 磷青铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -40℃~+85℃ | |
| 额定电压 | 50V | |
| 额定电流 | 500mA | |
| FPC/FFC扣 | 不带扣 | |
| 正脚/反脚 | 无正反区分 |
