温馨提醒：图片仅供参考，商品以实物为准

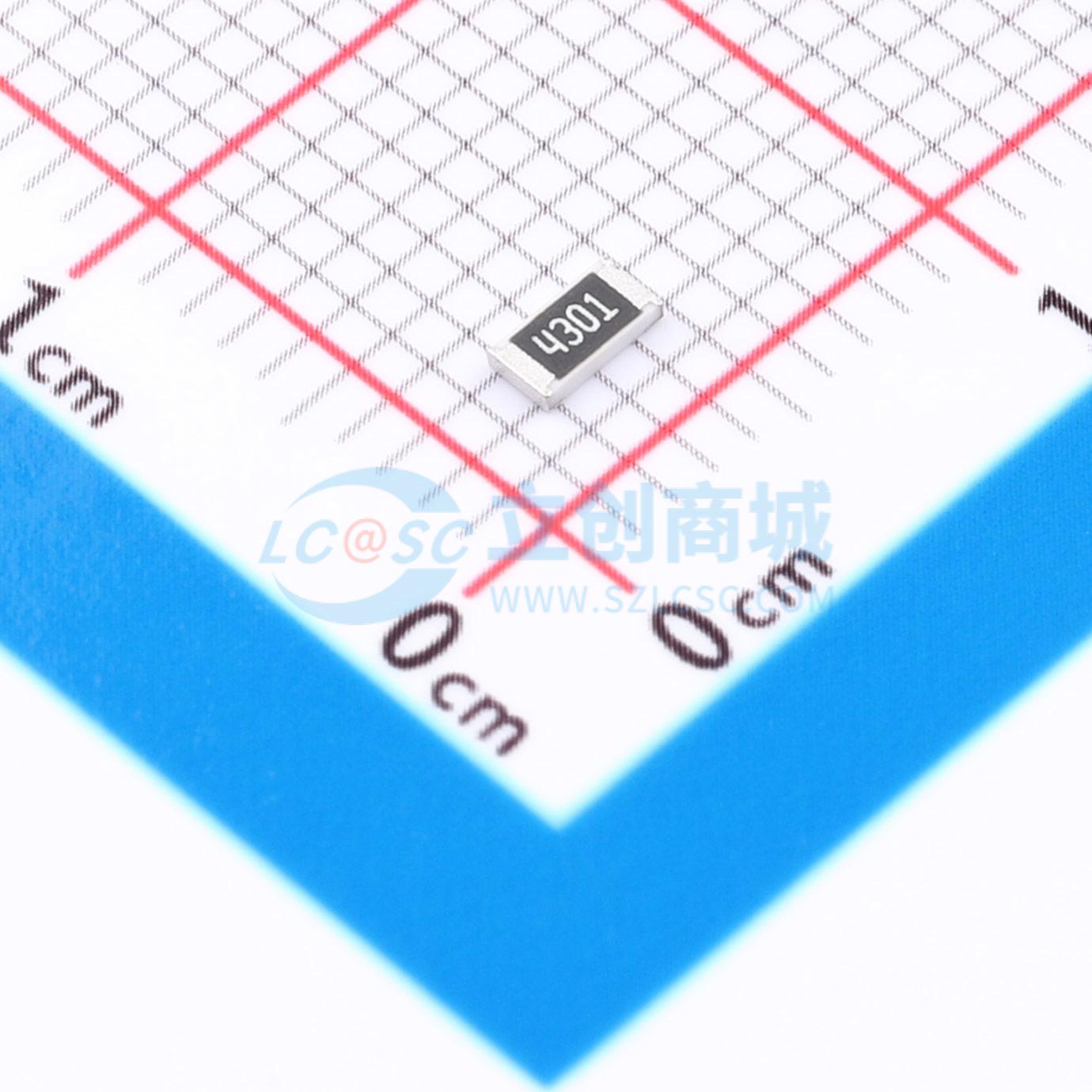

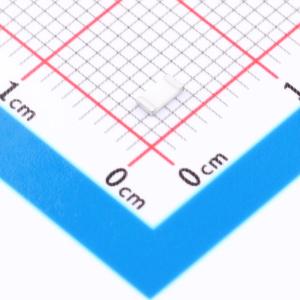

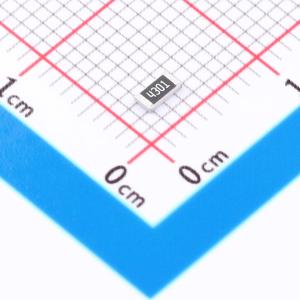

HRC1206F4301HNTN
厚膜电阻
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 通用型， 工业级标准，体积小，重量轻 电性能稳定，可靠度高 符合RoHS指令要求 符合无卤素要求
- 品牌名称
- HC(华橙熊猫)
- 商品型号
- HRC1206F4301HNTN
- 商品编号
- C54921504
- 商品封装
- 1206
- 包装方式
- 编带
- 商品毛重
- 0.029克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 贴片电阻 | |
| 电阻类型 | 厚膜电阻 | |
| 阻值 | 4.3kΩ | |
| 精度 | ±1% |
| 属性 | 参数值 | |
|---|---|---|
| 功率 | 250mW | |
| 工作电压 | 200V | |
| 温度系数 | ±100ppm/℃ | |
| 工作温度 | -55℃~+155℃ |
