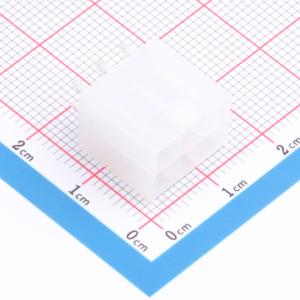

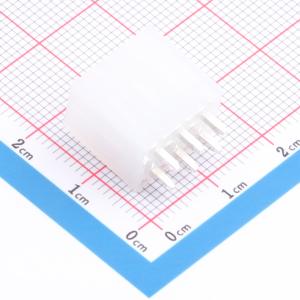

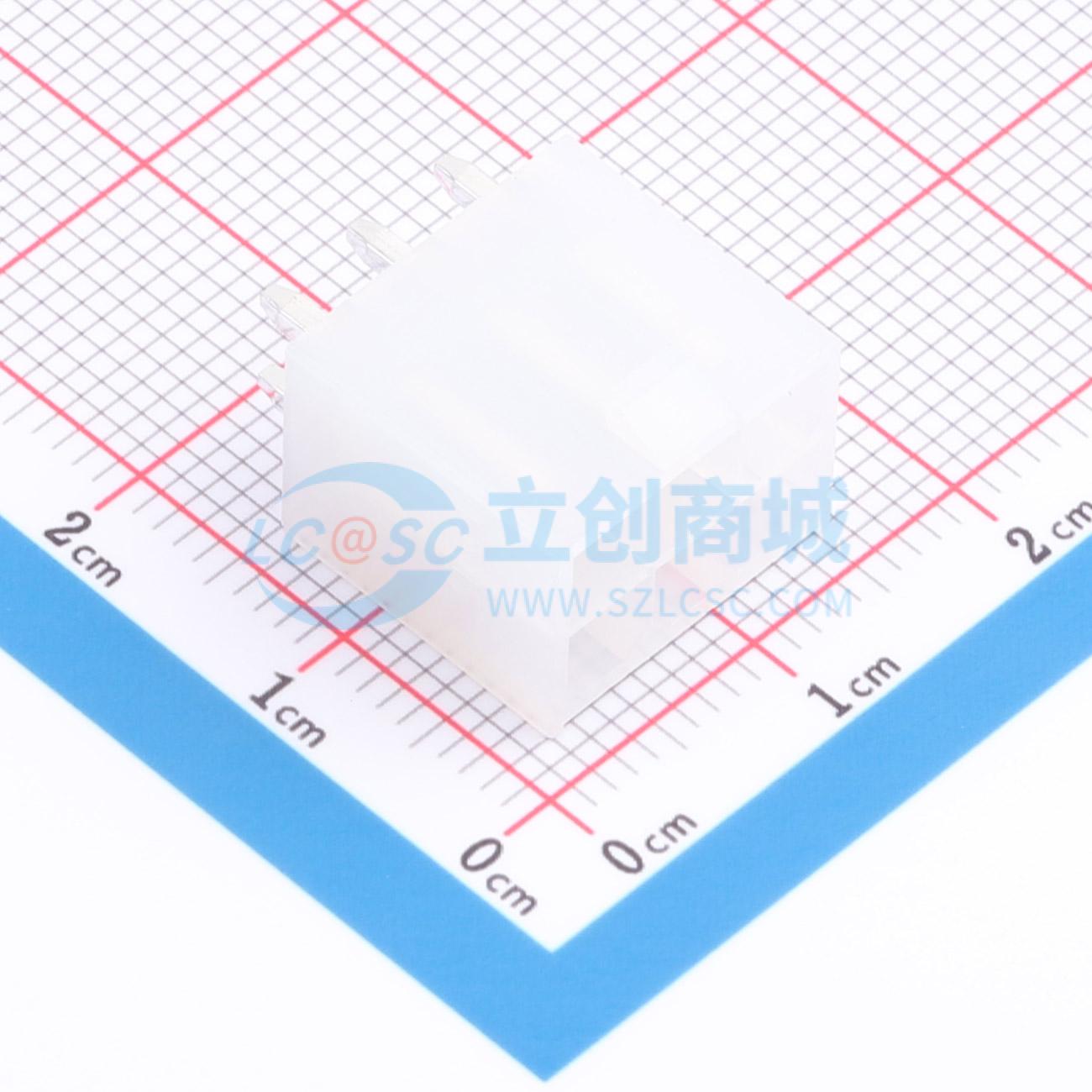

LAIL-PHC4.2-3PX2-01-MF-L
2x3P 间距:4.2mm 直插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- LAILAN(莱联)
- 商品型号
- LAIL-PHC4.2-3PX2-01-MF-L
- 商品编号
- C54905981
- 商品封装
- 插件,P=4.2mm
- 包装方式
- 袋装
- 商品毛重
- 0.090115克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x3P | |
| 间距 | 4.2mm | |
| 安装方式 | 直插 | |
| 参考系列 | - | |
| 总PIN数 | 6P | |
| 排数 | 2 | |
| 每排PIN数 | 3 | |
| 行距 | 4.2mm | |
| 额定电流 | 1A |
| 属性 | 参数值 | |
|---|---|---|
| 触头材质 | 黄铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 300V | |
| 塑料材质 | PA66 | |
| 阻燃等级 | UL94V-0 | |
| 颜色 | 透明色 | |
| Z轴-板上高度 | 13.1mm | |
| X轴-板上底边长度(间距线) | 13.8mm | |
| Y轴-板上底边宽度 | 10mm |
