温馨提醒：图片仅供参考，商品以实物为准

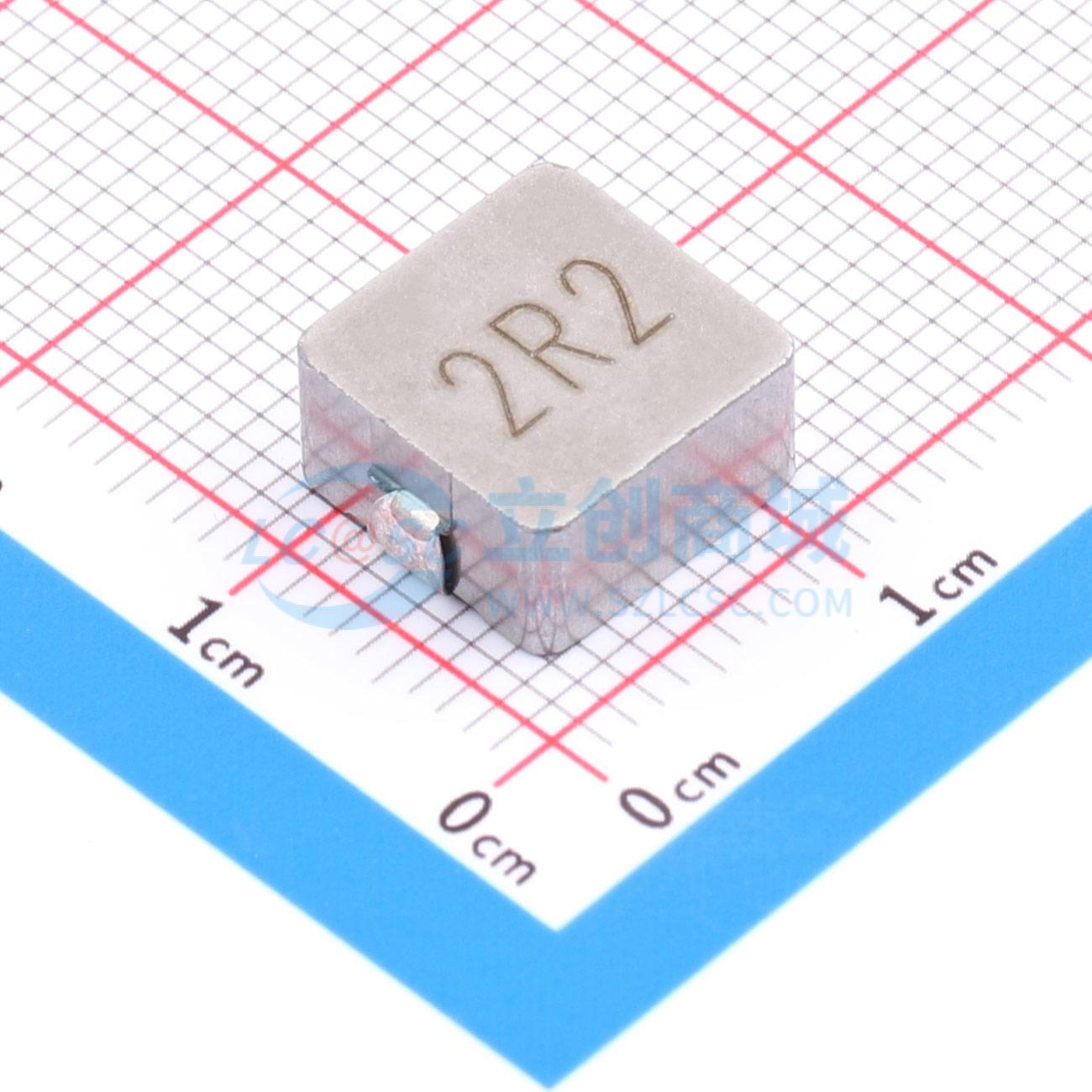

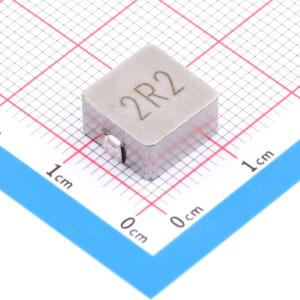

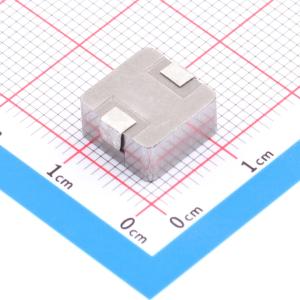

MAWH-1054-2R2-M-5A
1054 2.2uH ±20%
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 感值：2.2uH 精度：±20%
- 品牌名称
- MAZO(玛冀)
- 商品型号
- MAWH-1054-2R2-M-5A
- 商品编号
- C54815254
- 商品封装
- SMD,11.5x10mm
- 包装方式
- 编带
- 商品毛重
- 4.1708克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 2.2uH | |
| 精度 | ±20% | |
| 额定电流 | 20.7A |
| 属性 | 参数值 | |
|---|---|---|
| 饱和电流(Isat) | 21.4A | |
| 直流电阻(DCR) | 4.1mΩ | |
| 类型 | 屏蔽电感 |
