温馨提醒：图片仅供参考，商品以实物为准

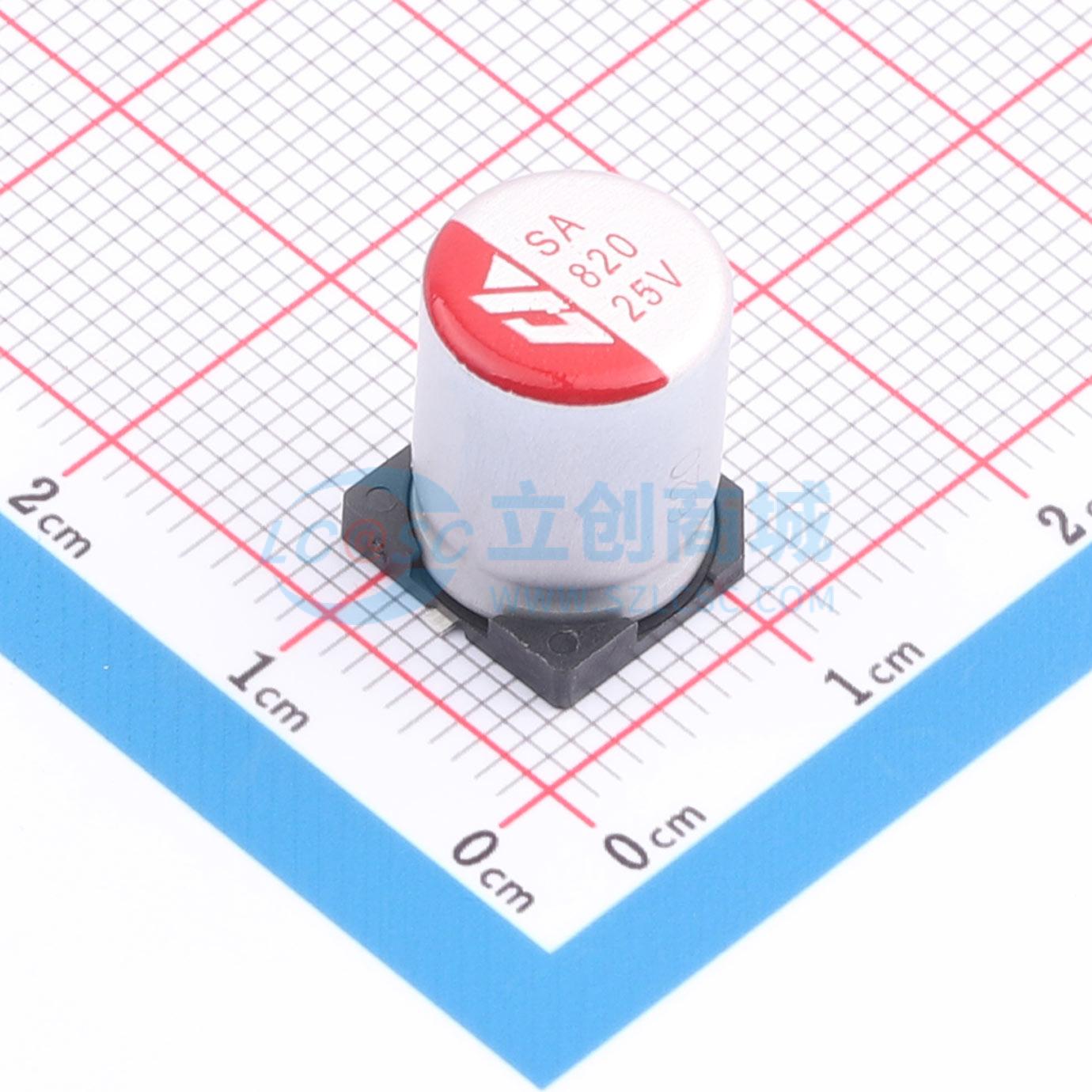

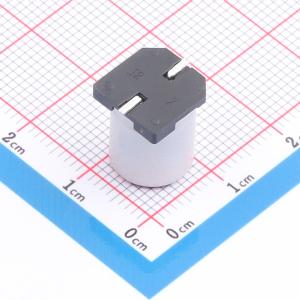

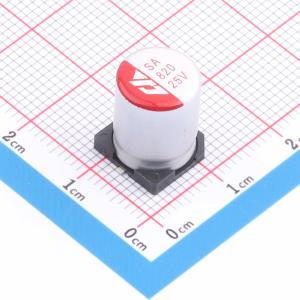

SA821M250G12R7R4Z00ZZ
820uF ±20% 25V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 耐高温，2000H at 125℃
- 品牌名称
- CH(创慧电子)
- 商品型号
- SA821M250G12R7R4Z00ZZ
- 商品编号
- C54799877
- 商品封装
- SMD,D10xL12.7mm
- 包装方式
- 编带
- 商品毛重
- 2.457克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 固态电容 | |
| 容值 | 820uF | |
| 精度 | ±20% | |
| 额定电压 | 25V | |
| 类型 | 聚合物 |
| 属性 | 参数值 | |
|---|---|---|
| 电容体直径 | 10mm | |
| 电容体长度 | 12.7mm | |
| 工作寿命 | 2000hrs@125℃ | |
| 工作温度 | -55℃~+125℃ |
