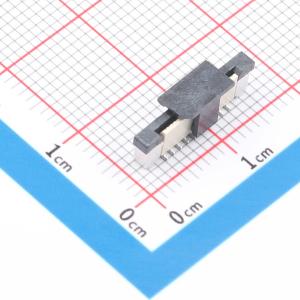

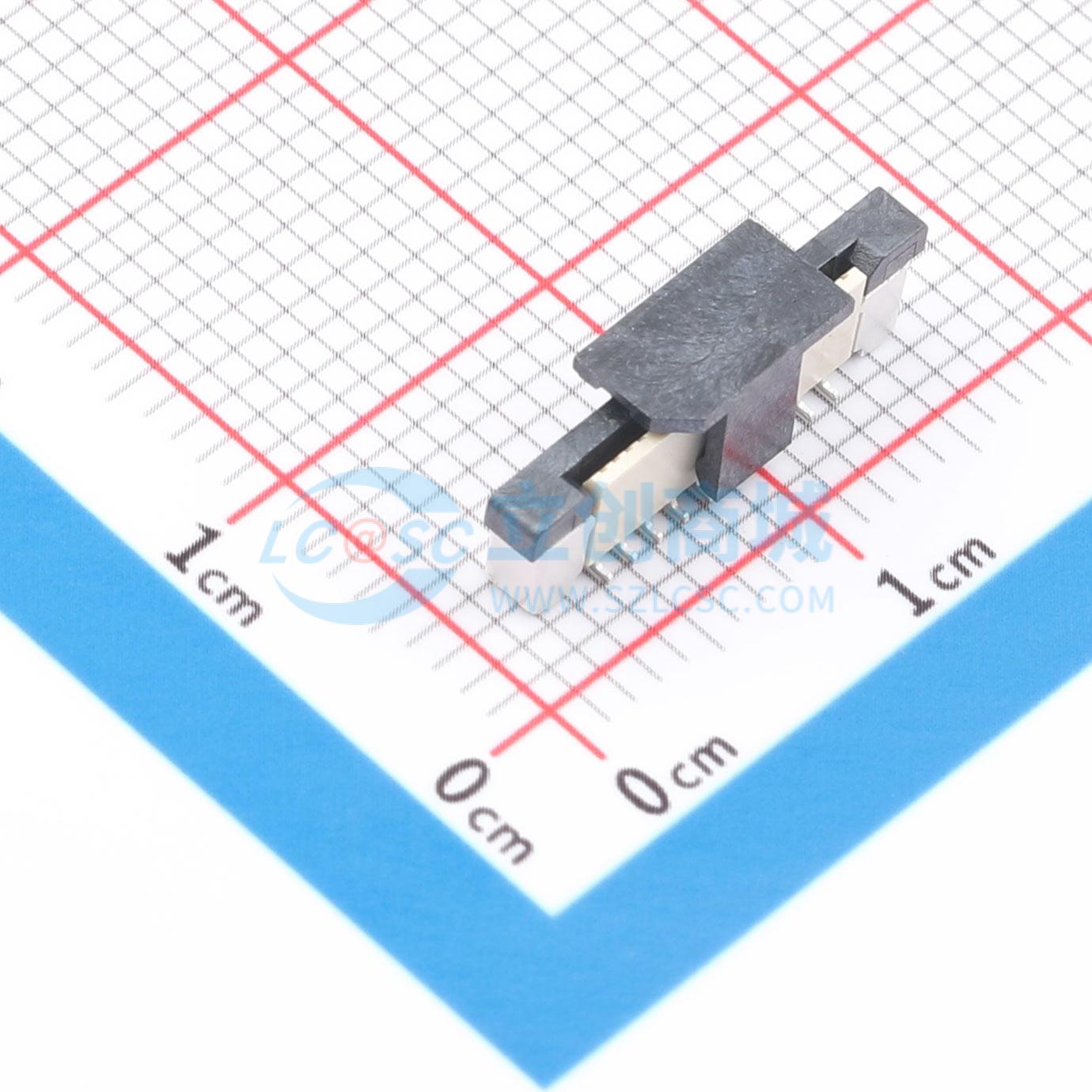

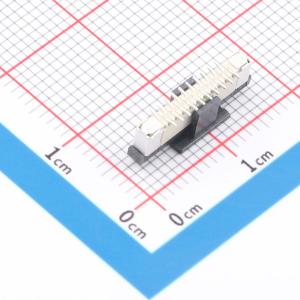

温馨提醒：图片仅供参考，商品以实物为准
FC-05C20P11H20L
抽屉式 单侧触点/垂直 P数:20P 间距:0.5mm
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- FPC 0.5A 拉拔 立贴正位H2.0 20P
- 品牌名称
- BXCONN(宝讯)
- 商品型号
- FC-05C20P11H20L
- 商品编号
- C54777910
- 商品封装
- SMD,P=0.5mm(交错脚)
- 包装方式
- 编带
- 商品毛重
- 0.4228克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | FFC/FPC连接器 | |
| 锁定特性 | 抽屉式 | |
| 触点类型 | 单侧触点/垂直 | |
| 触点数量 | 20P | |
| 间距 | 0.5mm | |
| 安装方式 | 立贴 | |
| 接入柔性电缆厚度 | 0.3mm |
| 属性 | 参数值 | |
|---|---|---|
| 板上高度 | 4.37mm | |
| 触头材质 | 磷青铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -40℃~+85℃ | |
| 额定电压 | 50V | |
| 额定电流 | 500mA |
