温馨提醒：图片仅供参考，商品以实物为准

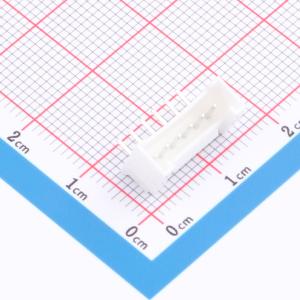

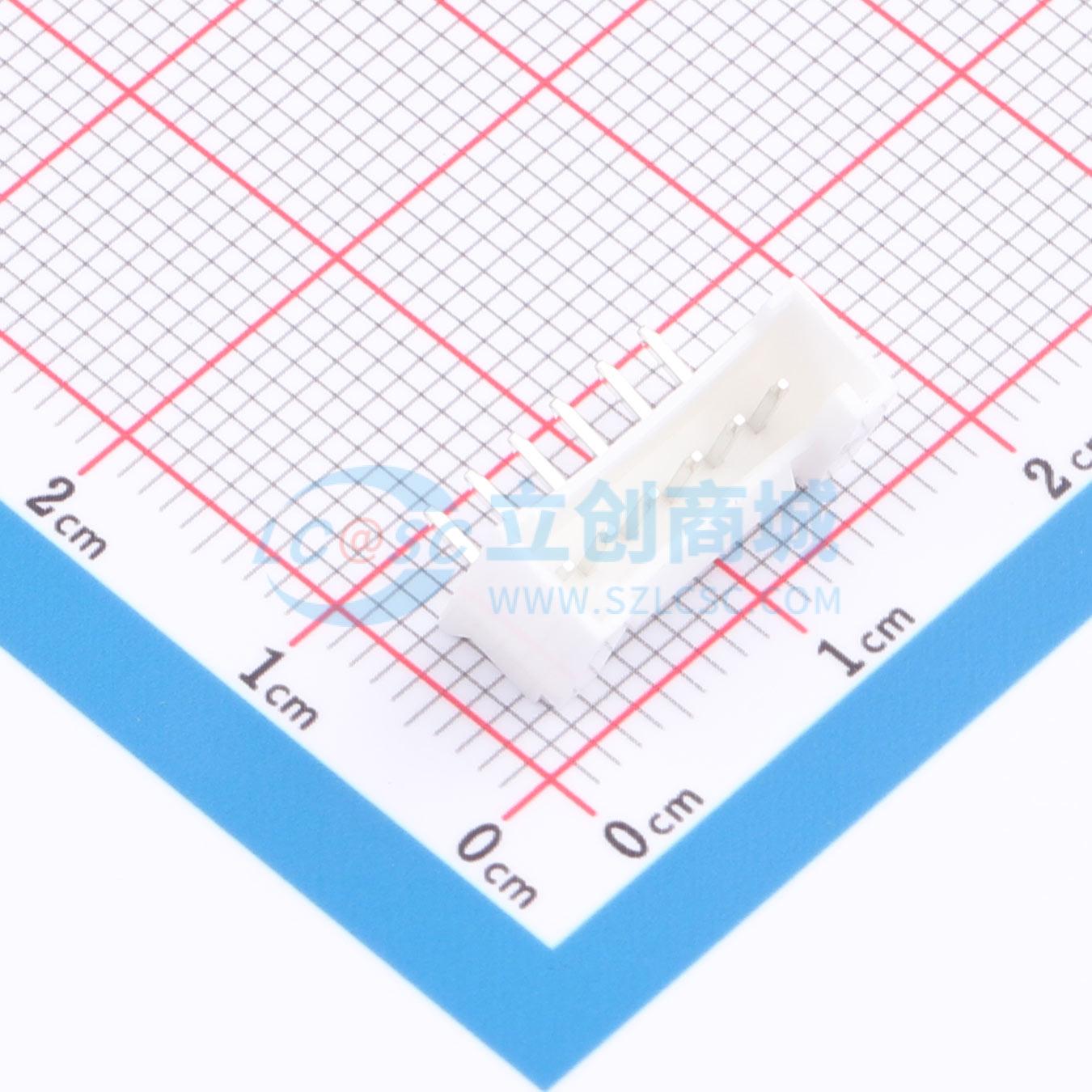

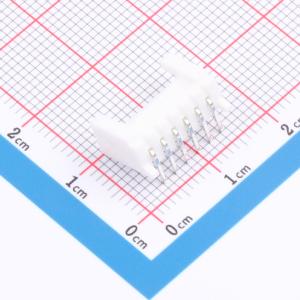

LCK-WF-A2002WR-6PA
1x6P 间距:2mm 弯插 系列:HY
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- WAFER HY带扣2.00弯针6P
- 品牌名称
- LCKELEC(联晟欣)
- 商品型号
- LCK-WF-A2002WR-6PA
- 商品编号
- C54769962
- 商品封装
- 弯插,P=2mm
- 包装方式
- 袋装
- 商品毛重
- 0.3824克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x6P | |
| 间距 | 2mm | |
| 安装方式 | 弯插 | |
| 参考系列 | HY | |
| 总PIN数 | 6P | |
| 排数 | 1 | |
| 每排PIN数 | 6 | |
| 行距 | 2mm | |
| 额定电流 | 2A |
| 属性 | 参数值 | |
|---|---|---|
| 触头材质 | 磷青铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -25℃~+105℃ | |
| 额定电压 | 250V | |
| 塑料材质 | PA66 | |
| 阻燃等级 | UL94V-0 | |
| 颜色 | 白色 | |
| Z轴-板上高度 | 5.1mm | |
| X轴-板上底边长度(间距线) | 14mm | |
| Y轴-板上底边宽度 | 8mm |
