温馨提醒：图片仅供参考，商品以实物为准

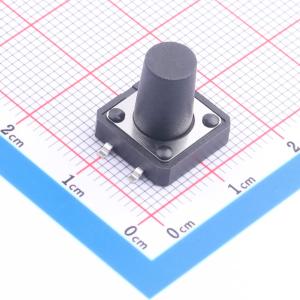

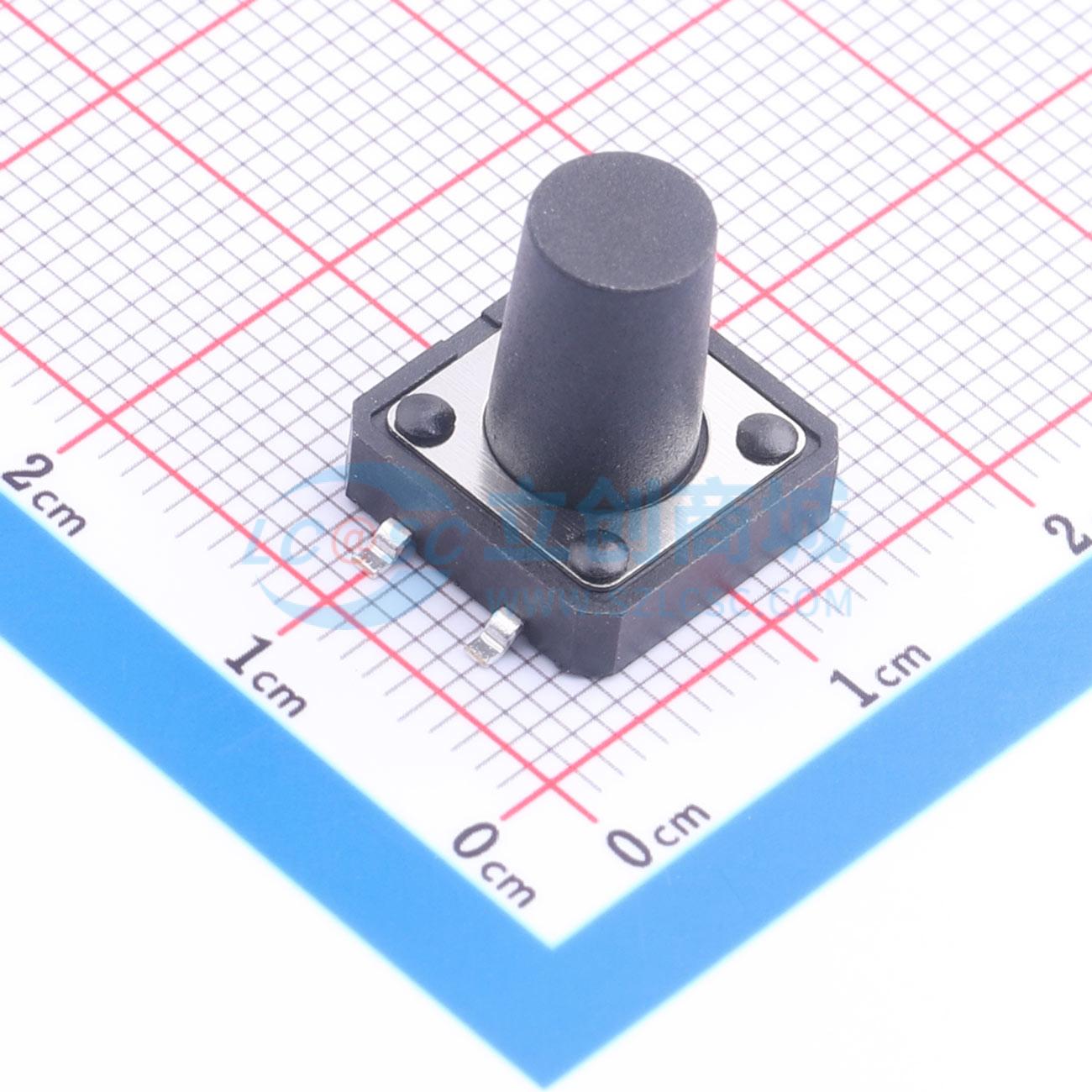

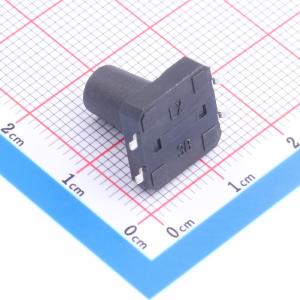

TS1103S-12x12x13.0SMD
TS1103S-12x12x13.0SMD
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 轻触开关12x12x13立式贴片，260GF，2.6N，高寿命，三个接触泡点50万寿命
- 品牌名称
- CAX(创都)
- 商品型号
- TS1103S-12x12x13.0SMD
- 商品编号
- C54573018
- 商品封装
- SMD-4P,12x12mm
- 包装方式
- 袋装
- 商品毛重
- 1.0884克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 轻触开关 | |
| 电路结构 | 单刀单掷 | |
| 按钮形状 | 圆形按钮 | |
| 安装方式 | 立贴 | |
| 开关长度 | 12mm | |
| 开关宽度 | 12mm | |
| 开关高度 | 13mm |
| 属性 | 参数值 | |
|---|---|---|
| 带支架 | 不带支架 | |
| 触点电流 | 50mA | |
| 额定电压 | 12V | |
| 按钮/盖帽颜色 | 黑色 | |
| 带灯 | 无 | |
| 引脚样式 | 鸥翼型 | |
| 工作温度 | -20℃~+70℃ |
