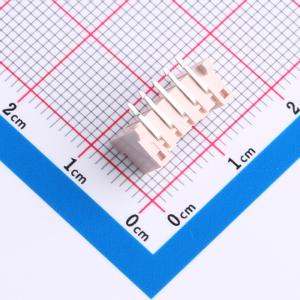

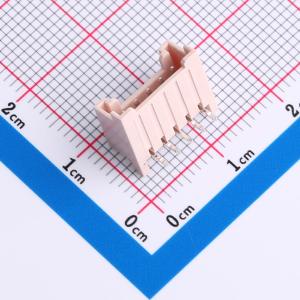

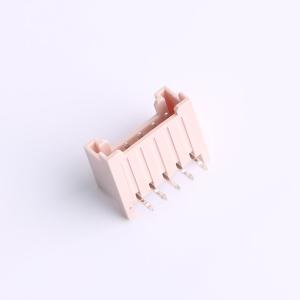

温馨提醒：图片仅供参考，商品以实物为准
X3535WR-05B-N0SN
1x5P 间距:2mm 弯插
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 线对板连接器(MX35363)针座,90度,DIP2.5 配套:针座X3535WR-05B-N0SN 胶壳X3535H-05-N0 端子X3535T-PSN
- 商品型号
- X3535WR-05B-N0SN
- 商品编号
- C5146414
- 商品封装
- 弯插,P=2mm
- 包装方式
- 袋装
- 商品毛重
- 0.44克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x5P | |
| 间距 | 2mm | |
| 安装方式 | 弯插 | |
| 排数 | 1 | |
| 每排PIN数 | 5 | |
| 额定电流 | 2A |
| 属性 | 参数值 | |
|---|---|---|
| 触头材质 | 黄铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -40℃~+125℃ | |
| 额定电压 | 125V | |
| 塑料材质 | PA66 | |
| 阻燃等级 | UL94V-0 | |
| X轴-板上底边长度(间距线) | 12.3mm |
