温馨提醒：图片仅供参考，商品以实物为准

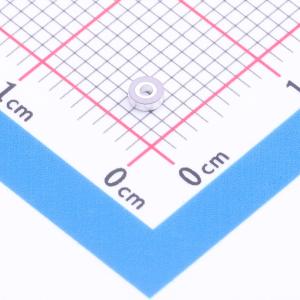

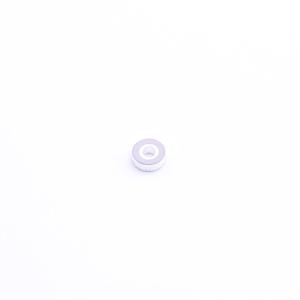

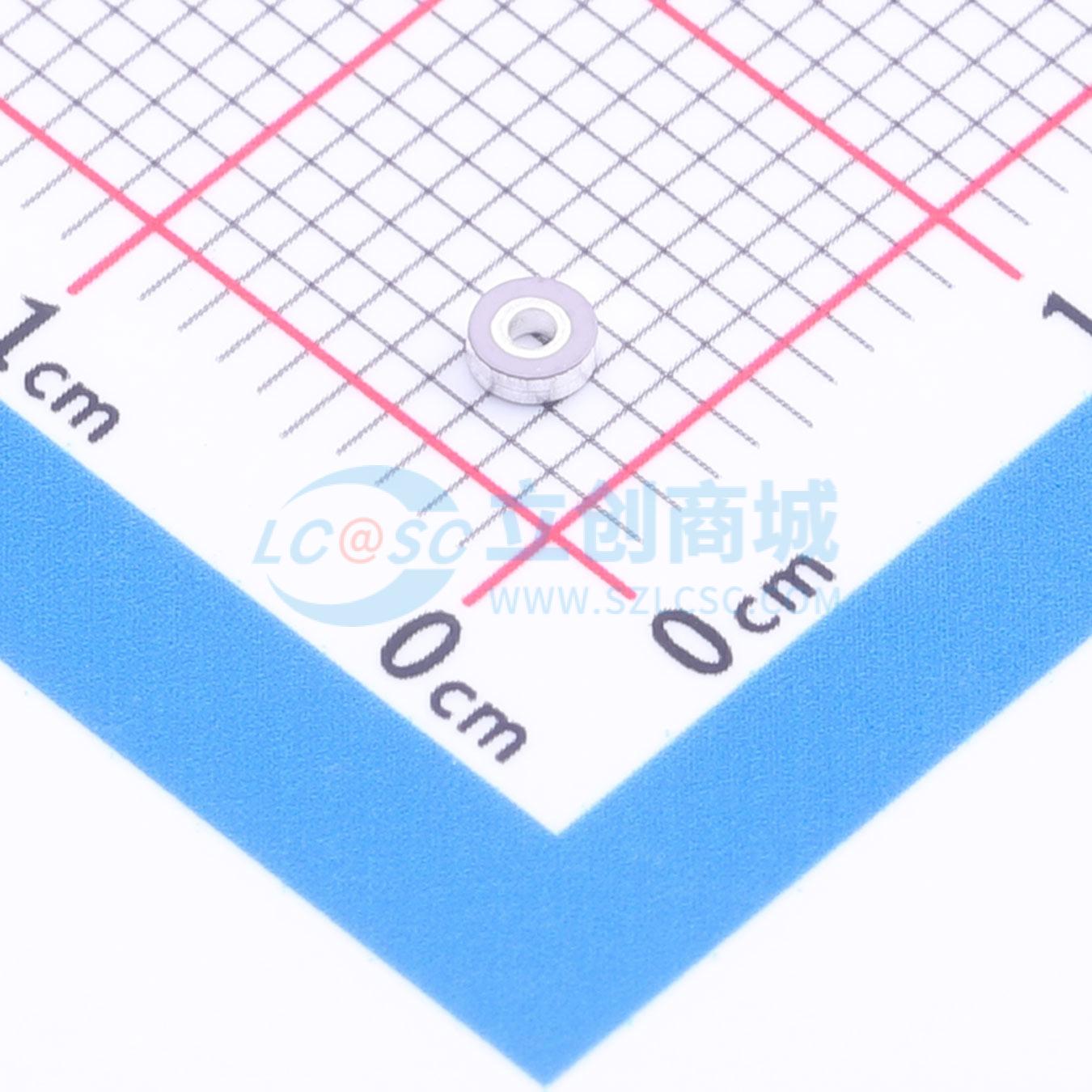

HLT-095030AN300M6B0
材料NP0，外径2.4mm，耐压50V，盘式电容
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 材料NP0，外径2.4mm，耐压50V，盘式电容
- 品牌名称
- HenryTech(恒利泰)
- 商品型号
- HLT-095030AN300M6B0
- 商品编号
- C53924843
- 商品封装
- SMD,D2.5xL1.1mm
- 包装方式
- 袋装
- 商品毛重
- 0.205263克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 盘式电容 | |
| 圆盘直径 | 2.4mm | |
| 容值 | 30pF | |
| 精度 | ±20% |
| 属性 | 参数值 | |
|---|---|---|
| 额定电压 | 50V | |
| 温度系数 | NP0 | |
| 工作温度 | -55℃~+125℃ |
商品特性
- 非极化特性
- 低 ESR/ESL 电容器
- 体积小、成本低
- 稳定性高、耐压值高
应用领域
- 射频功率放大器、滤波器、振荡器、谐振器、阻抗匹配网络
- 去耦与旁路
- 噪声抑制与滤波作用
