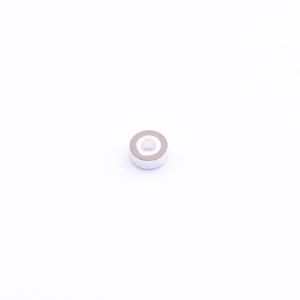

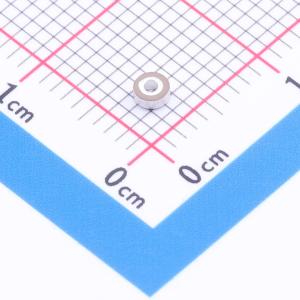

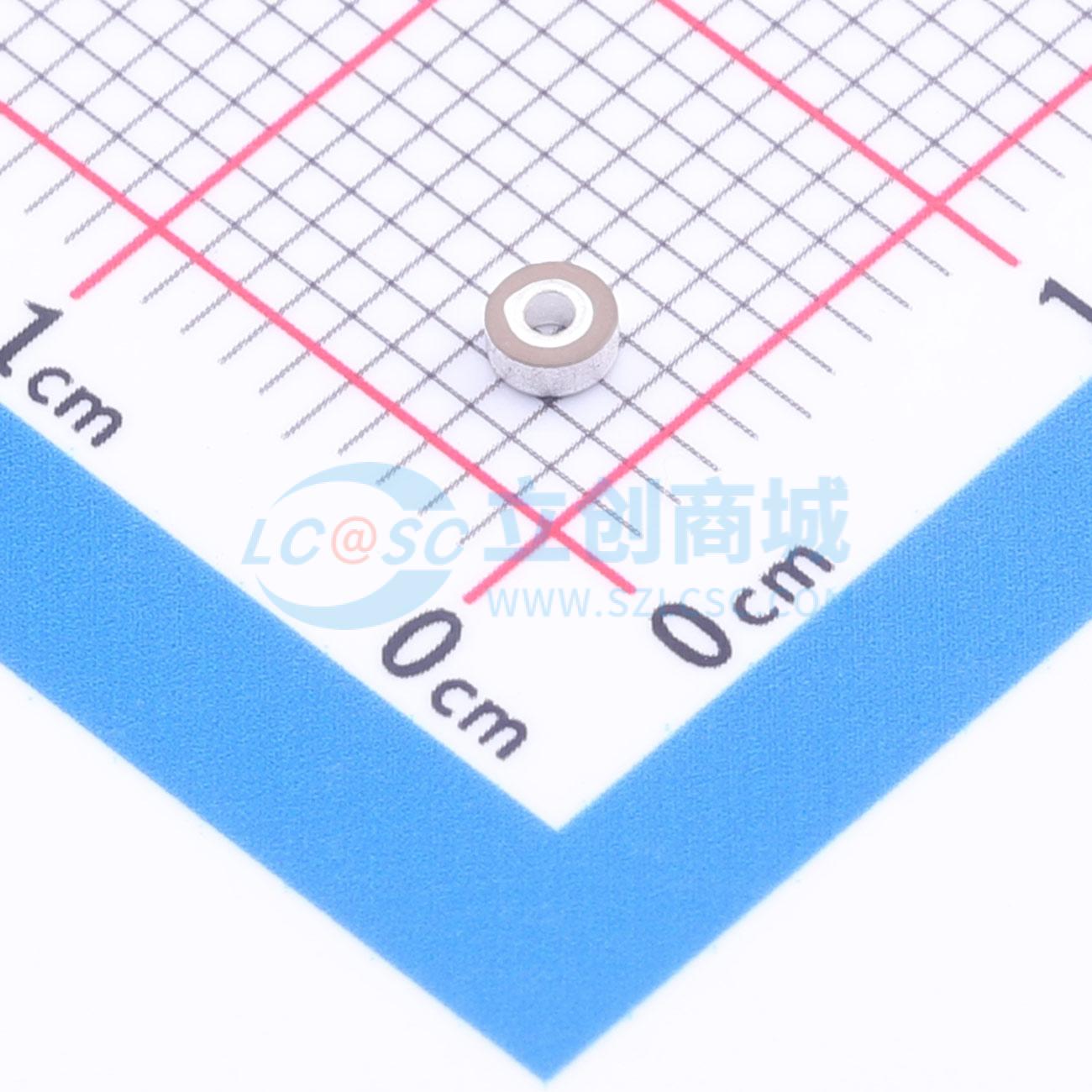

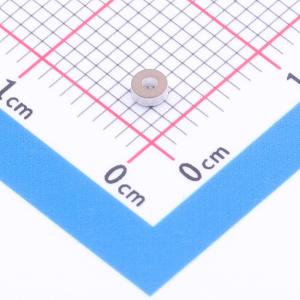

温馨提醒：图片仅供参考，商品以实物为准
HLT-100030SX103M6B0
10000pF ±20% 25V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 材料X7R，外径2.5mm，耐压25V，盘式电容
- 品牌名称
- HenryTech(恒利泰)
- 商品型号
- HLT-100030SX103M6B0
- 商品编号
- C53924514
- 商品封装
- SMD,D2.6xL1.1mm
- 包装方式
- 袋装
- 商品毛重
- 0.2克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 盘式电容 | |
| 圆盘直径 | 2.5mm | |
| 容值 | 10000pF | |
| 精度 | ±20% |
| 属性 | 参数值 | |
|---|---|---|
| 工作电压 | 25V | |
| 温度系数 | X7R | |
| 工作温度 | -55℃~+125℃ |
商品特性
- 非极化特性
- 低 ESR/ESL 电容器
- 体积小、成本低
- 稳定性高、耐压值高
应用领域
- 射频功率放大器、滤波器、振荡器、谐振器、阻抗匹配网络
- 去耦与旁路
- 噪声抑制与滤波作用
