温馨提醒：图片仅供参考，商品以实物为准

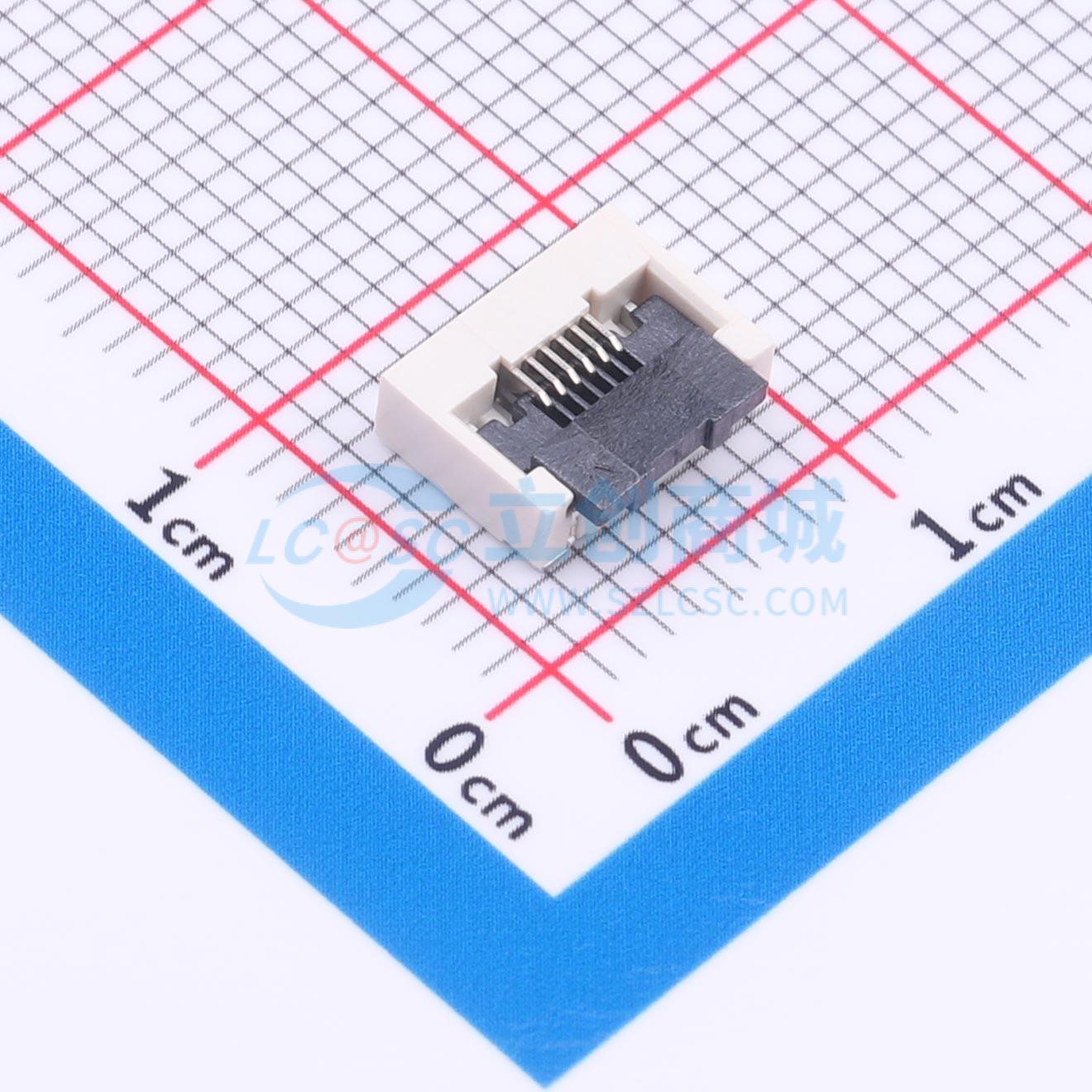

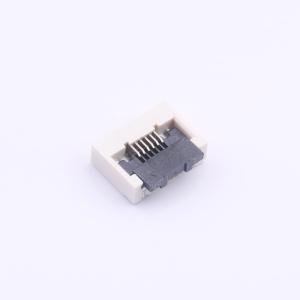

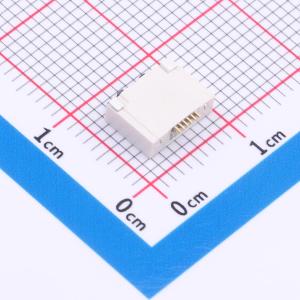

ZX-FC05-FWK-H255-6P
翻盖式 P数:6P 间距:0.5mm
SMT扩展库SMT补贴嘉立创PCB免费打样
私有库下单最高享92折
- 描述
- SMD,P=0.5mm,卧贴
- 品牌名称
- Megastar(兆星)
- 商品型号
- ZX-FC05-FWK-H255-6P
- 商品编号
- C53360688
- 商品封装
- SMD,P=0.5mm,卧贴
- 包装方式
- 编带
- 商品毛重
- 0.281667克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | FFC/FPC连接器 | |
| 锁定特性 | 翻盖式 | |
| 触点数量 | 6P | |
| 间距 | 0.5mm | |
| 安装方式 | 卧贴 |
| 属性 | 参数值 | |
|---|---|---|
| 板上高度 | 2.55mm | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 50V | |
| 额定电流 | 500mA |
