温馨提醒：图片仅供参考，商品以实物为准

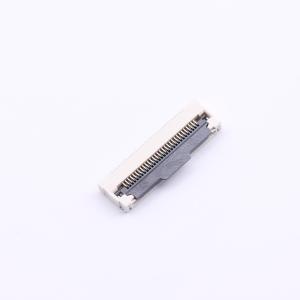

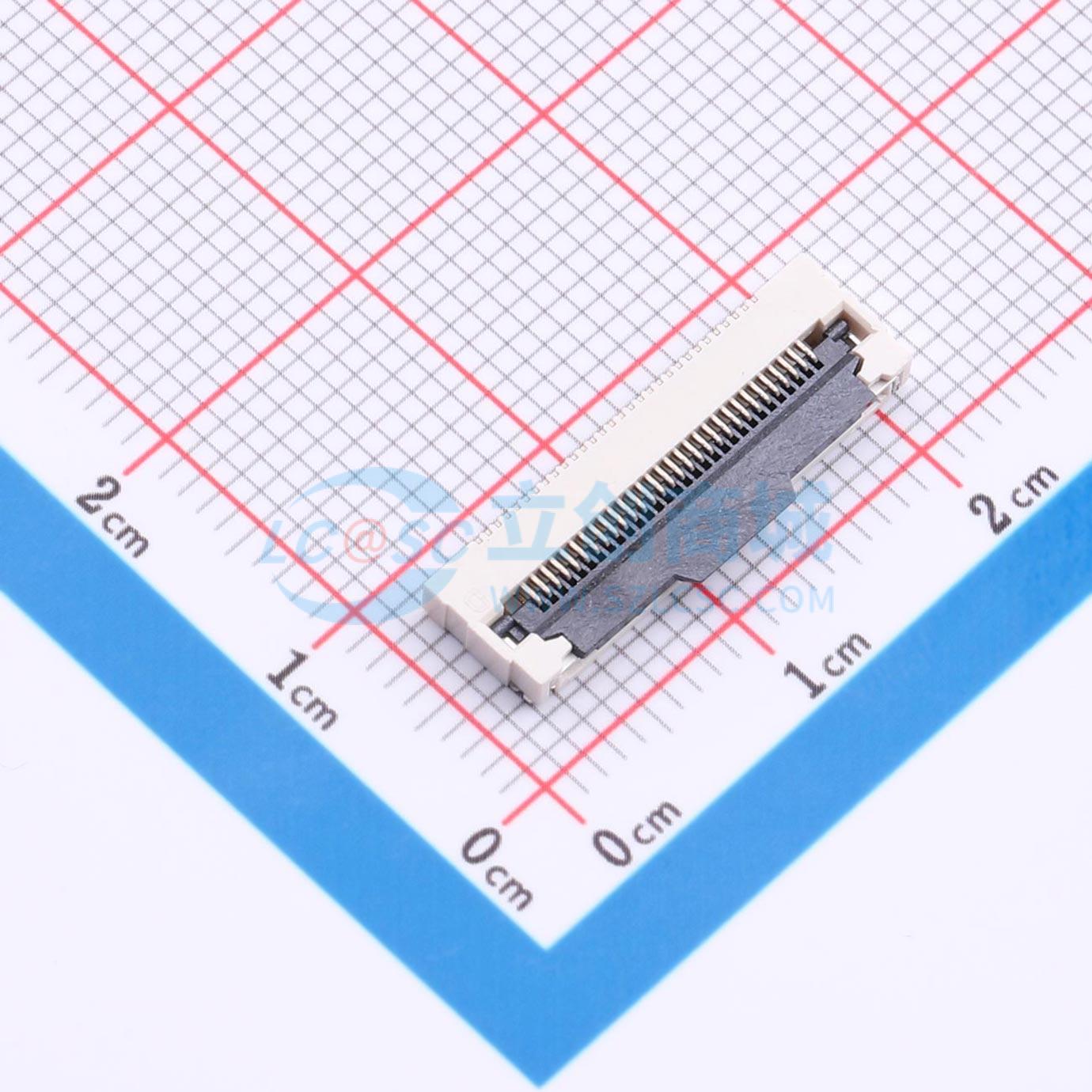

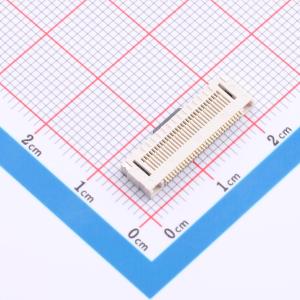

FC-05G30P21H22
翻盖式 P数:30P 间距:0.5mm
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 0.5间距 H2.2 前翻盖式带扣/30P/点镀金
- 品牌名称
- BXCONN(宝讯)
- 商品型号
- FC-05G30P21H22
- 商品编号
- C53340422
- 商品封装
- SMD,P=0.5mm,卧贴
- 包装方式
- 编带
- 商品毛重
- 0.580667克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | FFC/FPC连接器 | |
| 锁定特性 | 翻盖式 | |
| 触点数量 | 30P | |
| 间距 | 0.5mm | |
| 安装方式 | 卧贴 |
| 属性 | 参数值 | |
|---|---|---|
| 触头材质 | 磷铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 50V | |
| 额定电流 | 500mA |
商品特性
- 塑件表面应光洁、无毛边、无明显收缩、缺陷、裂纹等现象
- 温度范围：-25°C ~ 85°C
- 额定电压：50V/DC
- 额定电流：0.5A/AC
- 接触电阻：≤0.03Ω
- 绝缘电阻：≥100MΩ
