温馨提醒：图片仅供参考，商品以实物为准

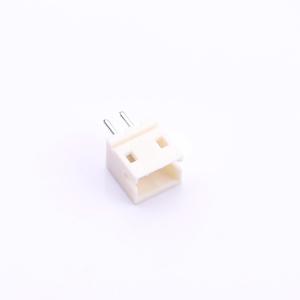

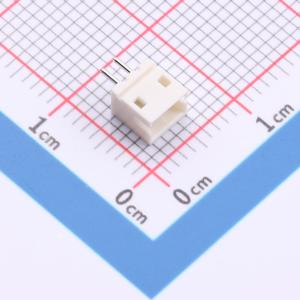

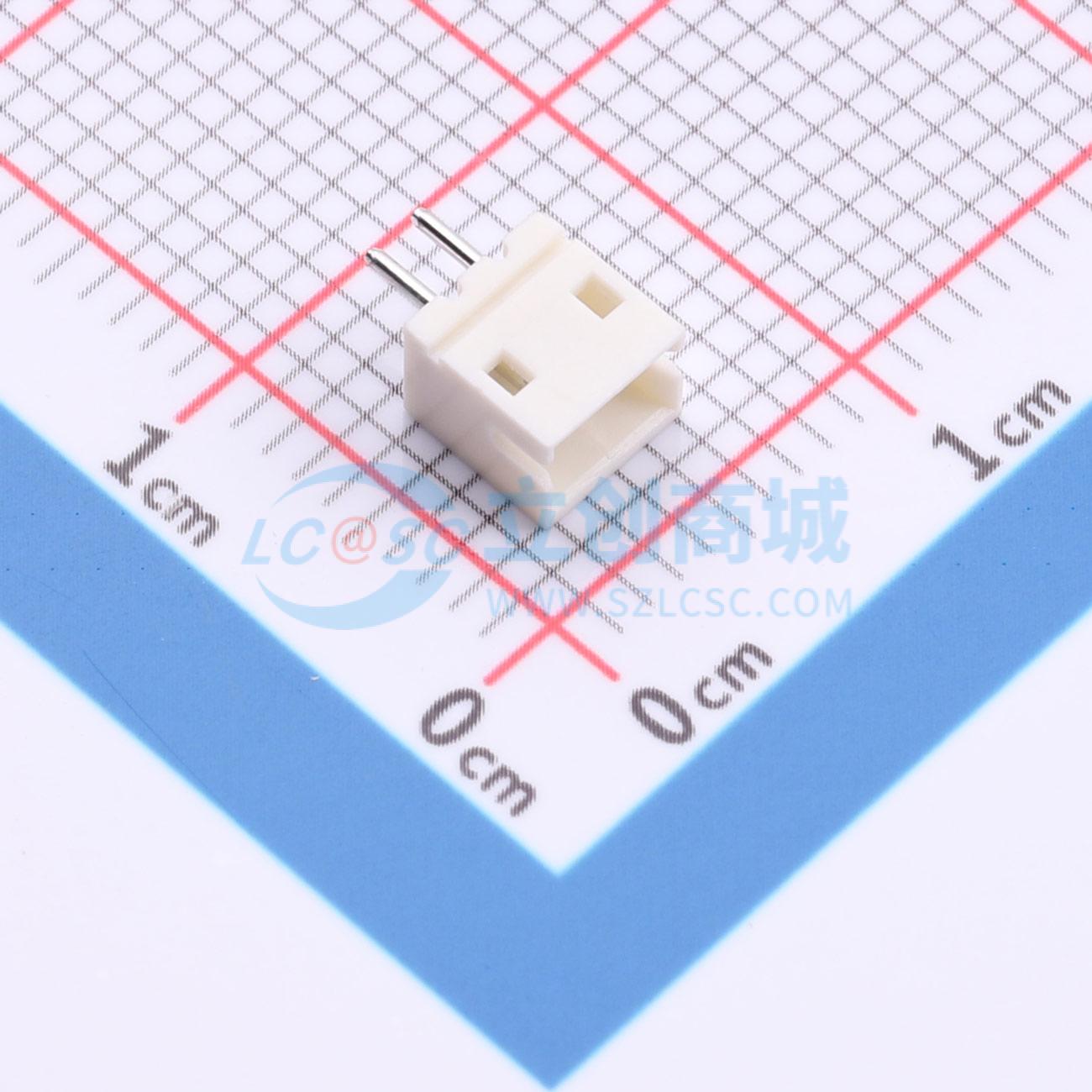

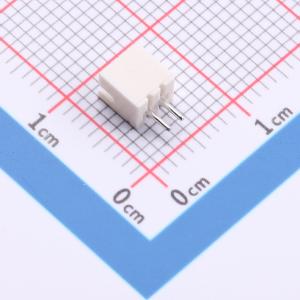

JXT-ZH1.5-2PZZ
1x2P 间距:1.5mm 直插 系列:ZH
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- ZH1.5mm 1x2P 直插
- 品牌名称
- JXTCONN(聚兴泰)
- 商品型号
- JXT-ZH1.5-2PZZ
- 商品编号
- C53207525
- 商品封装
- 插件,P=1.5mm
- 包装方式
- 袋装
- 商品毛重
- 0.08155克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x2P | |
| 间距 | 1.5mm | |
| 安装方式 | 直插 | |
| 参考系列 | ZH | |
| 总PIN数 | 2P | |
| 排数 | 1 | |
| 每排PIN数 | 2 | |
| 额定电流 | 2A | |
| 触头材质 | 黄铜 |
| 属性 | 参数值 | |
|---|---|---|
| 触头镀层 | 锡 | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 250V | |
| 塑料材质 | PA66 | |
| 阻燃等级 | UL94V-0 | |
| 颜色 | 米色 | |
| Z轴-板上高度 | 4.55mm | |
| X轴-板上底边长度(间距线) | 4.5mm | |
| Y轴-板上底边宽度 | 3.7mm |
商品概述
- 塑件材料为PA66(UL - 94V - O)
- 接触件为黄铜镀锡
- 接触电阻 ≤ 10mΩ
- 绝缘电阻 ≥ 100MΩ
- 额定电压为250V AC/DC
- 额定电流为2.0A AC/DC
- 耐压能承受1000V AC/分钟
- 工作温度为 - 25~+85°C
- 可焊性试验要求浸锡面积 ≥ 95%，温度235±5°C，时间2.5±0.5秒
- 铅和镉等六大有害物质含量要符合环保要求
