温馨提醒：图片仅供参考，商品以实物为准

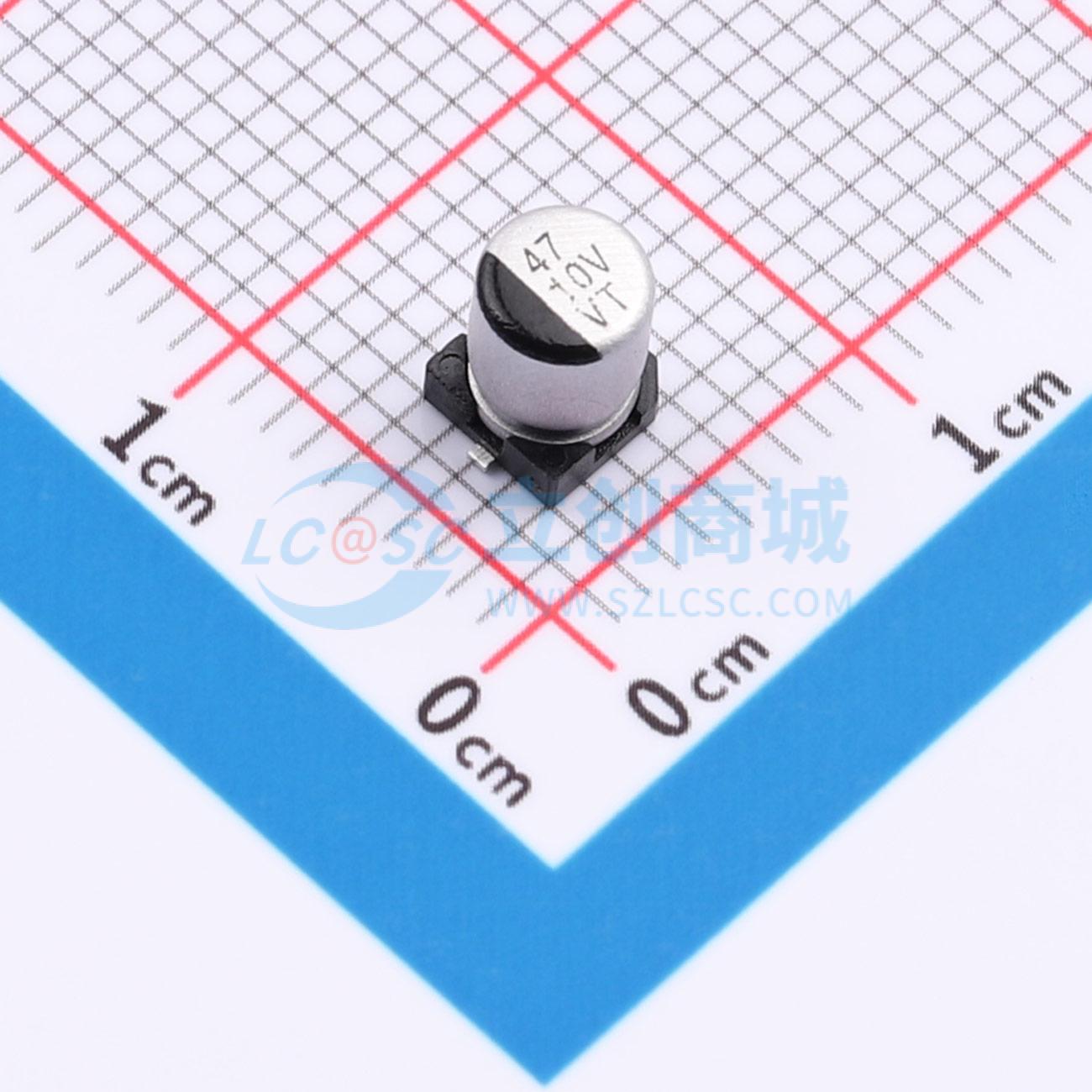

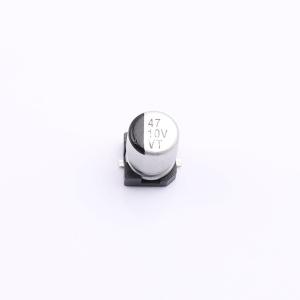

EFVH010ADA470M0454-VT
47uF ±20% 10V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 贴片铝电解电容
- 品牌名称
- FOLLON(富隆电子)
- 商品型号
- EFVH010ADA470M0454-VT
- 商品编号
- C53206941
- 商品封装
- SMD,D4xL5.4mm
- 包装方式
- 编带
- 商品毛重
- 0.2191克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 贴片型铝电解电容 | |
| 容值 | 47uF | |
| 精度 | ±20% | |
| 额定电压 | 10V | |
| 纹波电流 | 26mA@120Hz |
| 属性 | 参数值 | |
|---|---|---|
| 电容体直径 | 4mm | |
| 电容体长度 | 5.4mm | |
| 工作寿命 | 2000hrs@105℃ | |
| 工作温度 | -55℃~+105℃ |
