温馨提醒：图片仅供参考，商品以实物为准

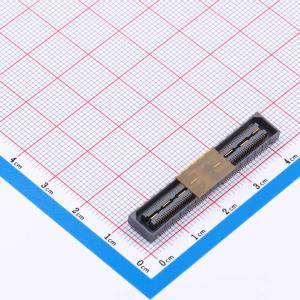

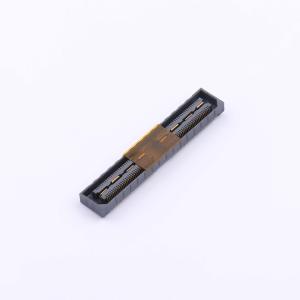

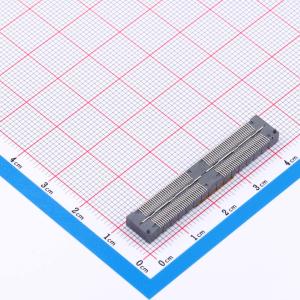

LXW232-4120S-B3R-02
PIN:120P 间距:0.5mm 立贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 高速板对板连接器0.5mm 2*60P 单高H3.25 母座 半金锡10u 差分
- 品牌名称
- LXWCONN(连兴旺电子)
- 商品型号
- LXW232-4120S-B3R-02
- 商品编号
- C53108477
- 商品封装
- SMD,P=0.5mm
- 包装方式
- 编带
- 商品毛重
- 1.778克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 板对板与背板连接器 | |
| PIN总数 | 120P | |
| 间距 | 0.5mm | |
| 安装方式 | 立贴 | |
| 排数 | 2 |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 2A | |
| 连接方式 | 槽型对接 | |
| 触头材质 | 磷青铜 | |
| 触头镀层 | 金 |
