温馨提醒：图片仅供参考，商品以实物为准

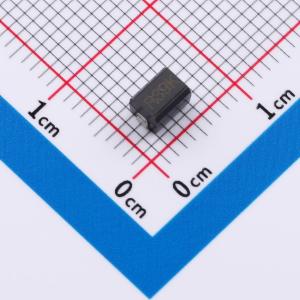

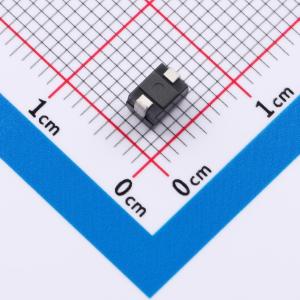

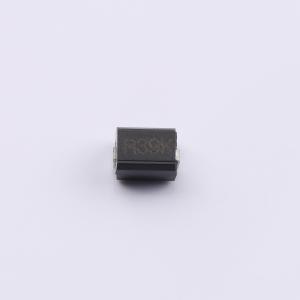

YSCM453232-R39K
YSCM453232-R39K
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- YJYCOIN(益嘉源)
- 商品型号
- YSCM453232-R39K
- 商品编号
- C52259873
- 商品封装
- 1812
- 包装方式
- 编带
- 商品毛重
- 0.2318克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 贴片电感 | |
| 电感值 | 390nH | |
| 精度 | ±10% | |
| 额定电流 | 575mA |
| 属性 | 参数值 | |
|---|---|---|
| 直流电阻(DCR) | 300mΩ | |
| 品质因数 | 40@25.2MHz | |
| 自谐振频率 | 390MHz | |
| 类型 | 绕线片式电感 |
