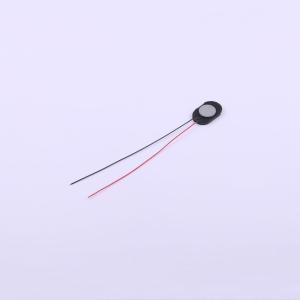

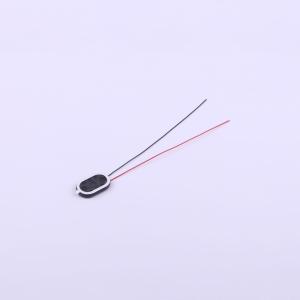

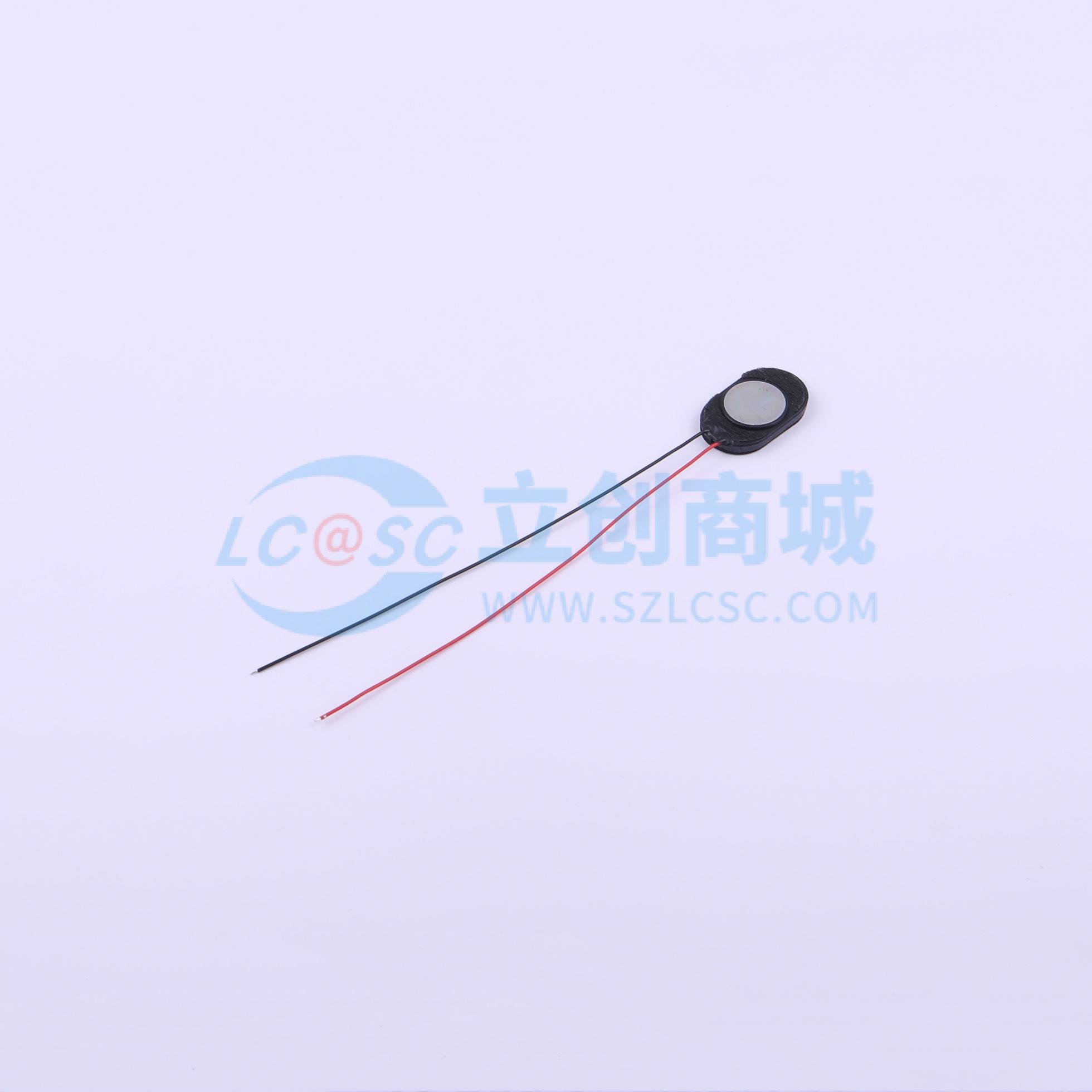

GSPK241505PN-8R0.8W-L100
塑壳内磁喇叭
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- L24*W15*H5mm 跑道形 8欧 0.8W 85+/-3DB 焊线UL1571/28# L50-100mm
- 品牌名称
- INGHAi(赢海)
- 商品型号
- GSPK241505PN-8R0.8W-L100
- 商品编号
- C530548
- 包装方式
- 托盘
- 商品毛重
- 1.91克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 扬声器/喇叭 | |
| 构造类型 | 电磁式 | |
| 频率范围 | - | |
| 阻抗 | 8Ω | |
| 谐振频率 | 800Hz | |
| 失真(THD) | 5% | |
| 额定功率 | 800mW | |
| 声压(SPL) | 115dB |
| 属性 | 参数值 | |
|---|---|---|
| 直径(φD) | - | |
| 长度 | 24mm | |
| 宽度 | 15mm | |
| 高度 | 5mm | |
| 工作温度 | -40℃~+85℃ | |
| 安装方式 | 自带引线 | |
| 脚间距 | - | |
| 最大功率 | 1W |
