温馨提醒：图片仅供参考，商品以实物为准

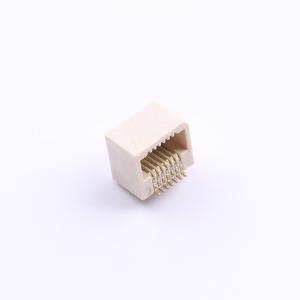

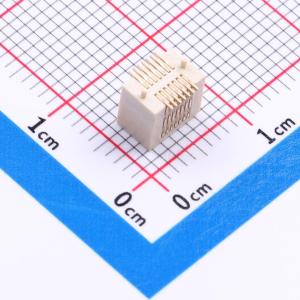

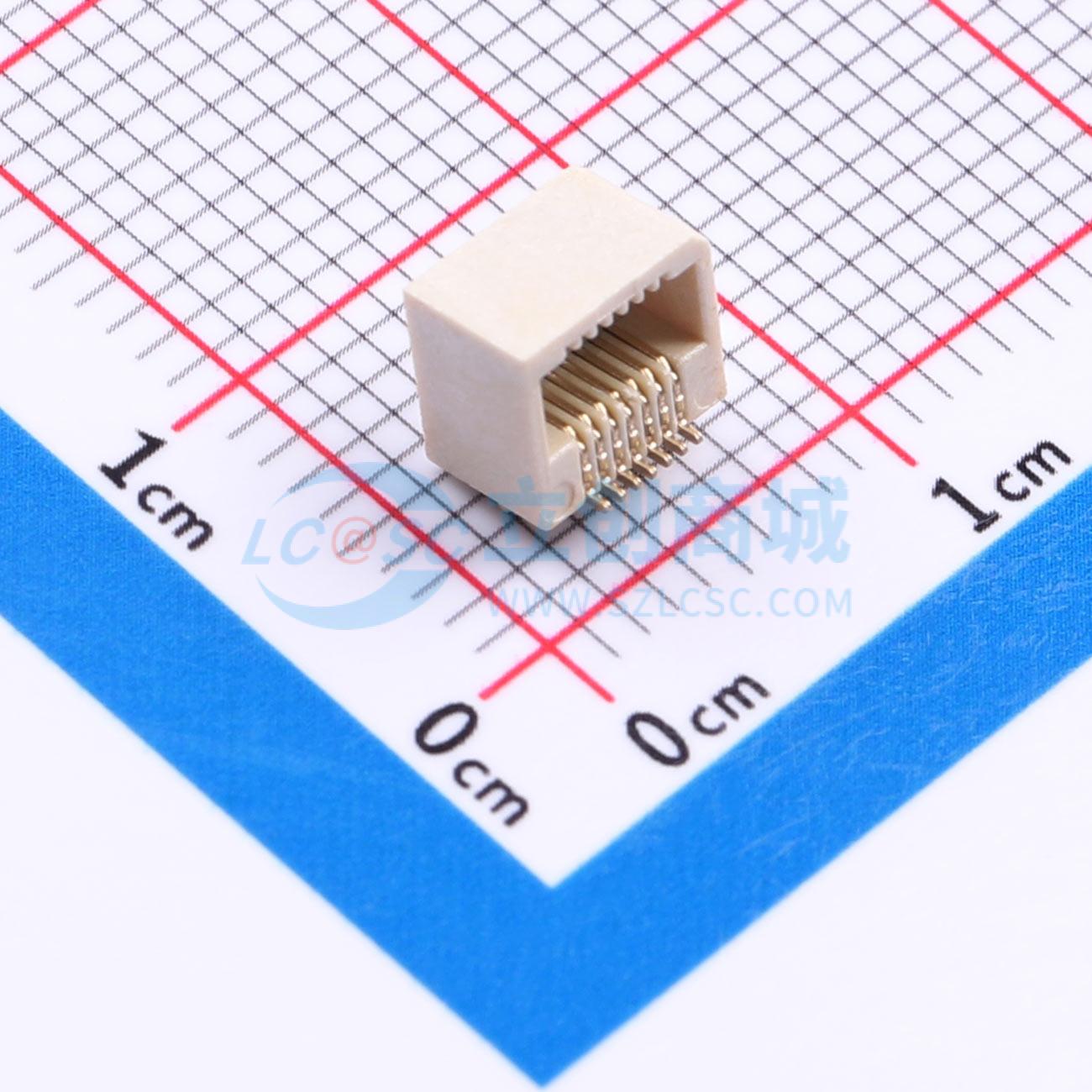

HC-PBB05-1-14-F-S-H5.4-G1-R-P-06
PIN:14P 间距:0.5mm 卧贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- HCTL(华灿天禄)
- 商品型号
- HC-PBB05-1-14-F-S-H5.4-G1-R-P-06
- 商品编号
- C51966833
- 商品封装
- SMD,P=0.5mm
- 包装方式
- 编带
- 商品毛重
- 0.346克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 板对板与背板连接器 | |
| 总PIN数 | 14P | |
| 间距 | 0.5mm | |
| 公母 | 母 | |
| 系统配合高度 | 5mm | |
| 安装方式 | 卧贴 | |
| 排数 | 2 |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 500mA | |
| 额定电压 | 60V | |
| 附加特征 | 带柱 | |
| 连接方式 | 槽型对接 | |
| 触头材质 | 磷青铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -25℃~+85℃ |
