温馨提醒：图片仅供参考，商品以实物为准

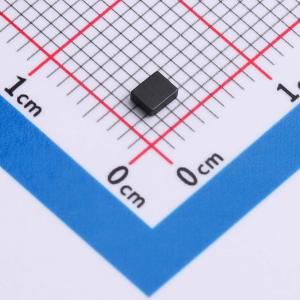

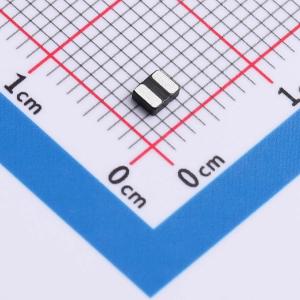

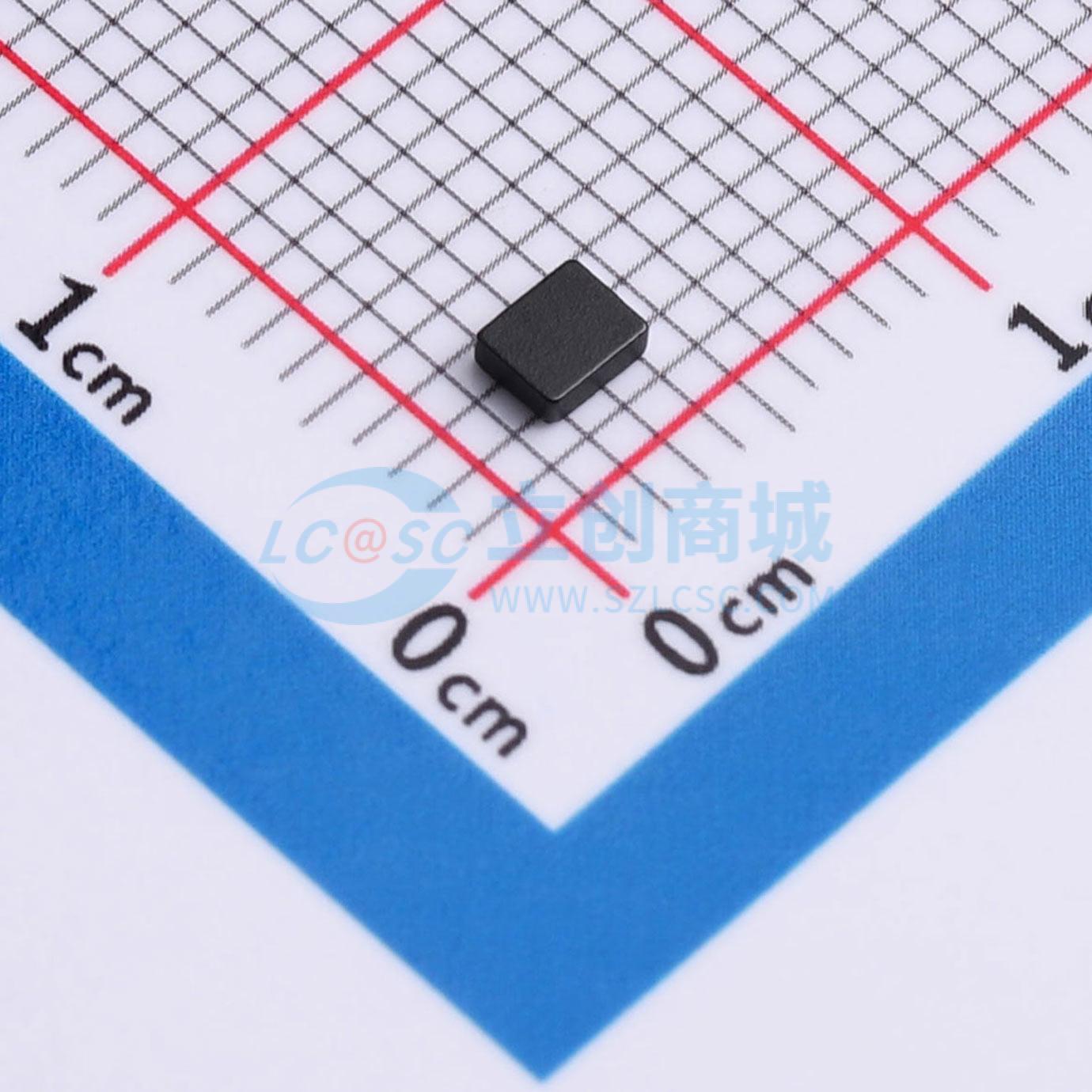

MHT252010SG-1R5M H
1.5uH ±20% 3.4A
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 1008,小型化一体成型T-CORE绕线工艺，小体积.扁平线工艺
- 品牌名称
- CND-tek(磁联达)
- 商品型号
- MHT252010SG-1R5M H
- 商品编号
- C49435048
- 商品封装
- 1008
- 包装方式
- 编带
- 商品毛重
- 1克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 一体成型电感 | |
| 电感值 | 1.5uH | |
| 精度 | ±20% |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 3.2A | |
| 饱和电流(Isat) | 3.4A | |
| 直流电阻(DCR) | 51mΩ |
