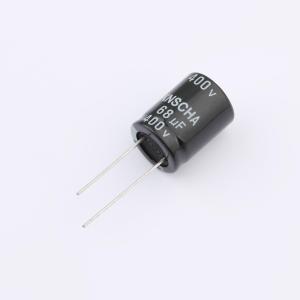

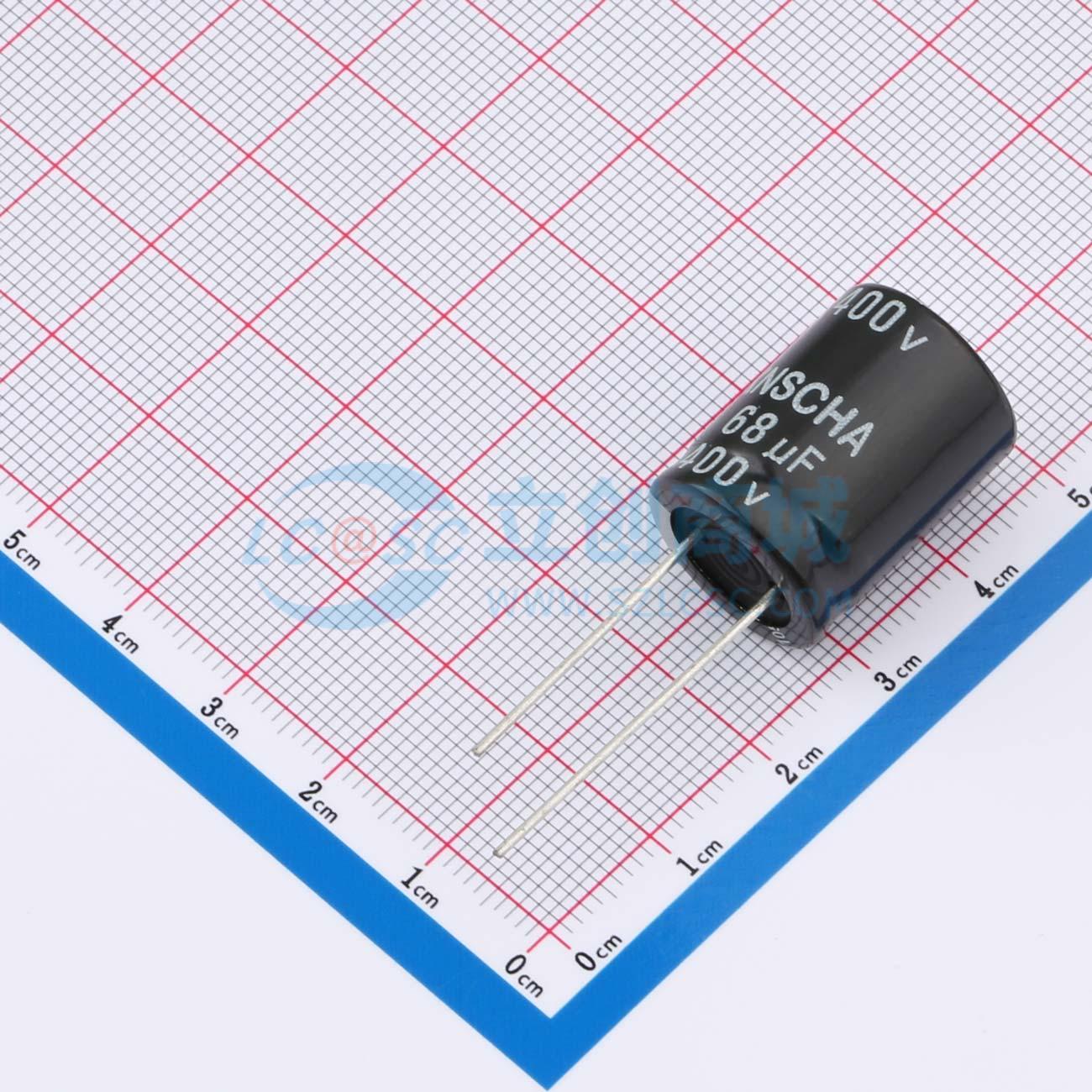

DHC400M686M204S1AA
68uF ±20% 400V
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- SHC Series 105℃ 3000 Hours 一般品
- 品牌名称
- KNSCHA(科尼盛)
- 商品型号
- DHC400M686M204S1AA
- 商品编号
- C49309220
- 商品封装
- 插件,D16xL20mm
- 包装方式
- 袋装
- 商品毛重
- 7.591克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 直插铝电解电容 | |
| 容值 | 68uF | |
| 精度 | ±20% | |
| 额定电压 | 400V | |
| 纹波电流 | 410mA@120Hz |
| 属性 | 参数值 | |
|---|---|---|
| 脚间距 | 7.5mm | |
| 电容体直径 | 16mm | |
| 电容体长度 | 20mm | |
| 工作寿命 | 2000hrs@105℃ | |
| 工作温度 | -40℃~+105℃ |
