温馨提醒：图片仅供参考，商品以实物为准

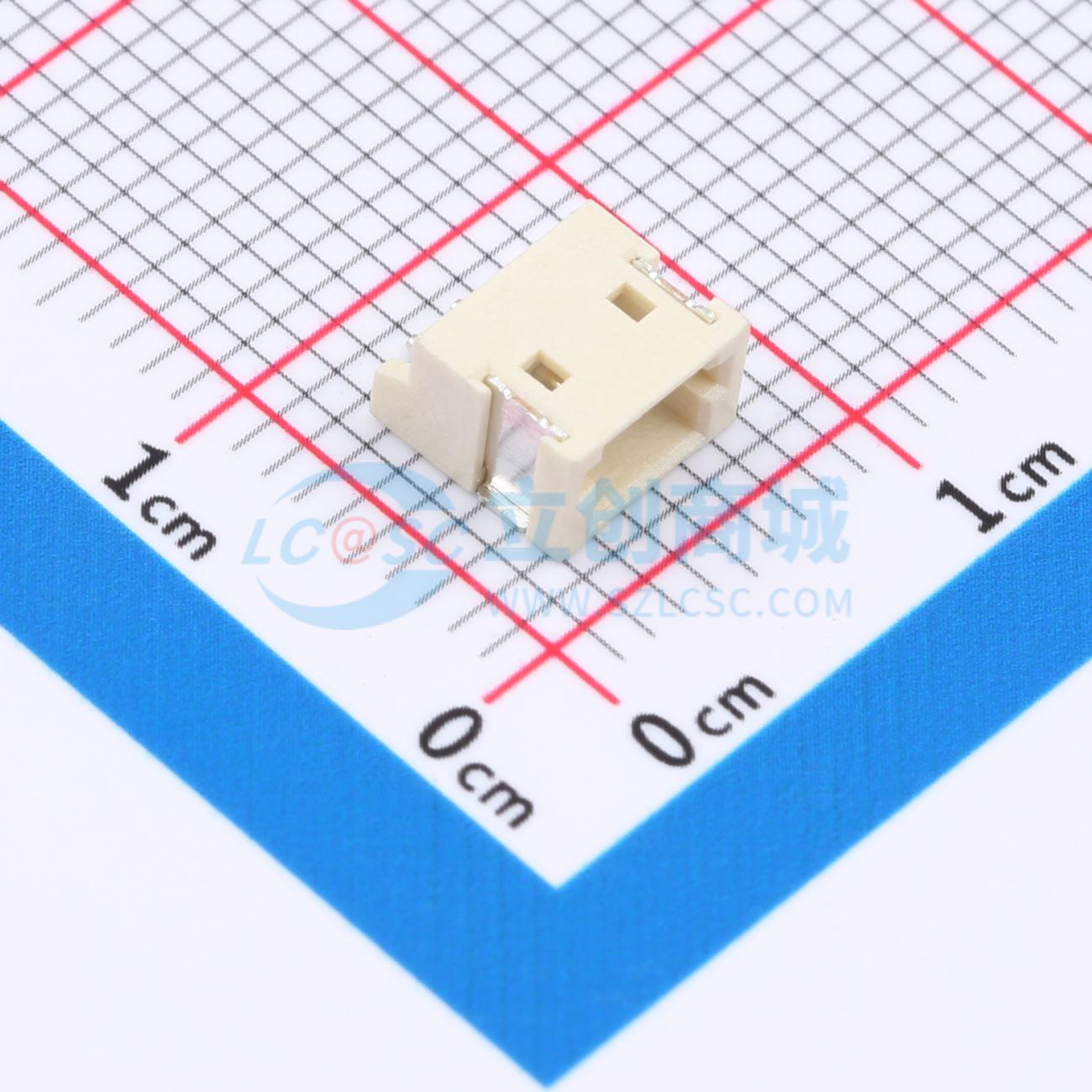

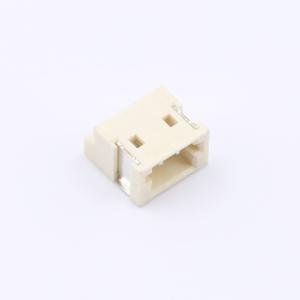

A1501AWR-02-F2MA-R
1x2P 1.5mm 卧贴
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 1.5mm,Pitch,W/B,侧装,SMT
- 品牌名称
- jkun(健坤)
- 商品型号
- A1501AWR-02-F2MA-R
- 商品编号
- C49296428
- 商品封装
- SMD,P=1.5mm,卧贴
- 包装方式
- 编带
- 商品毛重
- 0.4115克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x2P | |
| 间距 | 1.5mm | |
| 安装方式 | 卧贴 | |
| 总PIN数 | 2P | |
| 排数 | 1 | |
| 每排PIN数 | 2 | |
| 额定电流 | 1A |
| 属性 | 参数值 | |
|---|---|---|
| 触头材质 | 磷青铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -25℃~+105℃ | |
| 额定电压 | 125V | |
| 塑料材质 | LCP | |
| 阻燃等级 | UL94V-0 | |
| Z轴-板上高度 | 3.8mm | |
| Y轴-板上底边宽度 | 6.7mm |
