- 引脚图
- 焊盘图
温馨提醒：图片仅供参考，商品以实物为准

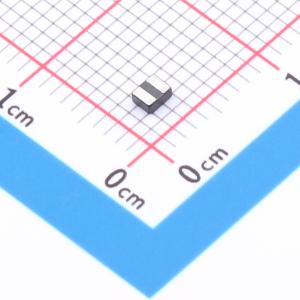

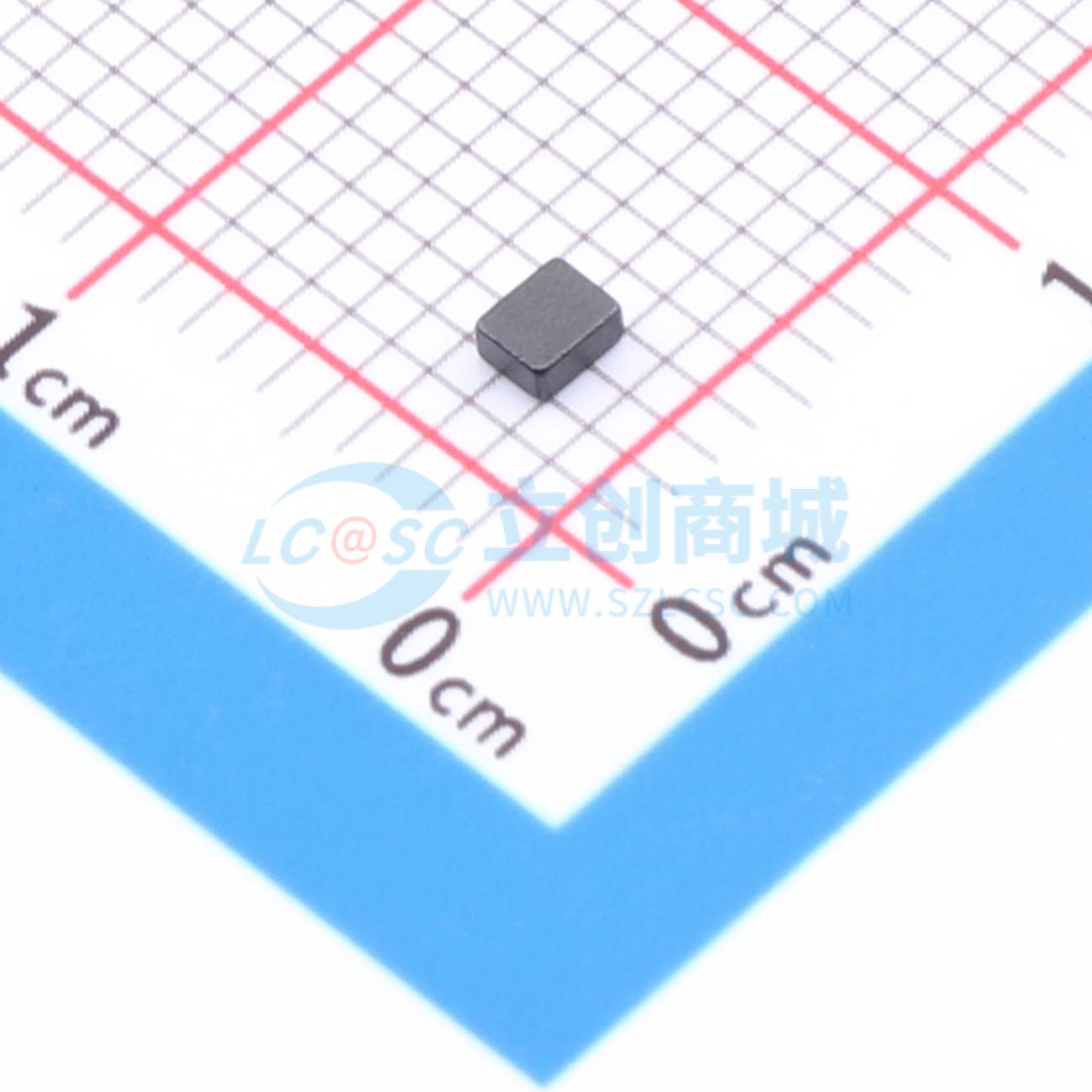

GDIM201610D-R47MTF-19R
0.47uH±20% 6.0A
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 小型化一体成型T-core,扁线,0.47uH±20%,2.0*1.6*1.0mm,温升电流(IRMS):6.0A Max,饱和电流(ISAT):6.5A Max,DCR:23mΩ Max
- 品牌名称
- GUDIAN(固电)
- 商品型号
- GDIM201610D-R47MTF-19R
- 商品编号
- C49237844
- 商品封装
- 0806
- 包装方式
- 编带
- 商品毛重
- 0.039833克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 470nH | |
| 精度 | ±20% |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 6A | |
| 饱和电流(Isat) | 6.5A | |
| 直流电阻(DCR) | 19mΩ |
