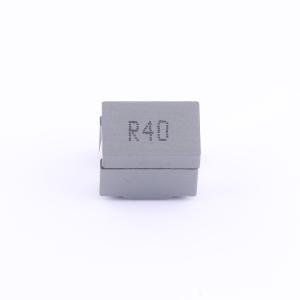

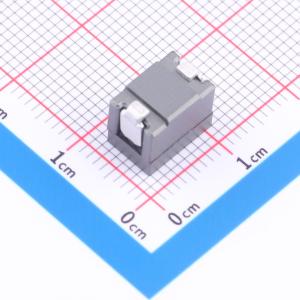

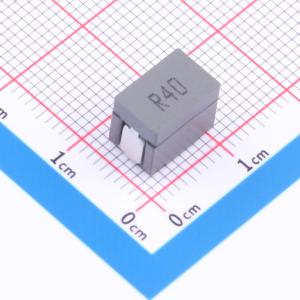

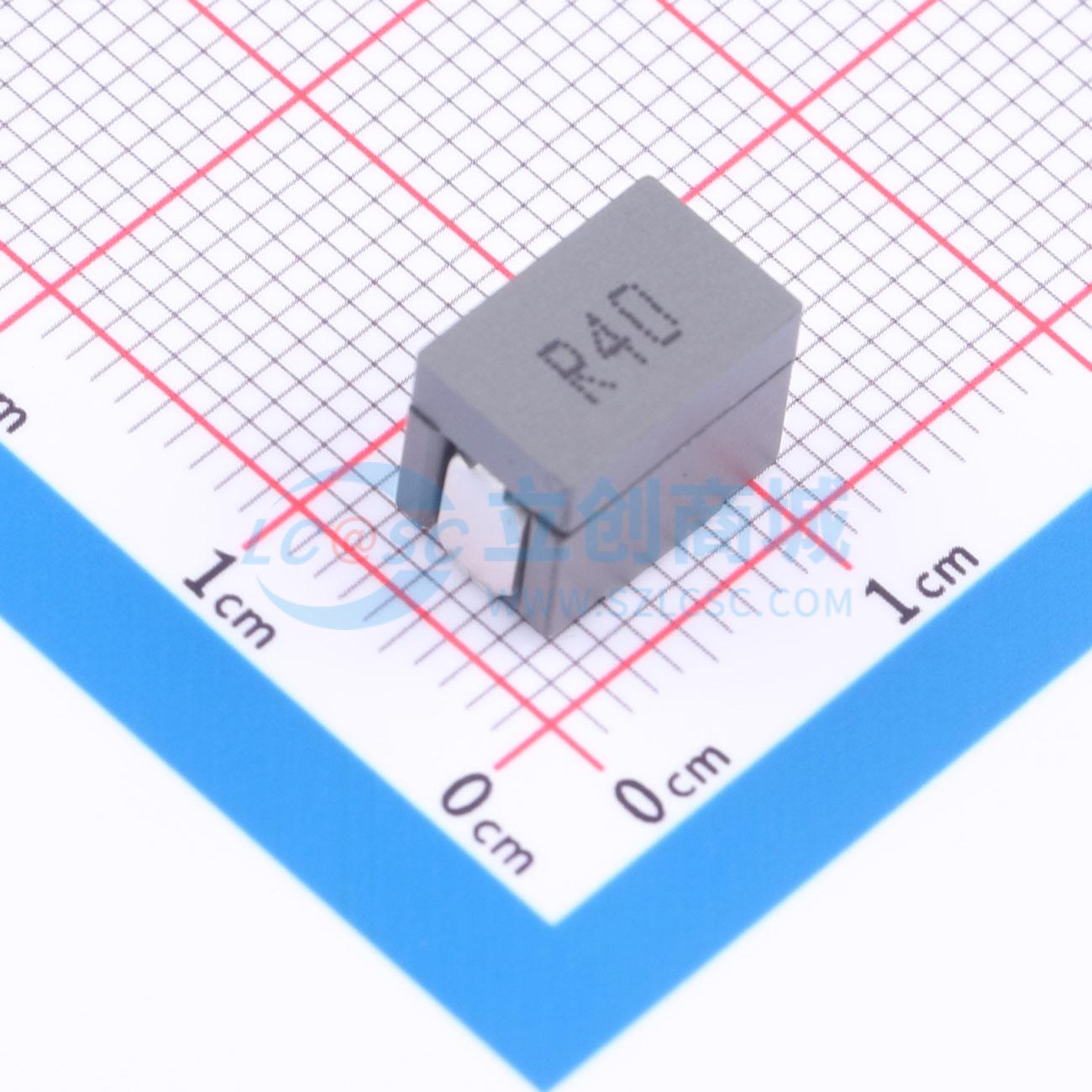

GDSIHC106580-R40M-R29
400nH±20% 21A
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- SMD / 400nH±20% / I-sat21A / I-rms42A / DCR0.29±7%mΩ
- 品牌名称
- GUDIAN(固电)
- 商品型号
- GDSIHC106580-R40M-R29
- 商品编号
- C49208925
- 商品封装
- SMD,9.7x6.5mm
- 包装方式
- 编带
- 商品毛重
- 1克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 400nH | |
| 精度 | ±20% |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 42A | |
| 饱和电流(Isat) | 21A | |
| 直流电阻(DCR) | 0.29mΩ |
