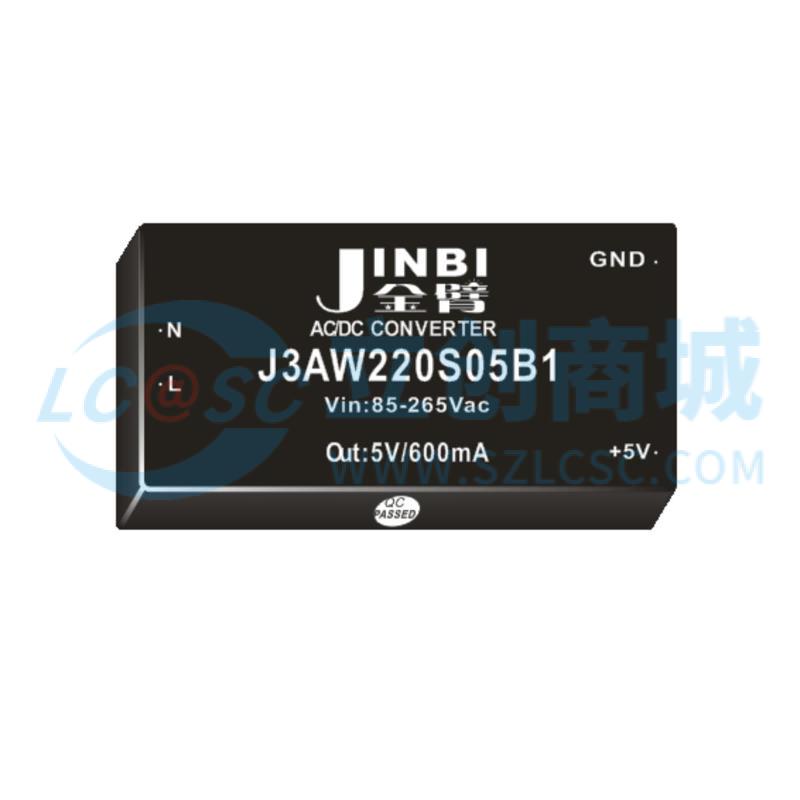

JINBI(金臂) 3w,AC-DC,单路5V输出,2500V隔离 J3AW220S05B1

工业品

价格：￥32.31价格含税（税率13%）

品牌名称: JINBI(金臂)
商品型号: J3AW220S05B1-AC
商品编号: C46961695
商品毛重: 1克(g)

广东仓0

购买数量

个

(1个/盒，最小起订量1个，递增量：1)

总价金额：

￥0.00

近期成交0单

商品参数
商品详情
规格书

商品参数

参数完善中

商品详情

产品特点 FEATURES

1 AC-DC conversion: Supports wide input voltage range of AC85-264V, suitable for global power grids; provides stable DC5V output with 0.6A current (rated power 3W)

2 High isolation performance: 2500V AC isolation between input and output, effectively preventing interference and ensuring operational safety

3 Comprehensive protection functions: Equipped with overvoltage protection (OVP), overcurrent protection (OCP), short circuit protection (SCP), and over temperature protection (OTP) to extend device lifespan

4 High efficiency: Conversion efficiency up to 87%, reducing energy loss and heat generation

5 Compact size: Dimensions of 22.5×12.5×6.5mm, ideal for space-constrained embedded applications

6 Easy installation: Through-hole mounting design, convenient for PCB integration

7 Compliance with standards: CE and RoHS certified, meeting international safety and environmental requirements

8 Low standby power consumption and high reliability, suitable for long-term continuous operation

使用场景 APPLICATIONS

1 Embedded electronic devices: Used in small sensors, IoT modules, portable electronics that require stable 5V DC power

2 Industrial control systems: Applied in PLC modules, industrial sensors, and automation equipment to provide isolated power supply

3 Consumer electronics: Power source for smart home devices, wearable gadgets, and small home appliances

4 Communication equipment: Suitable for low-power communication modules like Bluetooth, Wi-Fi, and Zigbee devices

5 Automotive electronics: Auxiliary power supply for in-car small devices (compatible with operating temperature range of -40~+85°C)

6 Medical instruments: Low-power medical devices that need isolated power to ensure user safety (subject to compliance with relevant medical standards)

注意事项 PRECAUTIONS

1 Installation: Ensure correct through-hole mounting on PCB; avoid reverse connection of input and output terminals

2 Operating environment: Use within the specified temperature range (-40~+85°C) and humidity range (20~90% RH non-condensing) to prevent performance degradation

3 Load limit: Do not exceed the rated output current (0.6A) or power (3W) to avoid triggering protection mechanisms or damaging the device

4 Safety operation: Avoid touching live parts during operation to prevent electric shock

5 Storage: Store in a dry, cool place away from direct sunlight and corrosive substances when not in use

6 Compliance: Follow CE and RoHS guidelines when integrating into products for international markets
