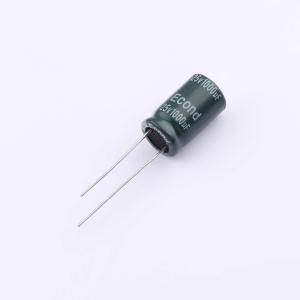

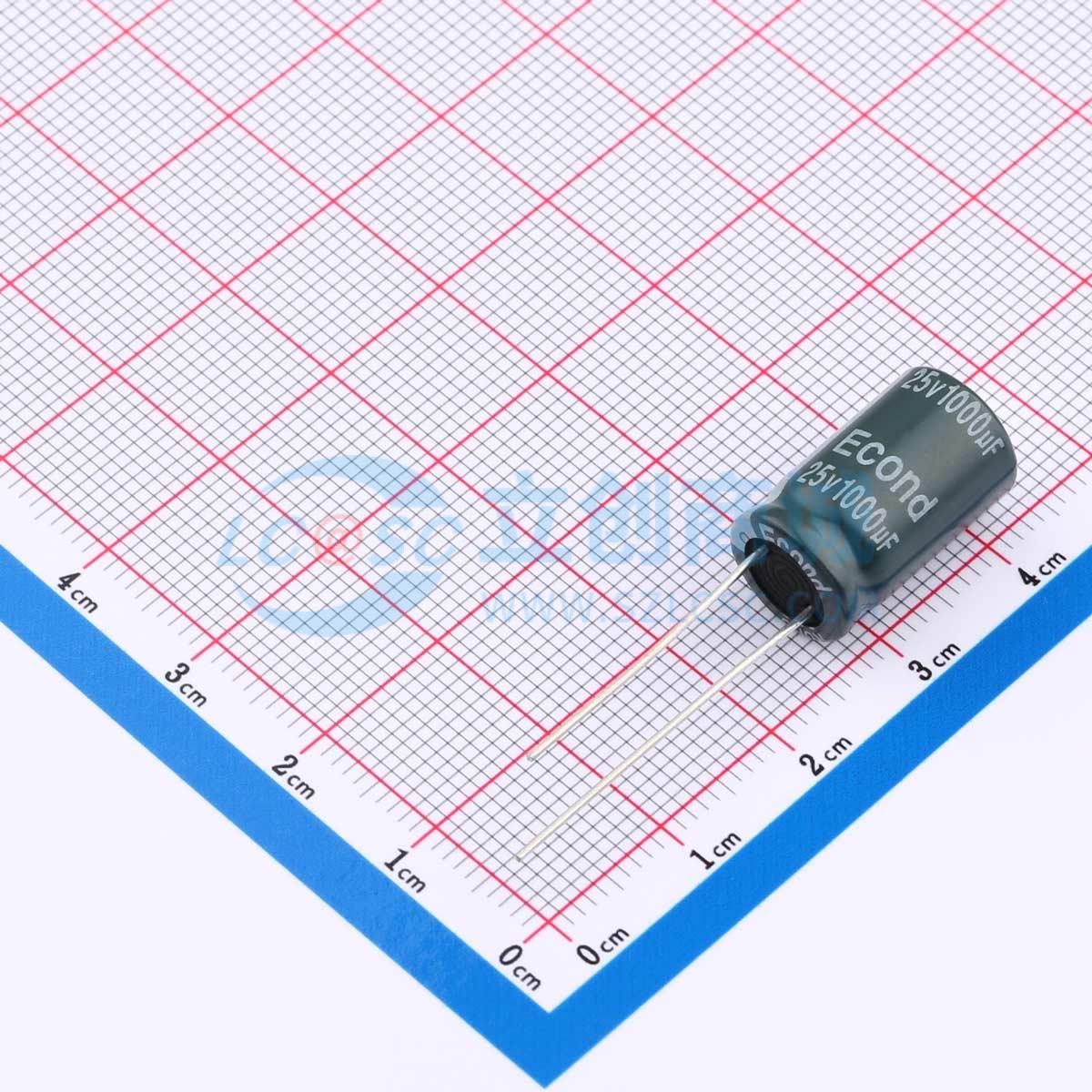

GF102M025G170B000
1000uF ±20% 25V
- 品牌名称
- Econd(米朗电子)
- 商品型号
- GF102M025G170B000
- 商品编号
- C46526959
- 商品封装
- 插件,D10xL17mm
- 包装方式
- 袋装
- 商品毛重
- 2.65克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 直插铝电解电容 | |
| 容值 | 1000uF | |
| 精度 | ±20% | |
| 额定电压 | 25V | |
| 纹波电流 | 1.4A@100KHz | |
| 等效串联电阻(ESR) | 45mΩ |
| 属性 | 参数值 | |
|---|---|---|
| 脚间距 | 5mm | |
| 电容体直径 | 10mm | |
| 电容体长度 | 16mm | |
| 工作寿命 | 3000hrs@105℃ | |
| 工作温度 | -40℃~+105℃ |
