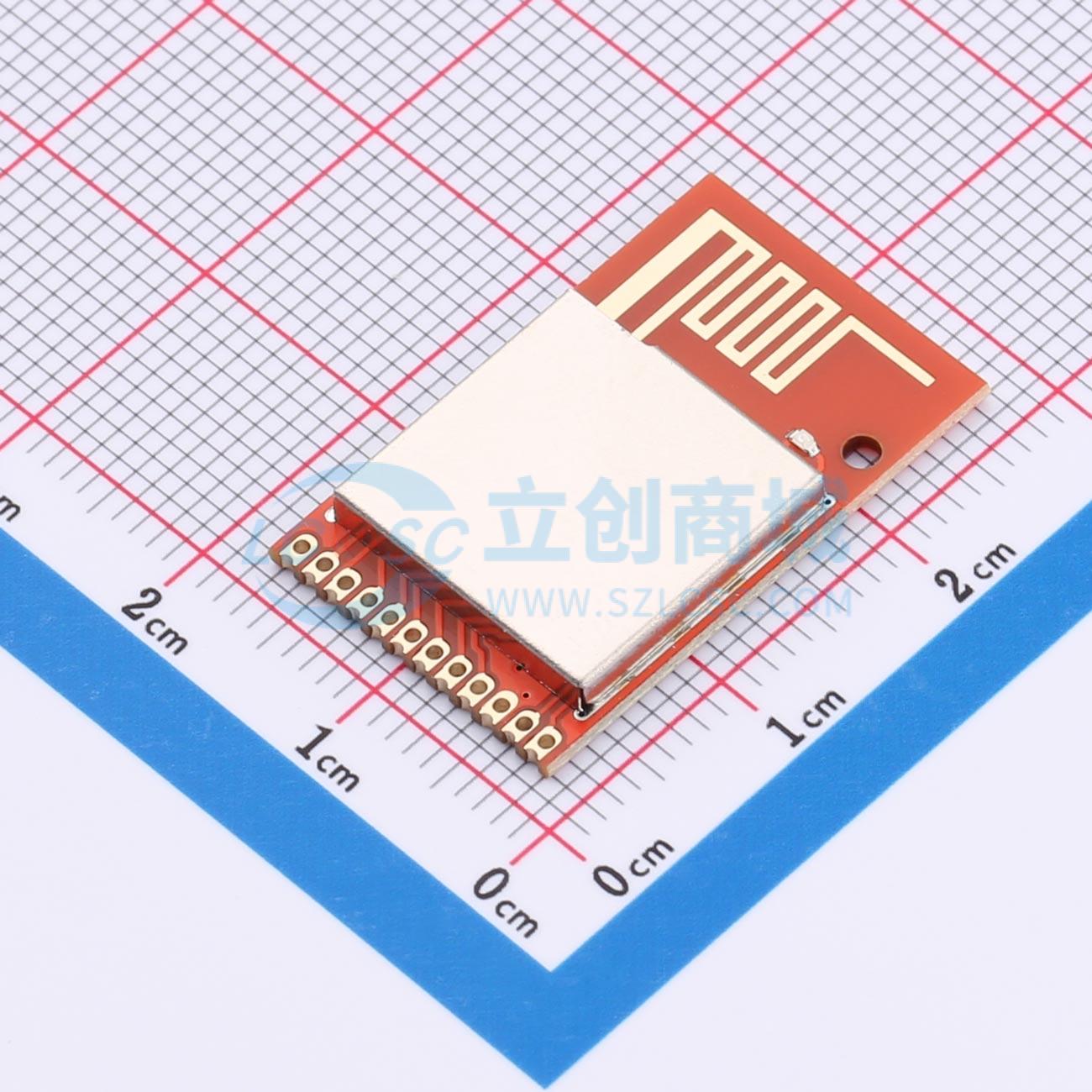

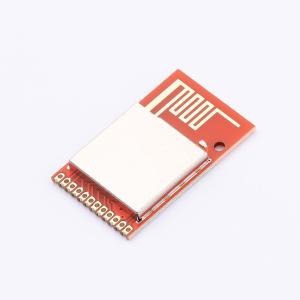

ling-TR7
2.4G无线串口透传开关量二合一模块
- 描述
- 2.4G可传开关量、可双向透传数据/128个频道可调/6路开关量/开关量模式接收电流可调(20mA、1mA、0.1mA)
- 品牌名称
- 蜂鸟无线
- 商品型号
- ling-TR7
- 商品编号
- C45359687
- 商品封装
- SMD
- 包装方式
- 托盘
- 商品毛重
- 1.64克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 射频模块 | |
| 模式 | 收发 | |
| 频率 | 2.483GHz | |
| 调制方式 | GFSK | |
| 发射功率 | 10dBm |
| 属性 | 参数值 | |
|---|---|---|
| 工作电压 | 2.2V~3.6V | |
| 接收电流 | 20mA | |
| 发送电流 | 25mA | |
| 通讯距离 | 50m | |
| 接收灵敏度 | -88dBm |
商品概述
灵-TR7 is a multi-functional wireless remote control module with integrated transceiver and a transmission line-of-sight of approximately 50 meters. The module can transmit switching signals and perform bidirectional transparent data transmission. It operates in the common 2.4GHz frequency band, allowing users to modify parameters such as frequency, output mode (MO), operating mode (WM), and power consumption mode (PC), providing flexible usage and significantly reducing the development cycle. The Ling-TR7 is suitable for various smart home and smart appliance products.
