温馨提醒：图片仅供参考，商品以实物为准
M12-S8A-GWDP9

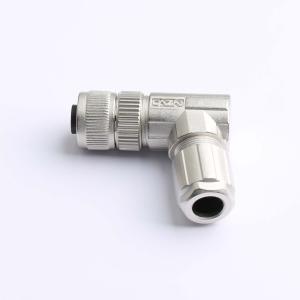

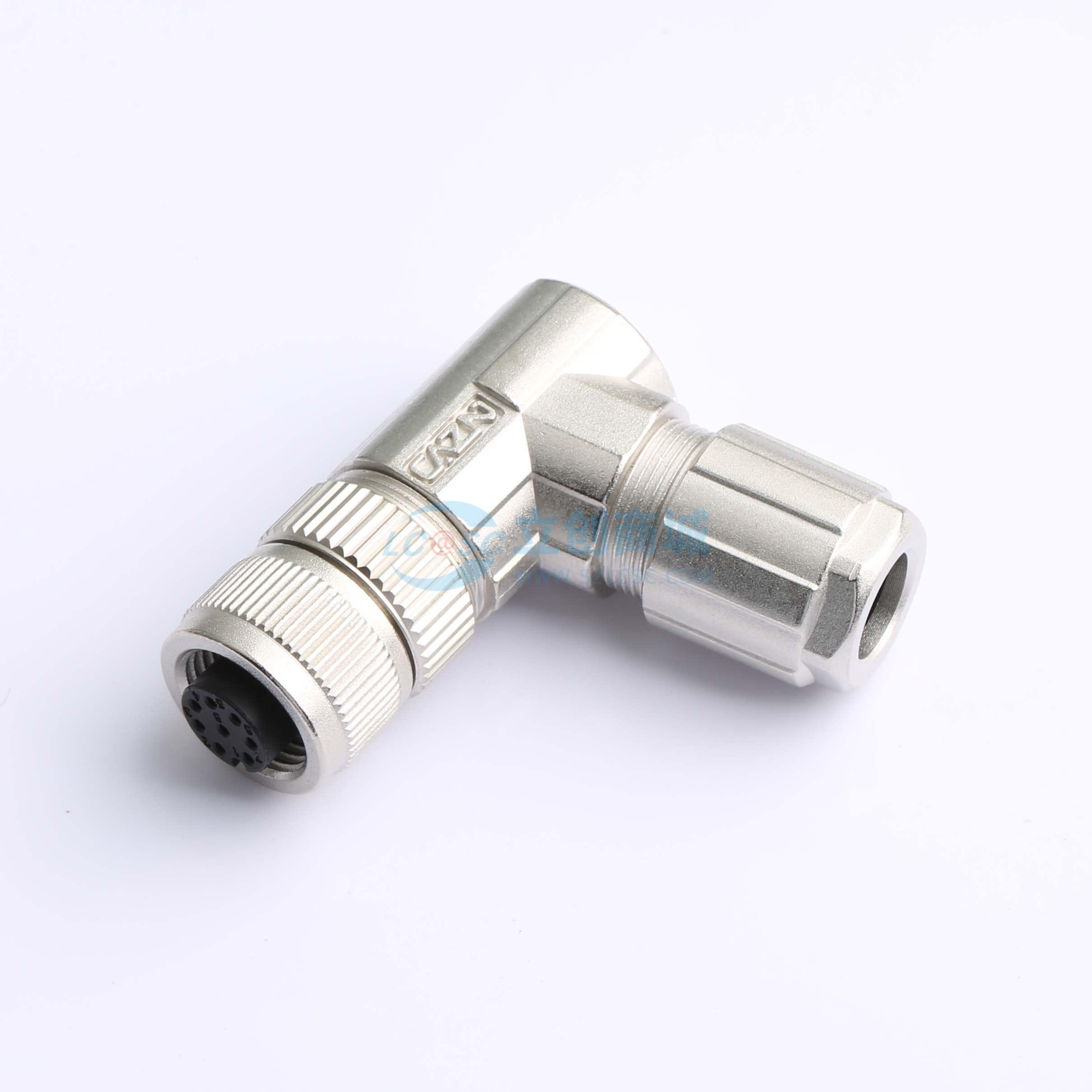

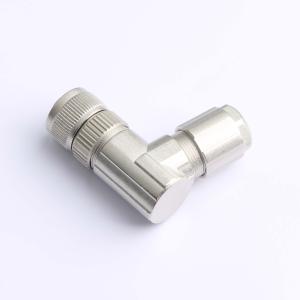

CAZN正成防水连接器M12弯式孔型金属组装航空插头8芯A编码焊线式PG9出线孔
- 描述
- CAZN正成防水连接器M12弯式孔型金属组装插头8芯A编码焊线式PG9出线孔
- 品牌名称
- CAZN(正成)
- 商品型号
- M12-S8A-GWDP9
- 商品编号
- C42931344
- 包装方式
- 袋装
- 商品毛重
- 52.38克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 圆形(线缆)连接器 | |
| 插口规格 | M12 | |
| 总PIN数 | 8P | |
| 公母 | 母 | |
| 角度 | 弯头 | |
| 编码 | A编码 |
| 属性 | 参数值 | |
|---|---|---|
| 防护等级 | IP67 | |
| 额定电流 | 2A | |
| 额定电压 | 30V | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 |
