温馨提醒：图片仅供参考，商品以实物为准

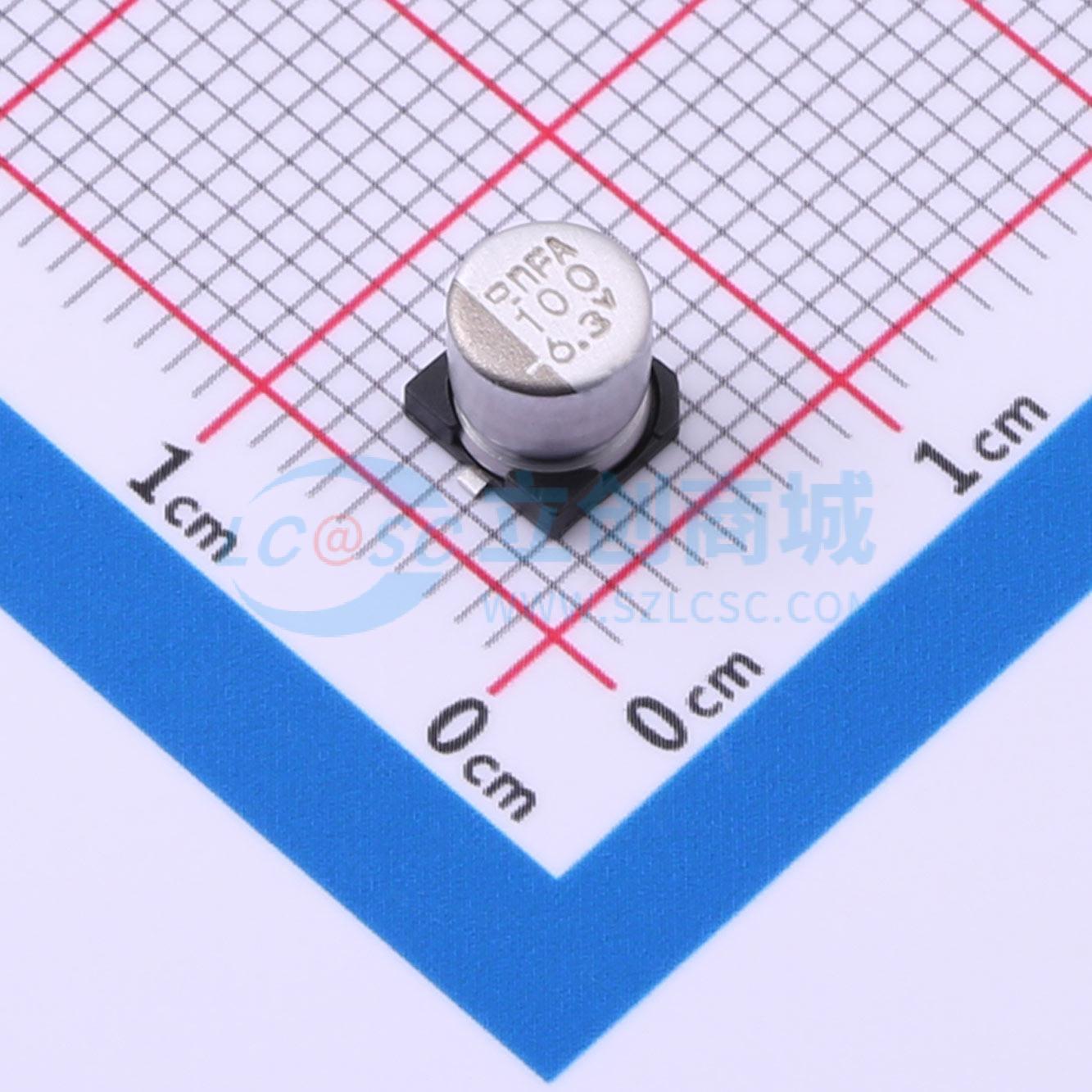

EMVA6R3ADA101ME55G
100uF ±20% 6.3V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- NCC(日本贵弥功)
- 商品型号
- EMVA6R3ADA101ME55G
- 商品编号
- C3829490
- 商品封装
- SMD,D5xL5.2mm
- 包装方式
- 编带
- 商品毛重
- 0.389克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 贴片型铝电解电容 | |
| 容值 | 100uF | |
| 精度 | ±20% | |
| 额定电压 | 6.3V | |
| 纹波电流 | 55mA@120Hz |
| 属性 | 参数值 | |
|---|---|---|
| 等效串联电阻(ESR) | - | |
| 电容体直径 | 5mm | |
| 电容体长度 | 5.2mm | |
| 工作寿命 | 2000hrs@85℃ | |
| 工作温度 | -40℃~+85℃ |
