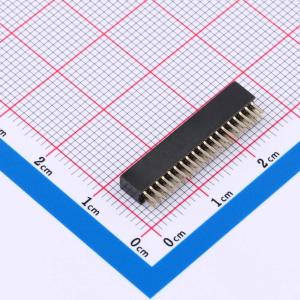

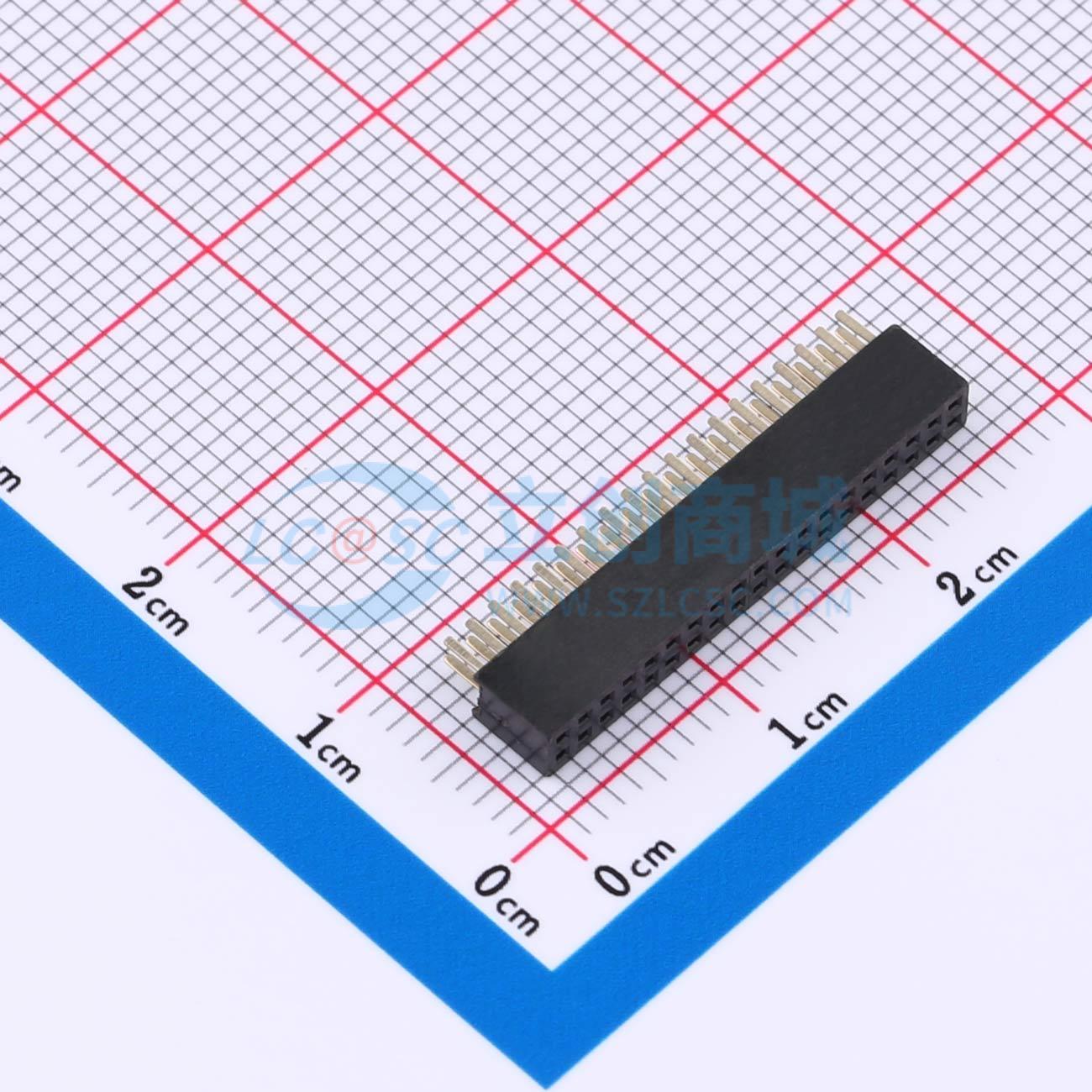

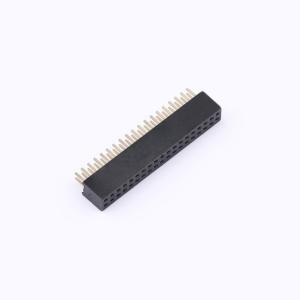

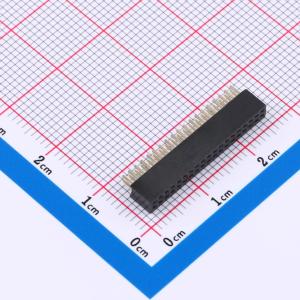

B127M01-0B38P51-H43C24
2x19P 间距:1.27mm 直插
- 描述
- 1.27FH H4.3 2x19Pin 180度 W3.0 U型 PC2.4 6T
- 品牌名称
- JXTCONN(聚兴泰)
- 商品型号
- B127M01-0B38P51-H43C24
- 商品编号
- C41427005
- 商品封装
- 插件,P=1.27mm
- 包装方式
- 管装
- 商品毛重
- 1.028克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排母 | |
| 插孔结构 | 2x19P | |
| 间距 | 1.27mm | |
| 行距 | 1.27mm | |
| 圆孔/方孔 | 方孔 | |
| 安装方式 | 直插 |
| 属性 | 参数值 | |
|---|---|---|
| 排数 | 双排 | |
| 总孔位数 | 38P | |
| 额定电流 | 1A | |
| 插孔方向 | 顶部 | |
| 触头材质 | 铜合金 | |
| 工作温度 | -40℃~+105℃ |
