温馨提醒：图片仅供参考，商品以实物为准

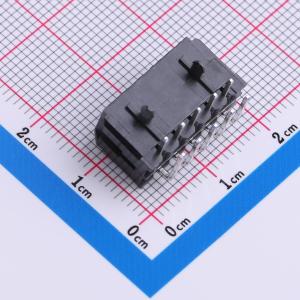

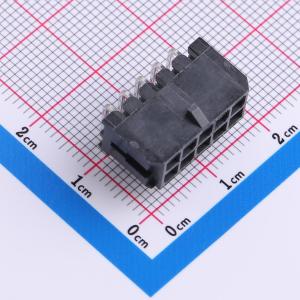

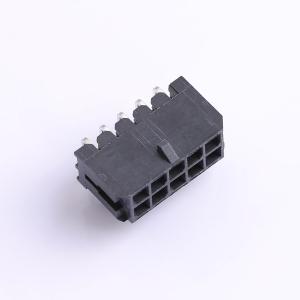

WB300A1H-103P-002
2x5P 间距:3mm 弯插
- 品牌名称
- ZGWD(温达电子)
- 商品型号
- WB300A1H-103P-002
- 商品编号
- C41415415
- 商品封装
- 弯插,P=3mm
- 包装方式
- 袋装
- 商品毛重
- 1克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x5P | |
| 间距 | 3mm | |
| 安装方式 | 弯插 | |
| 总PIN数 | 10P | |
| 排数 | 2 | |
| 每排PIN数 | 5 | |
| 行距 | 3mm | |
| 额定电流 | 5A | |
| 触头材质 | 铜合金 |
| 属性 | 参数值 | |
|---|---|---|
| 触头镀层 | 锡 | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 600V | |
| 塑料材质 | PA66 | |
| 阻燃等级 | UL94V-0 | |
| 附加特征 | 带柱 | |
| 颜色 | 黑色 | |
| Z轴-板上高度 | 8.8mm | |
| X轴-板上底边长度(间距线) | 18mm | |
| Y轴-板上底边宽度 | 11.8mm |
