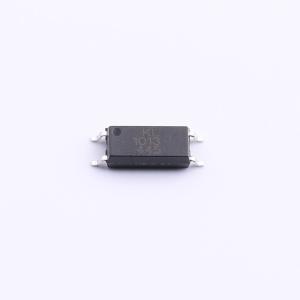

KL1013-TA

描述: 晶体管光耦（DC)，电流传输比100~200%，正向电压1.45V,反向电流10uA，Min击穿电压80V，Max暗电流100nA，隔离电压5000V，总消耗功率250mW，工作温度-55~+110℃，LSOP4（尺寸7.6x3.62x2.2mm），TA-铜线
品牌名称: Kinglight(晶台)
商品型号: KL1013-TA
商品编号: C41414470
商品封装: LSOP-4
包装方式: 编带
商品毛重: 0.280833克(g)

商品参数

KL101X系列由一个红外发射二极管，光耦合到一个光电晶体管构成光电耦合器
KL101X series contains an infrared emitting diode, optically coupled to a phototransistor detector.
它们封装在4引脚LSOP封装中
They are packaged in a 4-pin LSOP package

电流转换率(Current transfer ratio) CTR: 50~600% at |F = 5mA, Vce = 5V；CTR: 63 - 320% at lF = 10mA, VCe = 5V
输入与输出高隔离电压 (Viso = 5000V rms) High isolation voltage between inputs and output (Viso = 5000V rms)
8mm长爬电距离8mm long creepage distance
紧凑型4引脚LSOP，外形尺寸为2.1mm Compact 4 Pin LSOP with a 2.1mm profile
不含卤素(溴 < 900ppm, 氯 < 900ppm, 溴 + 氯 < 1500ppm) Halogen free (Br < 900ppm, Cl < 900ppm, Br + Cl < 1500ppm)
符合欧盟REACH法规Compliance with EU REACH
无Pb且符合ROHS标准Pb free and compliant with RoHS standards
安全审批Safety approval CQC认证已批准(编号:CQC23001407998) CQC approved (No.CQC23001407998) UL认证已批准(编号:UL - CA - 2340753 - 0) UL approved (No.UL - CA - 2340753 - 0 )

家用电器，如电风扇加热器等Home appliances, such as fan heaters, etc.
可编程控制器Programmable controllers
电信设备Telecommunication equipments
不同电位和阻抗电路间的信号传输Signal transmission between circuits of different potentials and impedances
测量仪器等measuring instruments, etc

(3000个/圆盘，最小起订量 10 个)

个

起订量：10 个3000个/圆盘
