温馨提醒：图片仅供参考，商品以实物为准

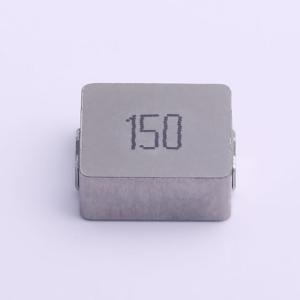

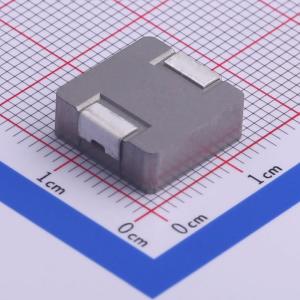

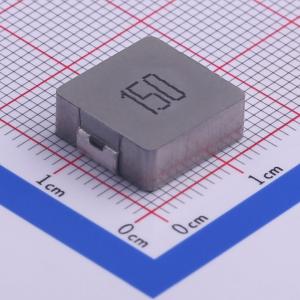

MWSA1205S-150MT
15uH ±20% 10A
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 特性：铁合金材料,高饱和电流,低DCR。闭合磁路设计,漏磁干扰小。无卤,符合RoHS标准。Metal material for large current and low DCR。Closed magnetic circuit design reduces leakage flux。Halogen free, RoHS compliant。应用：TV、显卡、内存。笔记本电脑、平板电脑
- 品牌名称
- Sunlord(顺络)
- 商品型号
- MWSA1205S-150MT
- 商品编号
- C408517
- 商品封装
- SMD,13.5x12.6mm
- 包装方式
- 编带
- 商品毛重
- 5.186克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 15uH | |
| 精度 | ±20% | |
| 额定电流 | 8A |
| 属性 | 参数值 | |
|---|---|---|
| 饱和电流(Isat) | 10A | |
| 直流电阻(DCR) | 30mΩ | |
| 类型 | - | |
| 车规等级 | - |
