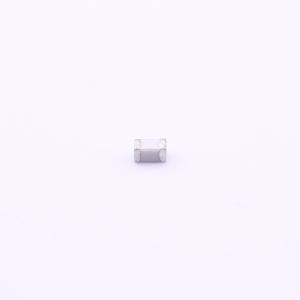

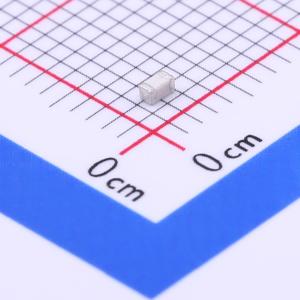

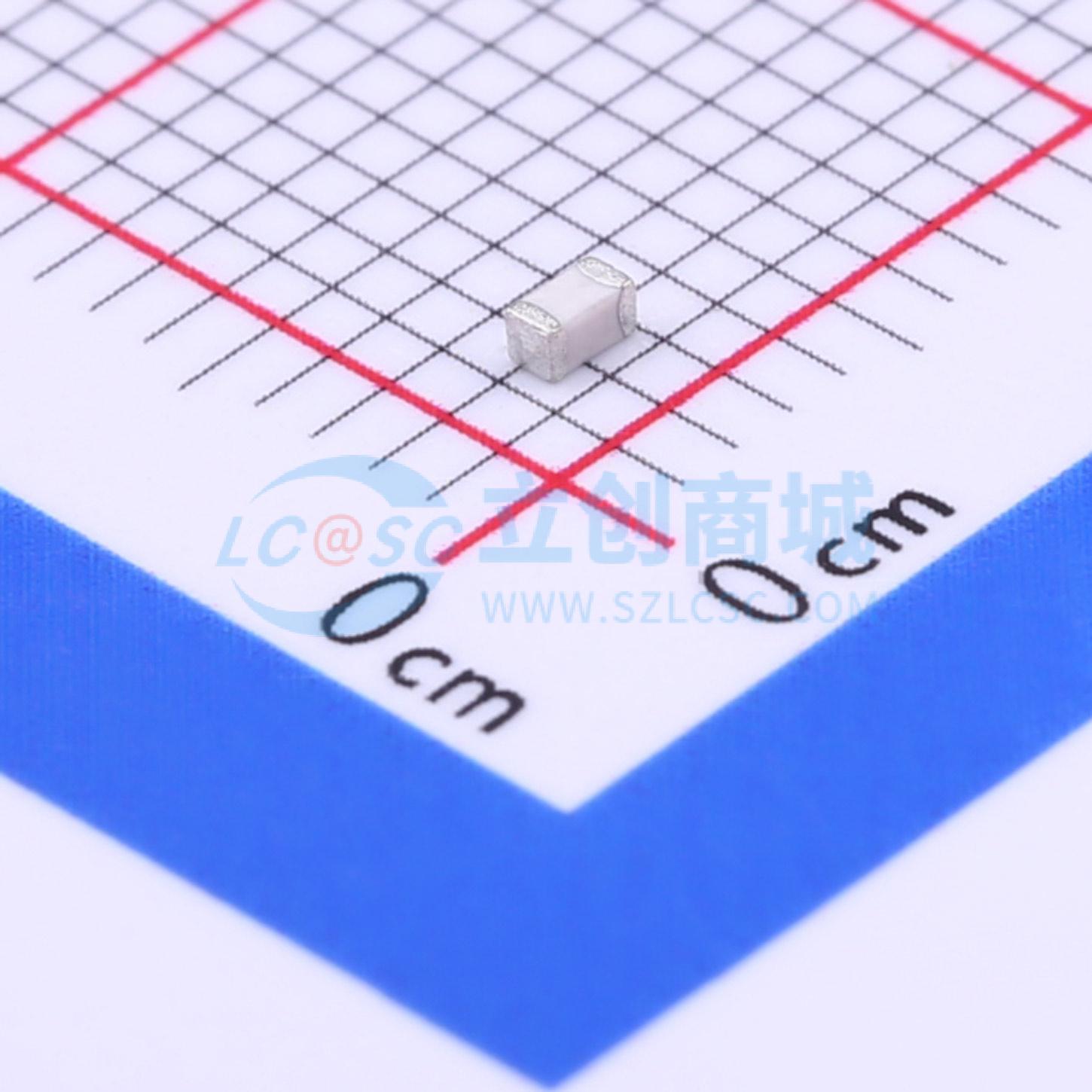

CMCC1608CR39JSP
390nH ±5%
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 特性：单片结构,可靠性高。自谐振频率高。可焊性好,耐热性高。符合RoHS标准。应用：电信和其他设备的射频电路
- 品牌名称
- Cybermax(思博科技)
- 商品型号
- CMCC1608CR39JSP
- 商品编号
- C405082
- 商品封装
- 0603
- 包装方式
- 编带
- 商品毛重
- 0.036克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 贴片电感 | |
| 电感值 | 390nH | |
| 精度 | ±5% | |
| 额定电流 | 150mA | |
| 饱和电流(Isat) | - |
| 属性 | 参数值 | |
|---|---|---|
| 直流电阻(DCR) | 3.2Ω | |
| 品质因数 | 8@50MHz | |
| 自谐振频率 | 300MHz | |
| 车规等级 | - | |
| 类型 | 叠层电感 |
