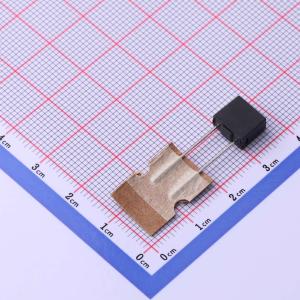

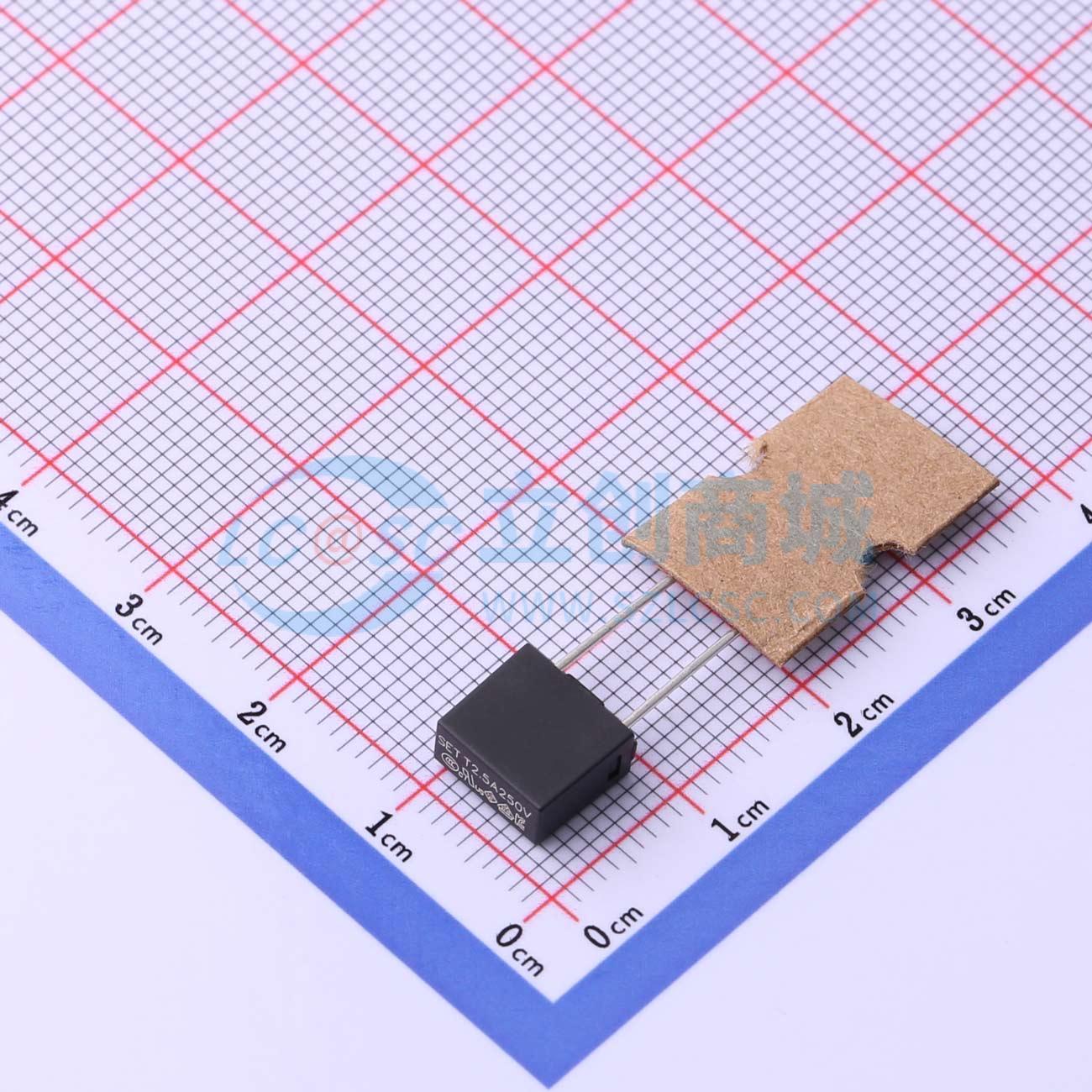

SPT478T2.5A250V

小型熔断器(MiniatureFuses)是一种小型的过电流保护装置。它串联在电路中，一般要求电阻小（功耗小），当电路正常工作时，它相当于一根导线，能够长时间稳定地导通电路；当电路不稳定或外部干扰而发生电流波动时，它也应能承受一定范围的过载；只有当电路中出现明显的过载或短路时，小型熔断器(MiniatureFuses)才会动作，通过切断电流来保护电路。小型熔断器(Miniature Fuses)广泛应用于各种电子电器设备的过电流保护，其具有多种安装方式、结构紧凑、性能可靠稳定等特点。技术参数：额定电流范围0.1 A至40 A，额定电压范围125 VAC至600 VAC，以及24 VDC至600 VDC，符合RoHS和REACH，通过cURus、VDE、PSE、CCC、CQC、KC、TUV认证。

Miniature Fuses is an Over Current Protection device. It is connected in series in the circuit and generally requires low resistance (low power consumption). When the circuit works normally, it is equivalent to a wire, which can conduct the circuit continuously and stably. When the current fluctuates due to circuit instability or external interference, it should also be able to withstand a certain range of overload. Only when overload or short circuit happens, Miniature Fuses can blow fast to protect the Circuit. Miniature Fuses is widely used in all kinds of electrical equipment. It has a variety of mounting modes, compact structure, reliable and stable performance. Technical parameters: Its rated current ranges from 0.1 A to 40 A, rated voltage ranges from 125 VAC to 600 VAC, and from 24 VDC to 600 VDC, complies with RoHS and REACH, and is approved by cURus, VDE, PSE, CCC, CQC, KC, TUV.

• 塑料壳 Plastic Case
• 快断与慢断 Fast Acting and Time-Lag
• 额定电流：(0.1～10)A Rated Current: (0.1 to 10) A
• 额定电压：（125～400)VAC Rated Voltage: (125 to 400) VAC
• 低分断 Low Breaking Capacity
• 无铅且符合RoHs&REACH要求 Lead-free (Pb-free), RoHS & REACH Compliant
