温馨提醒：图片仅供参考，商品以实物为准

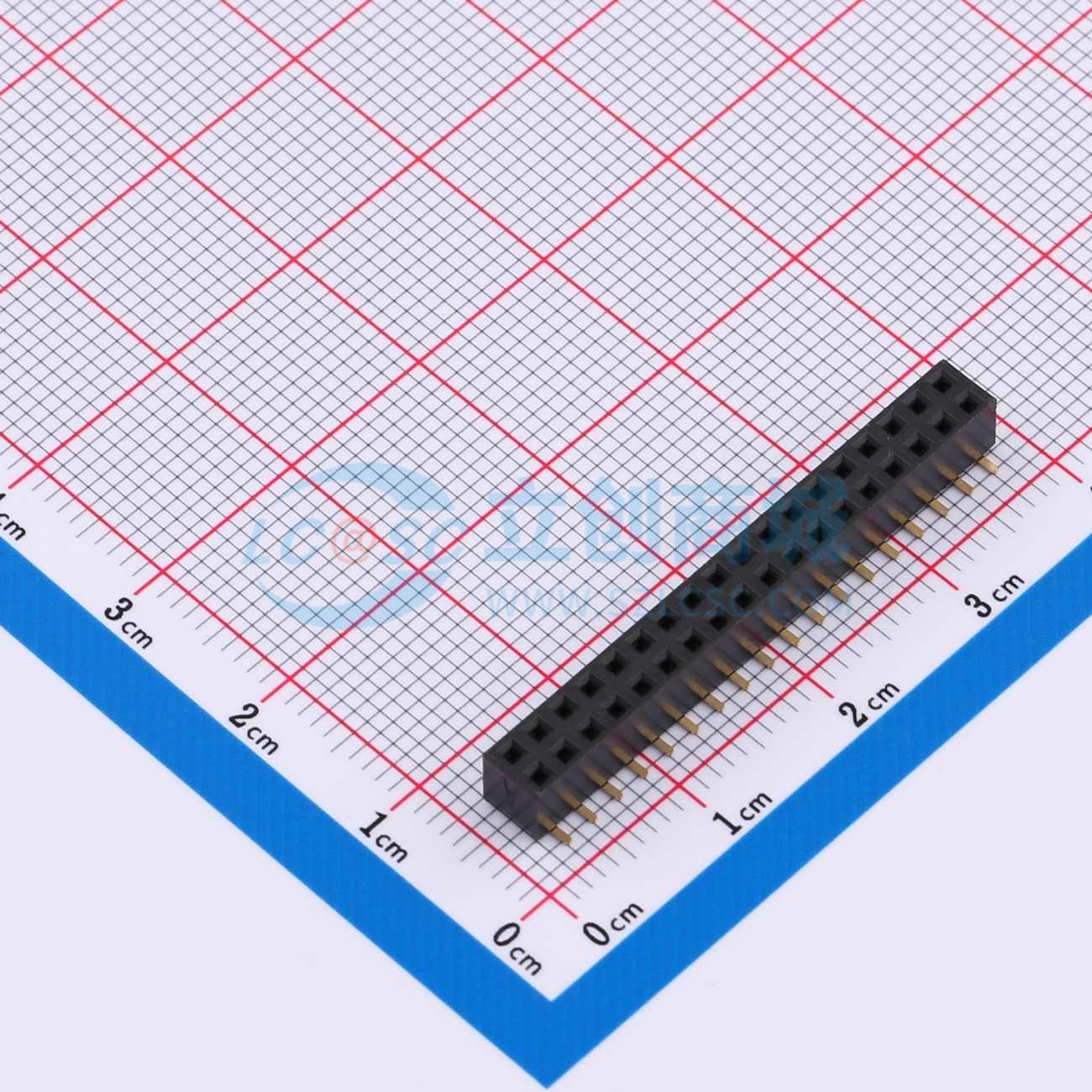

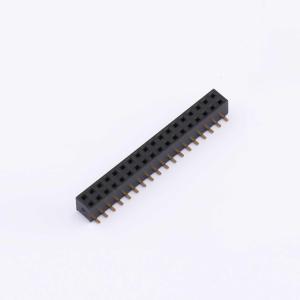

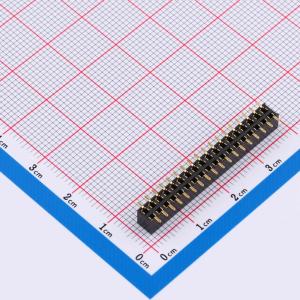

X4621FVS-2x18-C43D65
间距:2mm 2x18P 立贴
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 塑宽4.0mm,PW6.5mm,U型,不带定位,6T料,Au足1u\",管装
- 商品型号
- X4621FVS-2x18-C43D65
- 商品编号
- C2883204
- 商品封装
- SMD,P=2mm
- 包装方式
- 管装
- 商品毛重
- 2.123克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排母 | |
| 插孔结构 | 2x18P | |
| 间距 | 2mm | |
| 行距 | - | |
| 圆孔/方孔 | 方孔 | |
| 安装方式 | 立贴 | |
| 排数 | 双排 | |
| 总孔位数 | 36P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 3A | |
| 额定电压 | 250V | |
| 插孔方向 | 顶部 | |
| 塑高 | 4.3mm | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -40℃~+105℃ |
