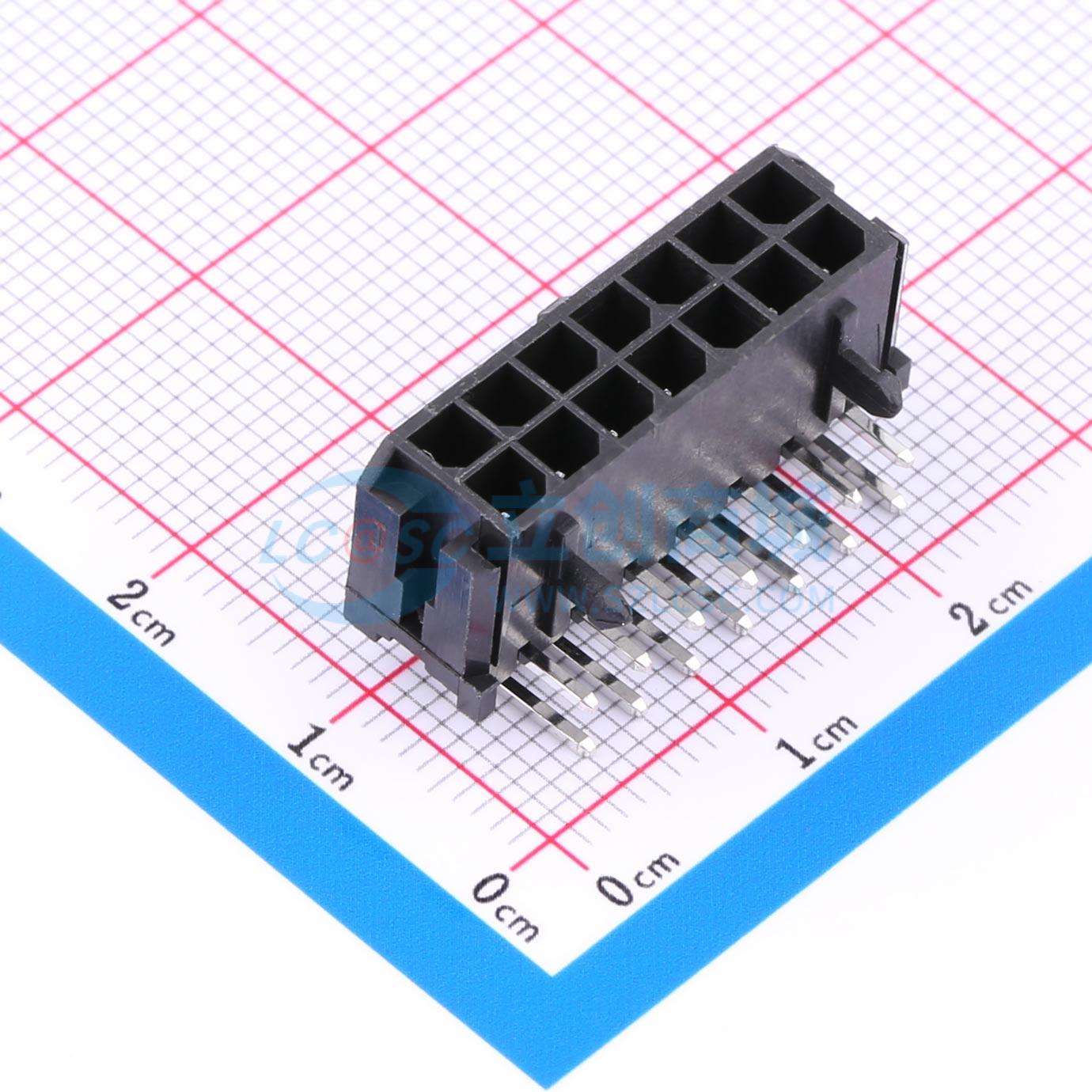

温馨提醒：图片仅供参考，商品以实物为准
X3025WR-2x07-46SN
2x7P 间距:3mm 弯插
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 配套:针座X3025WR-2x07-46SN 胶壳X3025HM-2x07-N2 端子X3025TF-PSN
- 商品型号
- X3025WR-2x07-46SN
- 商品编号
- C2882794
- 商品封装
- 弯插,P=3mm
- 包装方式
- 托盘
- 商品毛重
- 5.6075克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x7P | |
| 间距 | 3mm | |
| 安装方式 | 弯插 | |
| 总PIN数 | 14P | |
| 排数 | 2 | |
| 每排PIN数 | 7 | |
| 行距 | 3mm |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 5A | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -40℃~+125℃ | |
| 额定电压 | 250V | |
| 塑料材质 | PA46 | |
| 阻燃等级 | UL94V-0 |
