温馨提醒：图片仅供参考，商品以实物为准

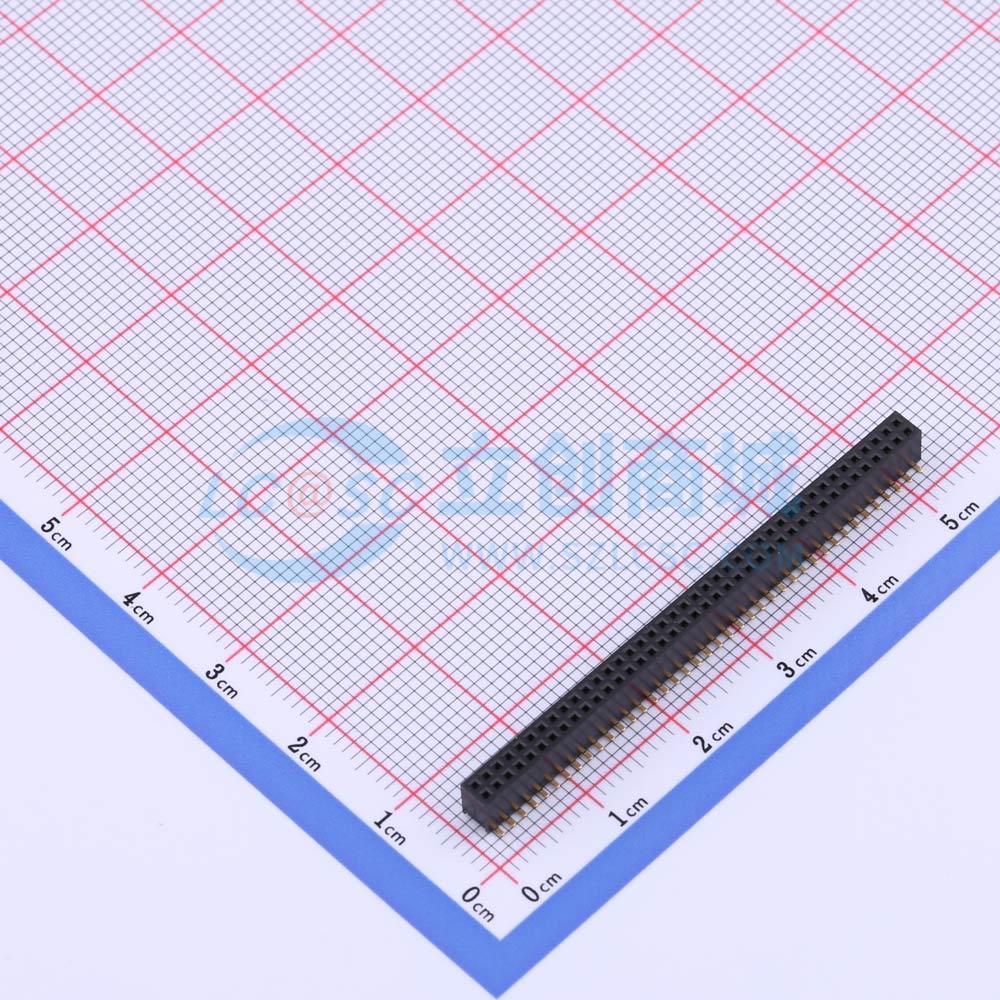

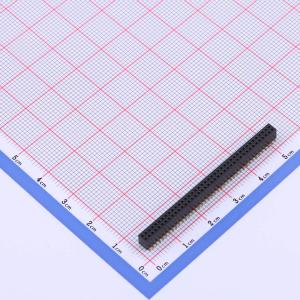

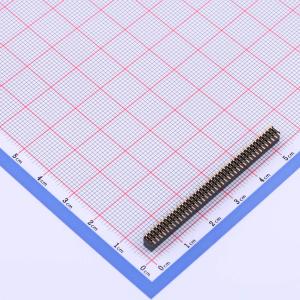

X1321FVS-2x40-C43D48
间距:1.27mm 2x40P 立贴
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- SMT,D4.8mm,U型,6T料,Au足1u
- 商品型号
- X1321FVS-2x40-C43D48
- 商品编号
- C2881887
- 商品封装
- SMD,P=1.27mm
- 包装方式
- 管装
- 商品毛重
- 2.14克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排母 | |
| 插孔结构 | 2x40P | |
| 间距 | 1.27mm | |
| 行距 | - | |
| 圆孔/方孔 | 方孔 | |
| 安装方式 | 立贴 | |
| 排数 | 双排 | |
| 总孔位数 | 80P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 1A | |
| 额定电压 | 250V | |
| 插孔方向 | 顶部 | |
| 塑高 | 4.3mm | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -40℃~+105℃ |
