SW-460-25N10G
SW-460-25N10G
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述

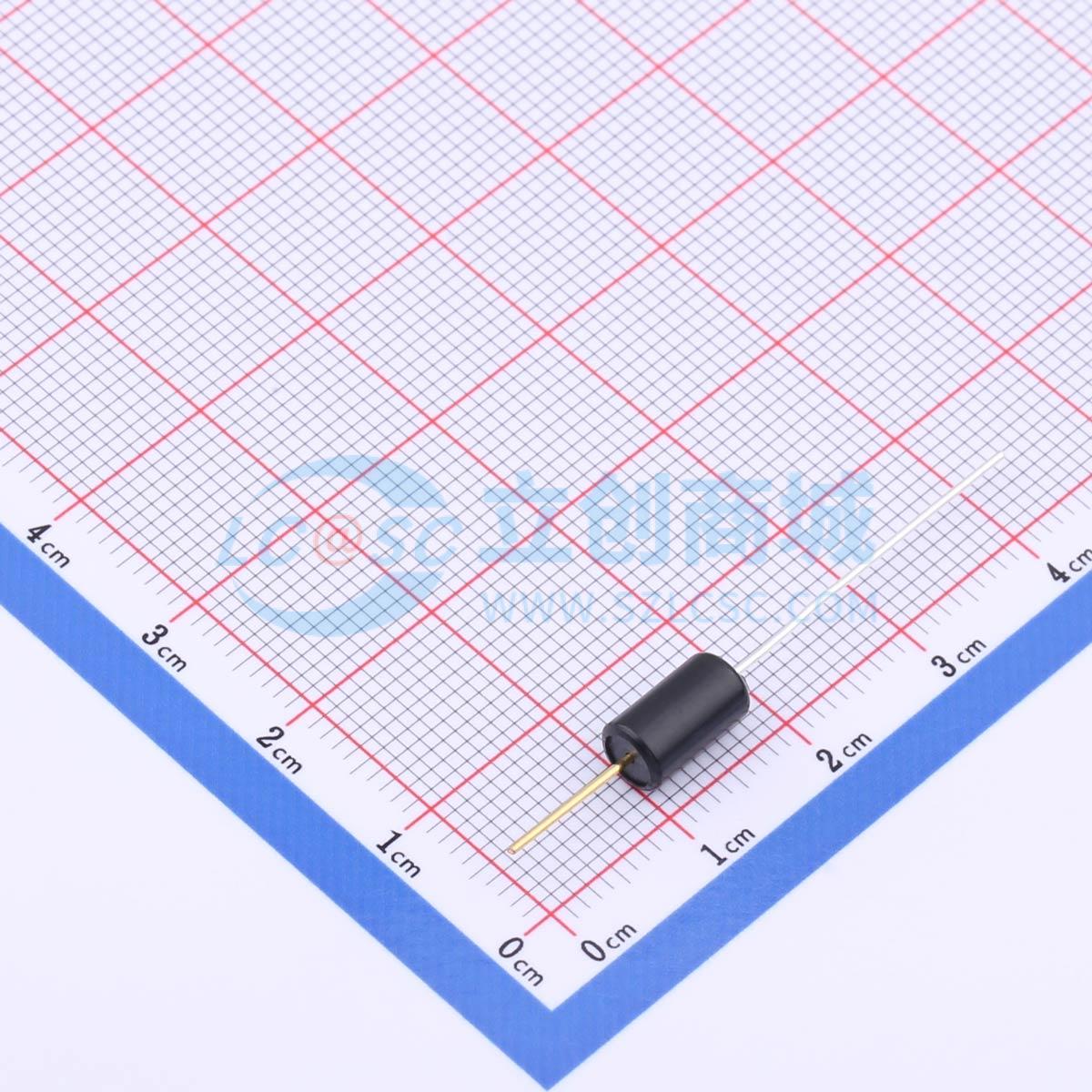

- 单滚珠开关，主体8.5x4.8，单通，A脚长25mm镀镍，B脚长10mm镀金
- 商品型号
- SW-460-25N10G
- 商品编号
- C2879941
- 商品封装
- 插件
- 包装方式
- 袋装
- 商品毛重
- 0.661克(g)
商品参数
参数完善中
商品特性
- Voltage: <12V
- Current: <20mA
- Conduction time: 2ms
- Closed circuit resistance: <10m ohm
- Open circuit resistance: >10m ohm
- High temperature resistance: 120℃
- Terminal tension: 500gf/min
- Humidity: 25~95% RH
- Operating life: 100000 times
- SW-460 is a single ball type single direction tilt induction trigger switch.
- When the electric end of the product guide (foot less) is tilted and the tilt Angle is greater than 10 degrees, the product is in the open (OFF) state. When the horizontal state of the product is tilted and the trigger end (gold - plated pin end) is lower than the horizontal and the tilt Angle is greater than 10 degrees, the product is in the closed (ON) state.
- When placed horizontally, shaking can be easily triggered, and when there is no foot down, shaking is not easy to trigger.
- 本规范产品全密封、防水、防尘。
