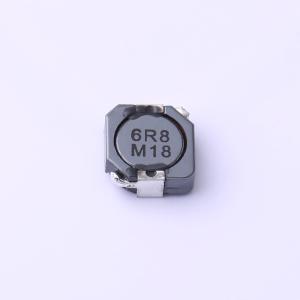

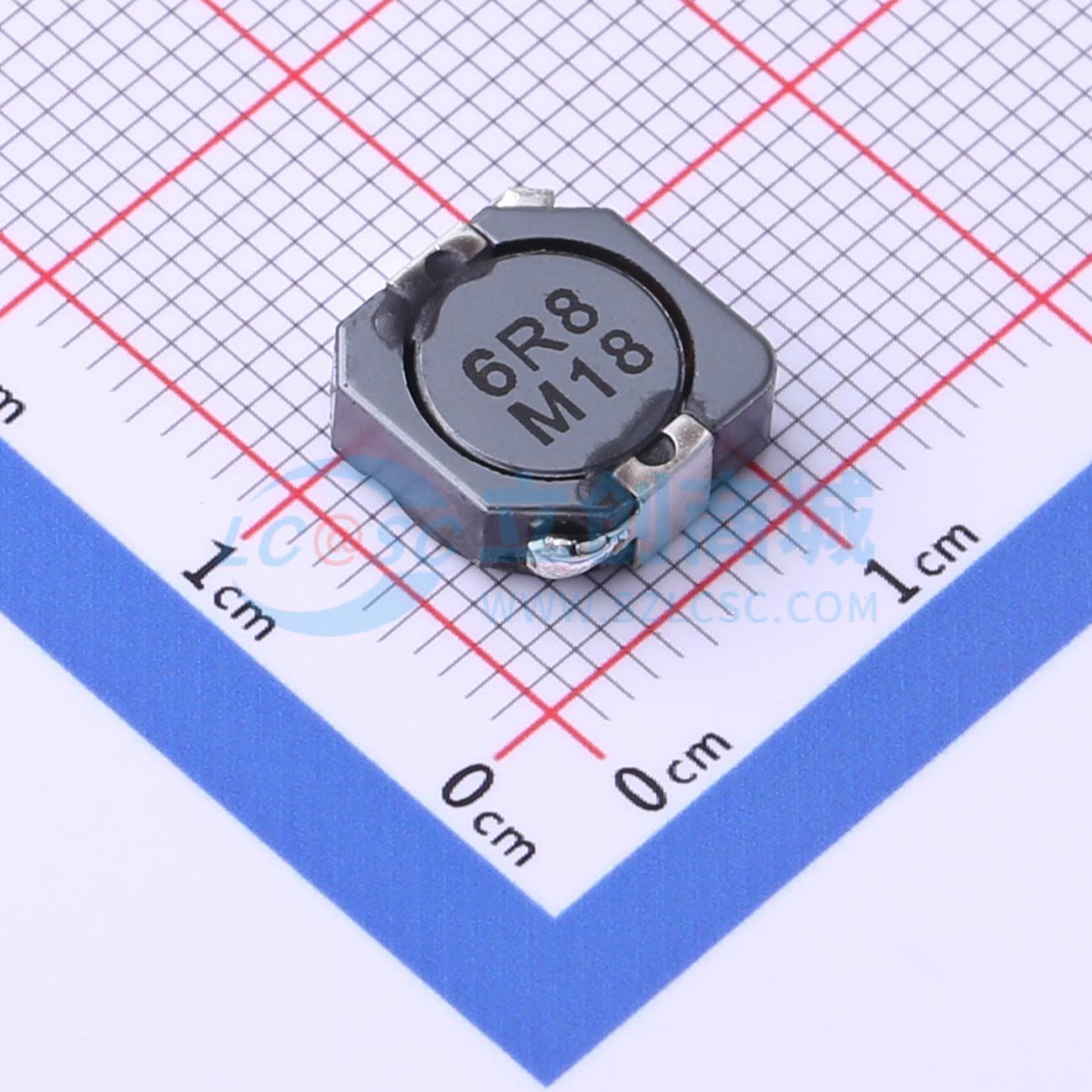

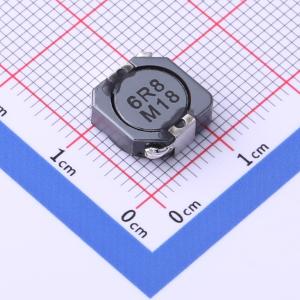

温馨提醒：图片仅供参考，商品以实物为准
CDRH104RT125NP-6R8PC
6.8uH ±25% 4.66A
SMT扩展库SMT补贴嘉立创PCB免费打样
私有库下单最高享92折
- 描述
- 铁氧体鼓形磁芯结构。磁屏蔽。尺寸:长×宽×高:10.5×10.3×4.0 mm(最大)。产品重量:1.5g(参考值)。湿度敏感度等级:1。符合AEC Q200标准
- 品牌名称
- Sumida(胜美达)
- 商品型号
- CDRH104RT125NP-6R8PC
- 商品编号
- C2599396
- 商品封装
- SMD,10.2x10mm
- 包装方式
- 编带
- 商品毛重
- 1.968克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 6.8uH | |
| 精度 | ±25% | |
| 额定电流 | 4.4A |
| 属性 | 参数值 | |
|---|---|---|
| 饱和电流(Isat) | 4.66A | |
| 直流电阻(DCR) | 20.5mΩ | |
| 车规等级 | AEC-Q200 |
