温馨提醒：图片仅供参考，商品以实物为准

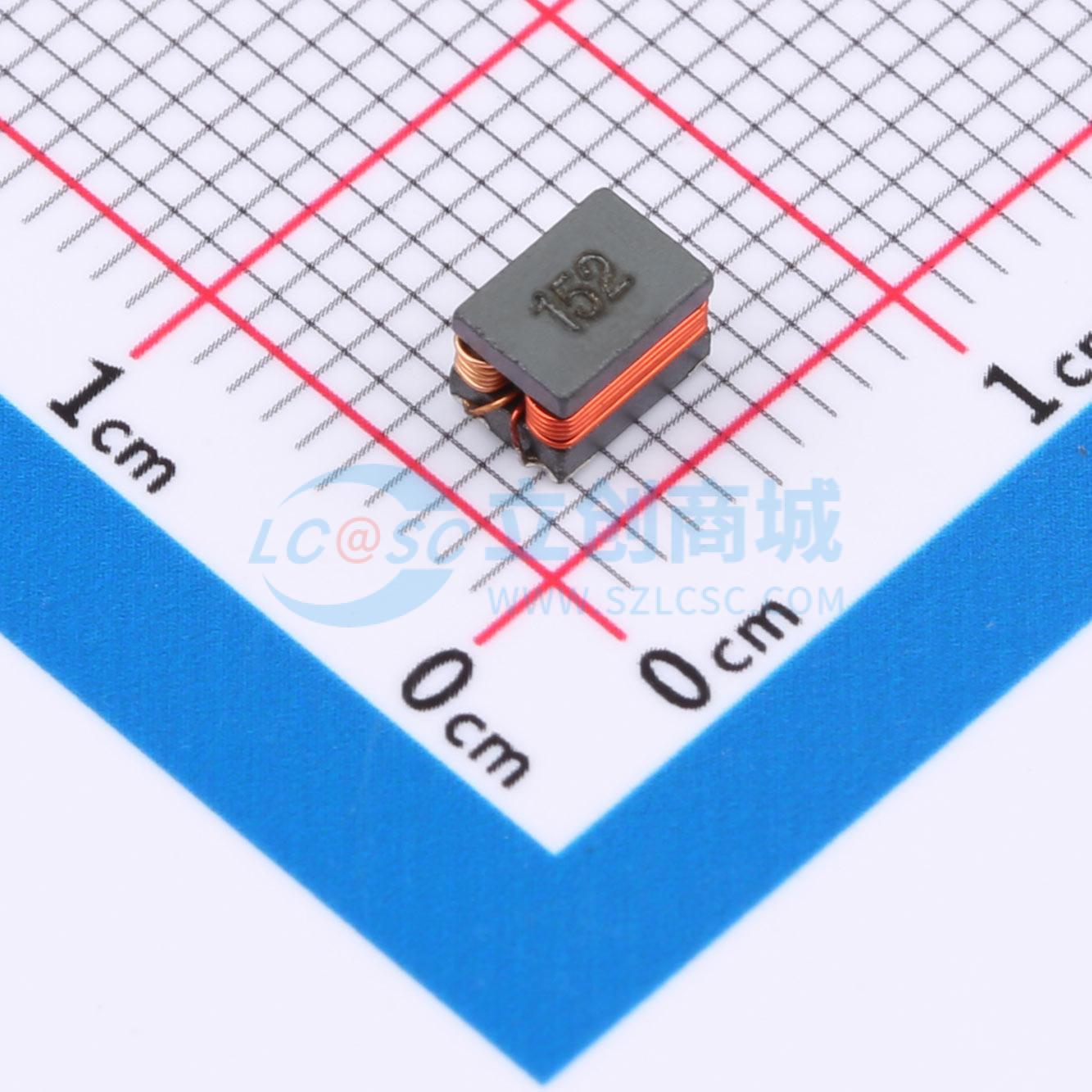

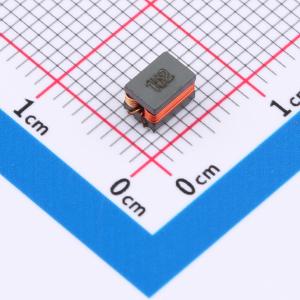

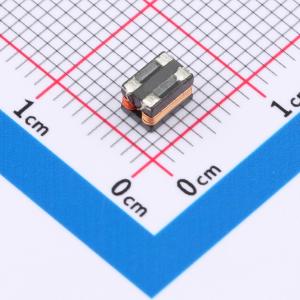

FC-LCM4532-152
共模电感
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- EMC滤波共模电感，良好的高频阻抗性能
- 品牌名称
- FC(方成)
- 商品型号
- FC-LCM4532-152
- 商品编号
- C22399794
- 商品封装
- SMD-4P,4.5x3.2mm
- 包装方式
- 编带
- 商品毛重
- 0.388克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 共模滤波器 | |
| 通道数 | 2 | |
| 额定电流 | 1A | |
| 阻抗@频率 | 1.5kΩ@100MHz | |
| 额定电压 | 125V |
| 属性 | 参数值 | |
|---|---|---|
| 额定电压(AC) | 125V | |
| 直流电阻(DCR) | 65mΩ | |
| 工作温度 | - | |
| 绝缘电阻 | 10MΩ |
商品特性
- FC-LCM common mode impedance at high frequency effects excellent noise suppression performance.在高的共模阻抗具有良好的杂讯抑制表现.
- The common mode choke coils structure enables noise Suppre without degrading the signal (共模扼線圈的結構使得雜讯被抑制訊號衰减。)
- A chip-type common mode filter for large current applications.
- Common mode impedance surpasses 300 to 1000Ω at 100MHz.
- Capable of handling the highest current (up to 10A) of any chip-type common mode filter.
- Height and size have been considered, resulting in a compact and light-weight choke coil. Applicable for the miniaturization required to reduce the size and weight of portable equipment.
优惠活动
购买数量
(2000个/圆盘，最小起订量 1 个)个
起订量：1 个2000个/圆盘
总价金额：
￥ 0.00近期成交10单
