温馨提醒：图片仅供参考，商品以实物为准

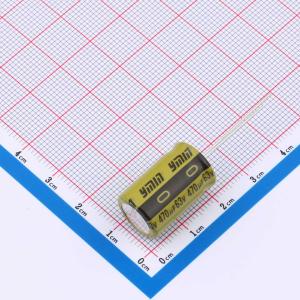

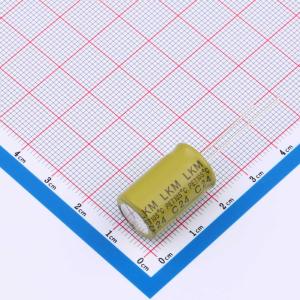

LKML2001J471MF
470uF ±20% 63V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- LKM/470UF/63V/12.5*20/105度/±20%/8000H
- 品牌名称
- Ymin(永铭)
- 商品型号
- LKML2001J471MF
- 商品编号
- C22388848
- 商品封装
- 插件,D12.5xL20mm
- 包装方式
- 袋装
- 商品毛重
- 3.775克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 直插铝电解电容 | |
| 容值 | 470uF | |
| 精度 | ±20% | |
| 额定电压 | 63V | |
| 纹波电流 | 2.1A@100KHz |
| 属性 | 参数值 | |
|---|---|---|
| 脚间距 | 5mm | |
| 电容体直径 | 12.5mm | |
| 电容体长度 | 20mm | |
| 工作寿命 | 10000hrs@105℃ | |
| 工作温度 | -55℃~+105℃ |
