温馨提醒：图片仅供参考，商品以实物为准

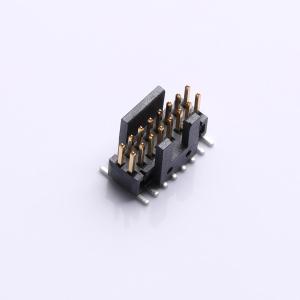

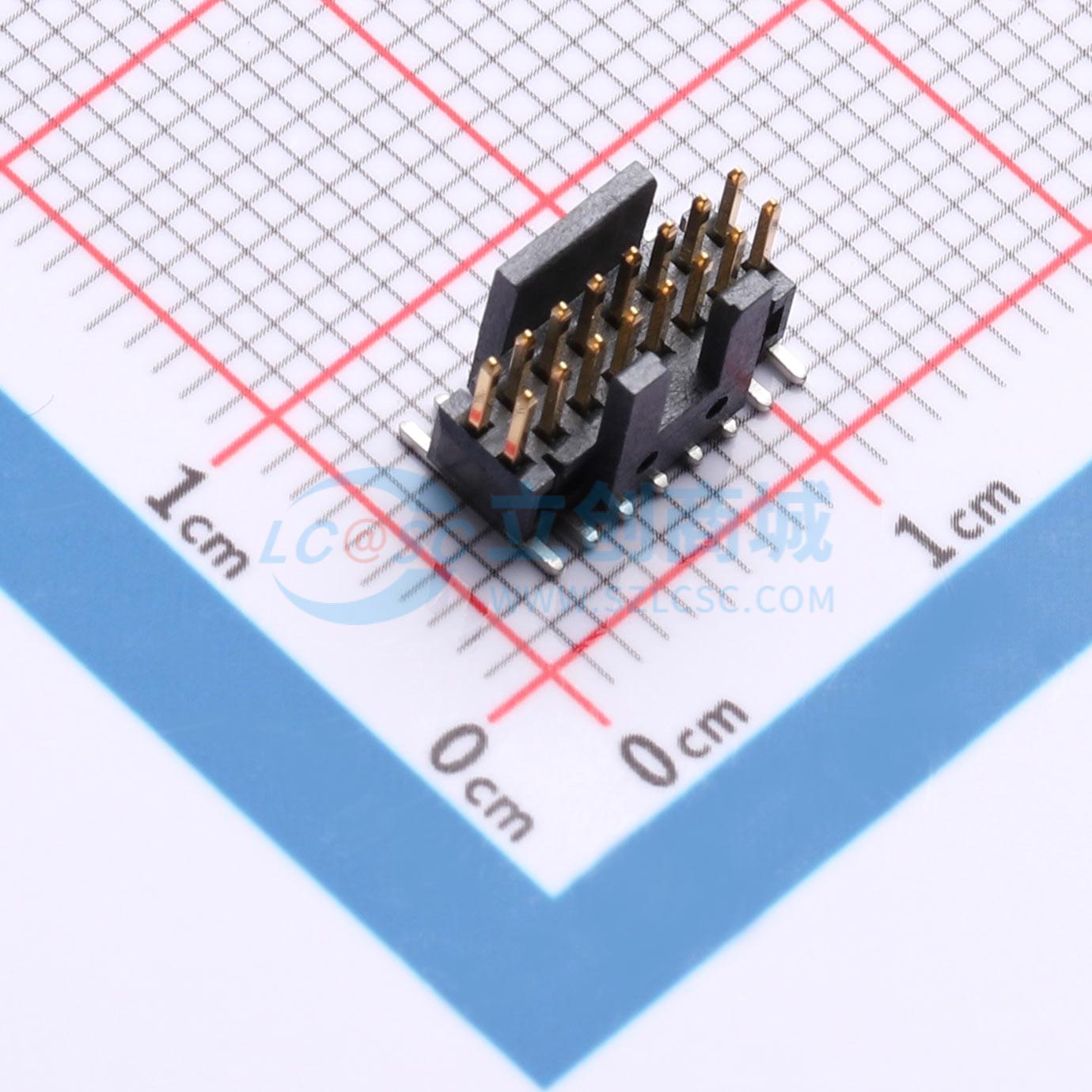

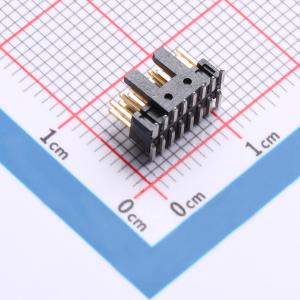

FTSH-108-01-L-DV-K-TR
2x8P 间距:1.27mm 方针 立贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- SAMTEC
- 商品型号
- FTSH-108-01-L-DV-K-TR
- 商品编号
- C21977043
- 商品封装
- SMD,P=1.27mm
- 包装方式
- 编带
- 商品毛重
- 0.89克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排针 | |
| 插针结构 | 2x8P | |
| 间距 | 1.27mm | |
| 行距 | 1.27mm | |
| 圆针/方针 | 方针 | |
| 安装方式 | 立贴 |
| 属性 | 参数值 | |
|---|---|---|
| 排数 | 双排 | |
| 总PIN位数 | 16P | |
| 配合针长度 | 3.05mm | |
| 塑高 | 2.92mm | |
| 触头材质 | 磷青铜 | |
| 颜色 | 黑色 |
