温馨提醒：图片仅供参考，商品以实物为准

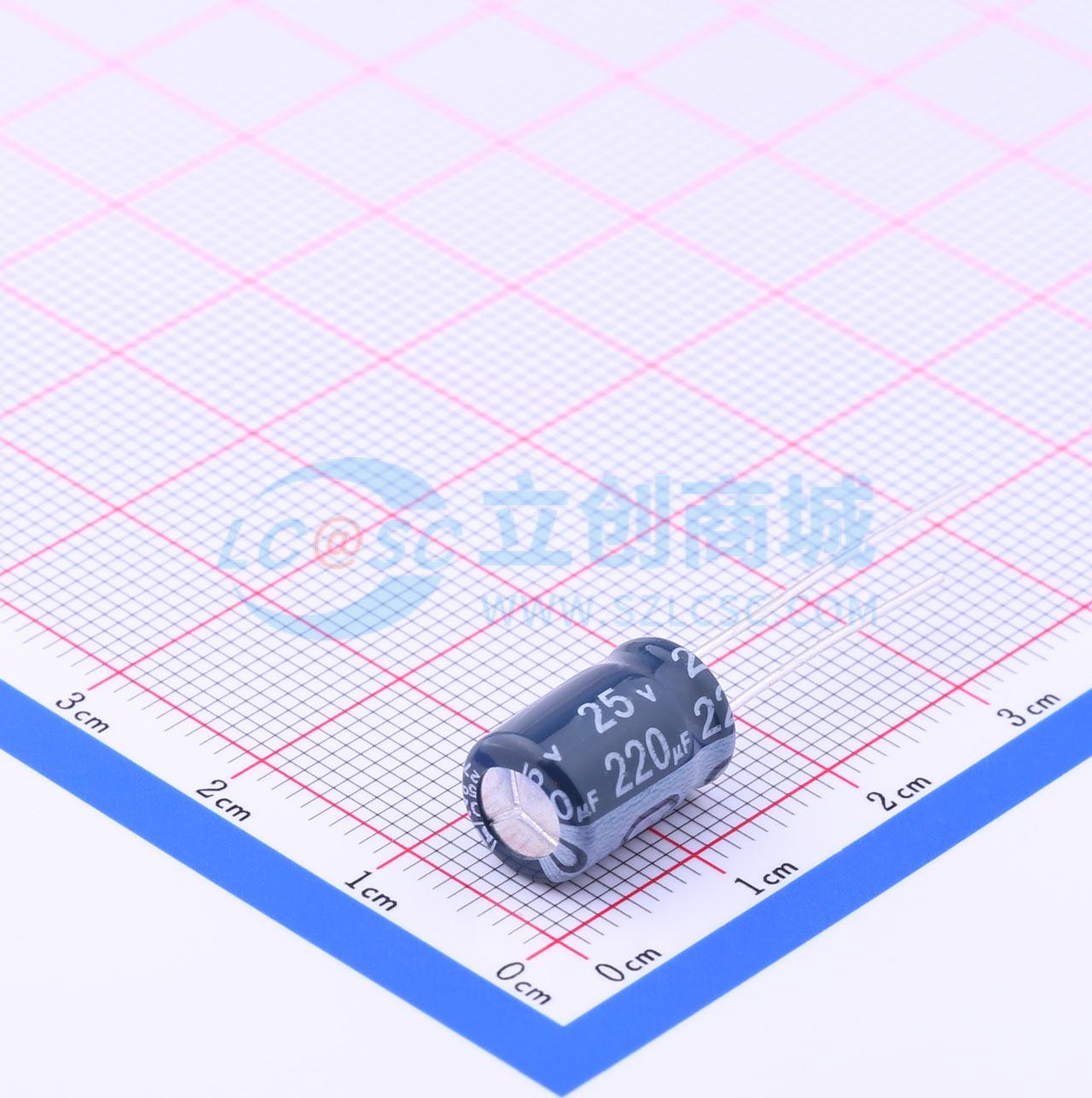

ECR1EBK221MLL080011
220uF ±20% 25V
SMT扩展库SMT补贴嘉立创PCB免费打样
- 品牌名称
- Jianghai(南通江海)
- 商品型号
- ECR1EBK221MLL080011
- 商品编号
- C233080
- 商品封装
- 插件,D8xL11.5mm
- 包装方式
- 袋装
- 商品毛重
- 1.038克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 直插铝电解电容 | |
| 容值 | 220uF | |
| 精度 | ±20% | |
| 额定电压 | 25V |
| 属性 | 参数值 | |
|---|---|---|
| 脚间距 | 3.5mm | |
| 电容体直径 | 8mm | |
| 电容体长度 | 11.5mm | |
| 工作寿命 | 2000hrs@105℃ |
