温馨提醒：图片仅供参考，商品以实物为准

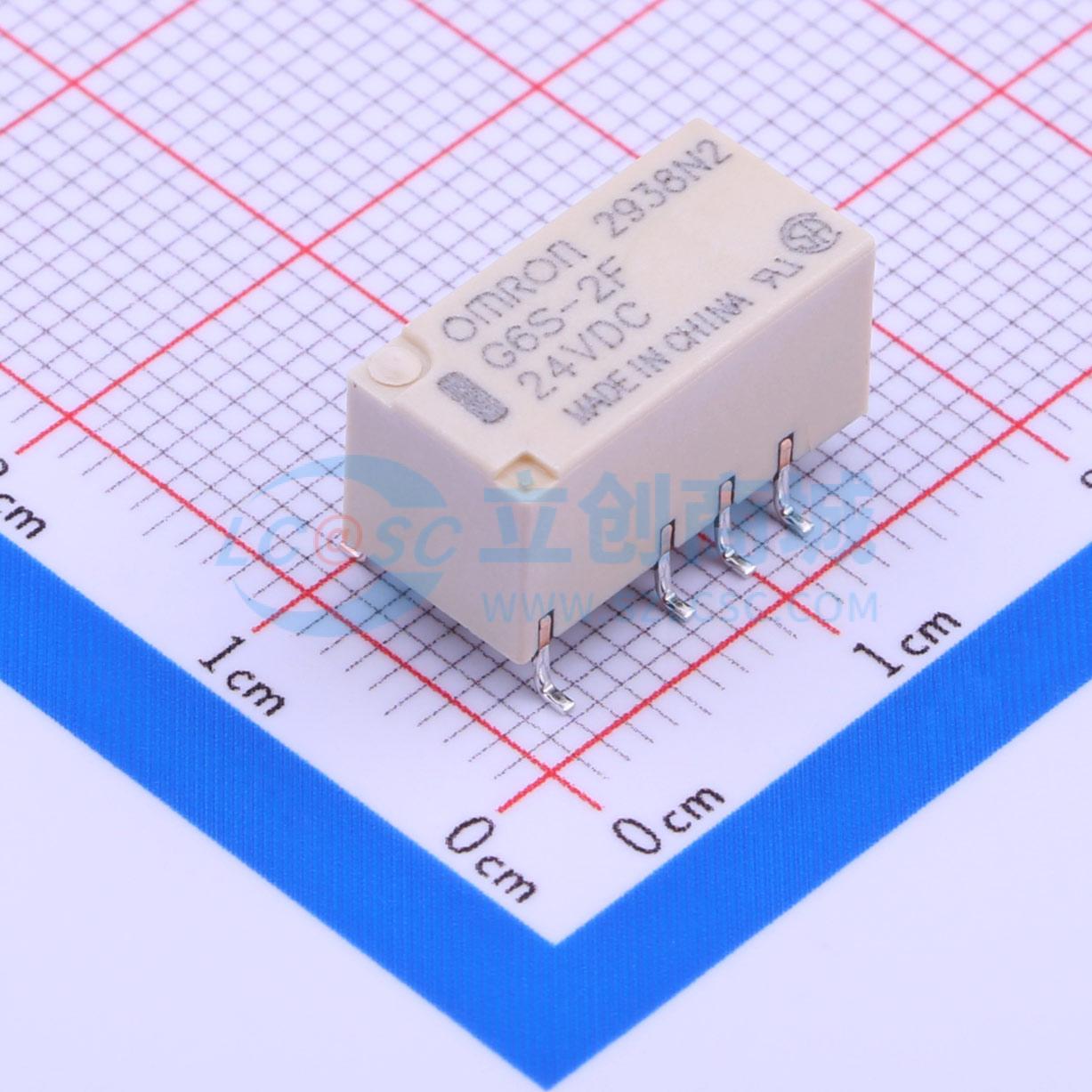

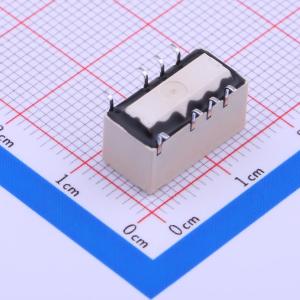

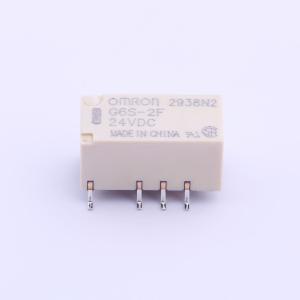

G6S-2F-TR DC24
G6S-2F-TR DC24 BY OMR/C
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- OMRON(欧姆龙)
- 商品型号
- G6S-2F-TR DC24
- 商品编号
- C231396
- 商品封装
- SMD,14.8x7.3mm
- 包装方式
- 编带
- 商品毛重
- 2.968克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 信号继电器 | |
| 线圈电压 | 24V | |
| 触点形式 | 两组转换:2C(双刀双掷-转换) | |
| 触点容量(电阻负载) | - | |
| 最大切换电压 | 250V@AC；220V@DC | |
| 触点材料 | 银+镀金 | |
| 线圈电阻 | - | |
| 最大切换电流 | 2A |
| 属性 | 参数值 | |
|---|---|---|
| 动作时间 | 4ms | |
| 释放时间 | 4ms | |
| 线圈类型 | - | |
| 接触电阻 | - | |
| 工作温度 | -40℃~+85℃ | |
| 长度 | 14.8mm | |
| 宽度 | 7.3mm |
