温馨提醒：图片仅供参考，商品以实物为准

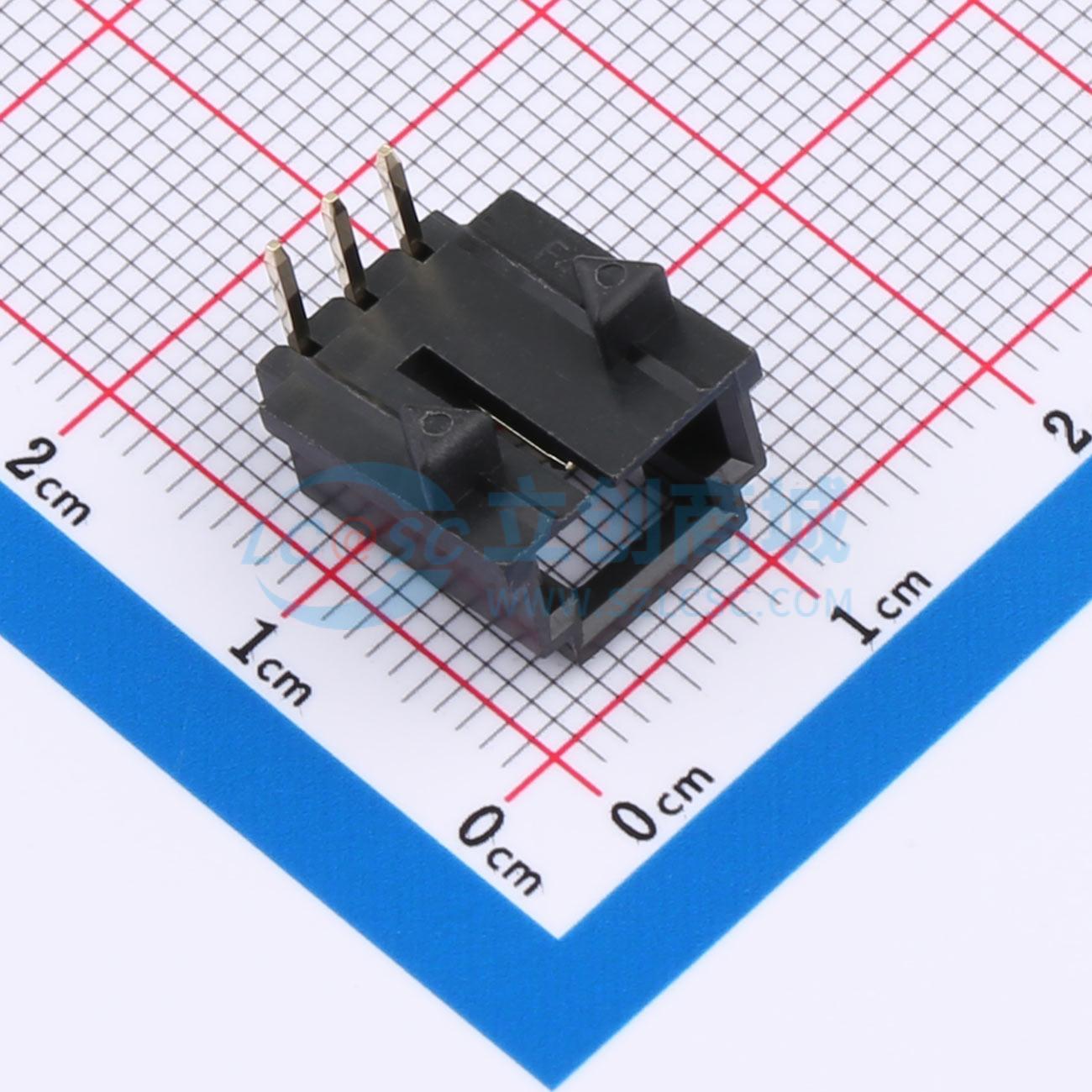

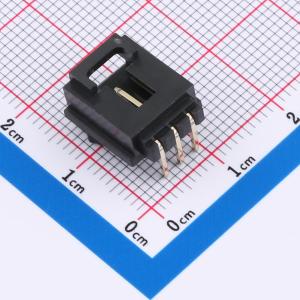

X9556WR-03S-9TV01
1x3P 2.54mm 弯插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 商品型号
- X9556WR-03S-9TV01
- 商品编号
- C21264015
- 商品封装
- 弯插,P=2.54mm
- 包装方式
- 管装
- 商品毛重
- 1.4451克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x3P | |
| 间距 | 2.54mm | |
| 安装方式 | 弯插 | |
| 总PIN数 | 3P | |
| 排数 | 1 | |
| 每排PIN数 | 3 | |
| 额定电流 | 3A |
| 属性 | 参数值 | |
|---|---|---|
| 触头镀层 | 金 | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 250V | |
| 塑料材质 | PA9T | |
| 阻燃等级 | UL94V-0 | |
| 颜色 | 黑色 | |
| Z轴-板上高度 | 7mm | |
| Y轴-板上底边宽度 | 13.21mm |
