温馨提醒：图片仅供参考，商品以实物为准

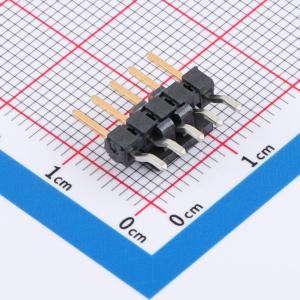

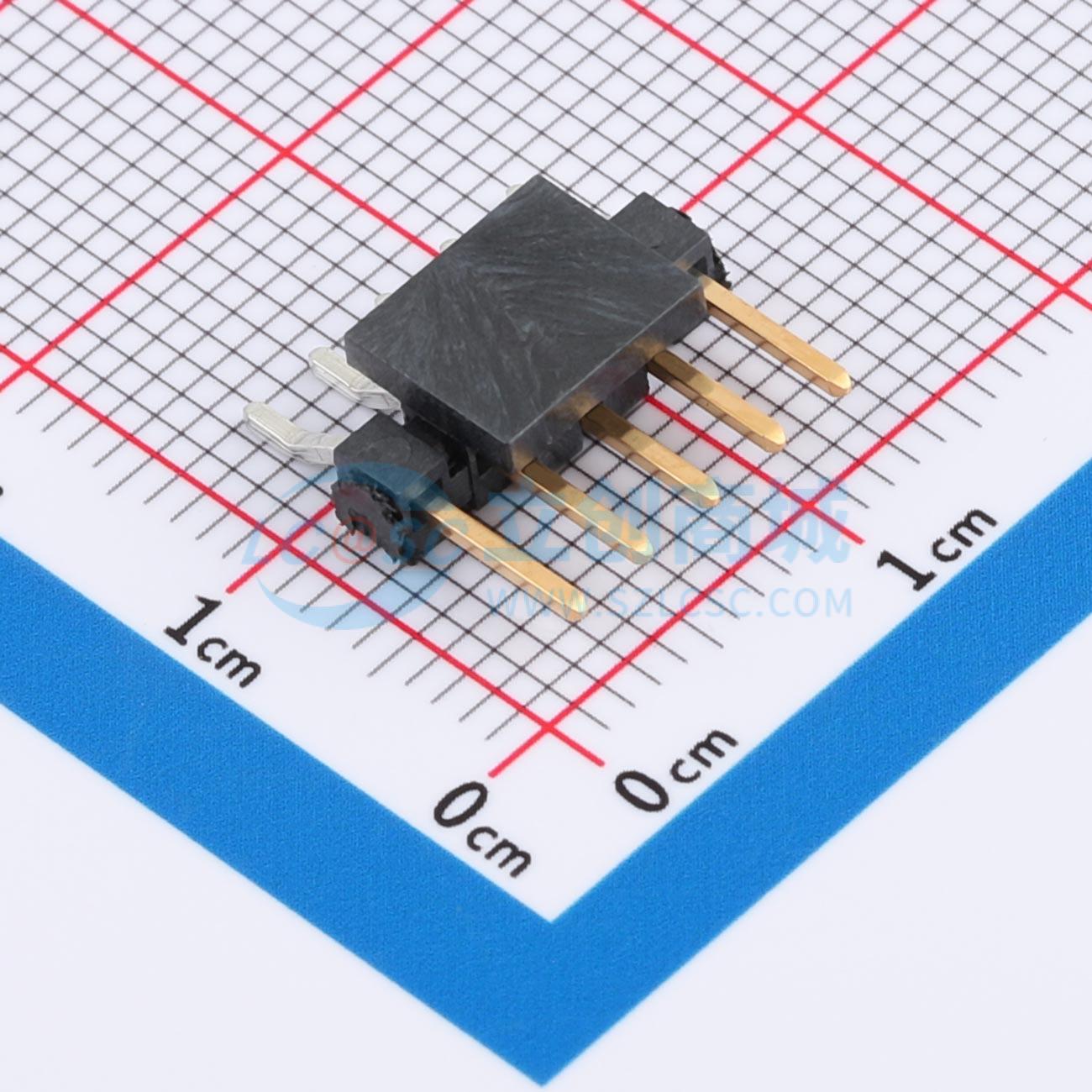

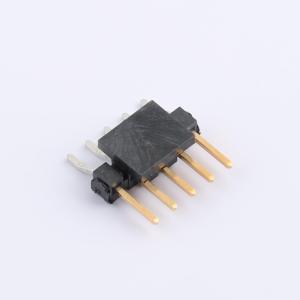

TSM-105-01-L-SH-P-TR
1x5P 间距:2.54mm 方针 卧贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- SAMTEC
- 商品型号
- TSM-105-01-L-SH-P-TR
- 商品编号
- C21190461
- 包装方式
- 编带
- 商品毛重
- 0.992克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排针 | |
| 插针结构 | 1x5P | |
| 间距 | 2.54mm | |
| 圆针/方针 | 方针 | |
| 安装方式 | 卧贴 | |
| 排数 | 单排 | |
| 总PIN位数 | 5P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 5.4A | |
| 额定电压 | 495V | |
| 配合针长度 | 5.84mm | |
| 触头材质 | 磷青铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -55℃~+125℃ | |
| 颜色 | 黑色 |
