温馨提醒：图片仅供参考，商品以实物为准

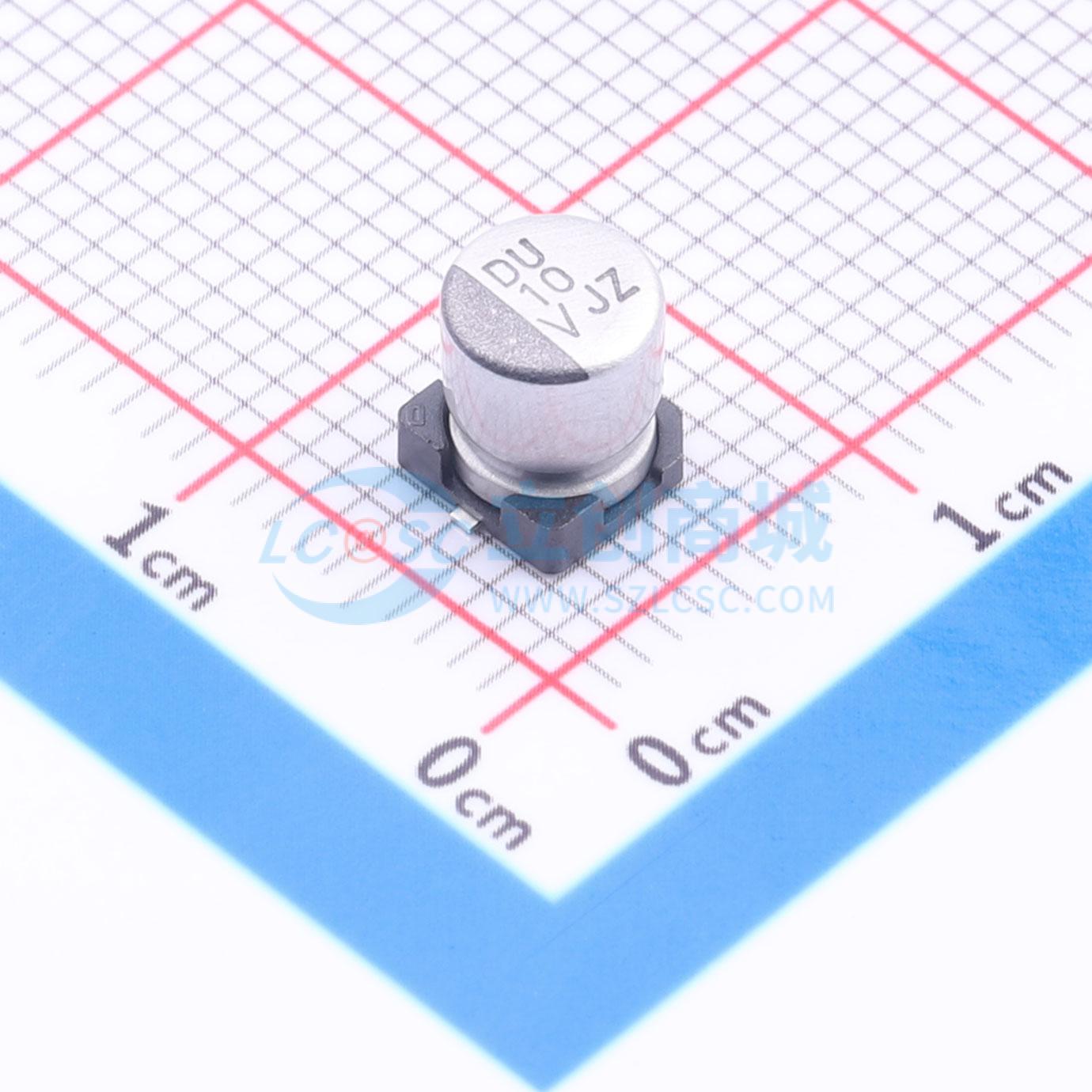

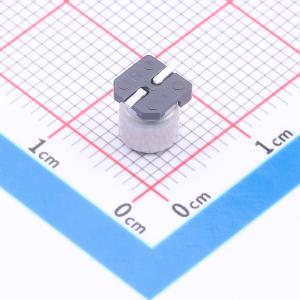

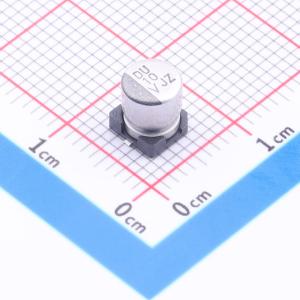

35JZV10M5X6.1
10uF ±20% 35V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- Rubycon(红宝石)
- 商品型号
- 35JZV10M5X6.1
- 商品编号
- C2165230
- 商品封装
- SMD,D5xL6.1mm
- 包装方式
- 编带
- 商品毛重
- 0.7909克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 贴片型铝电解电容 | |
| 容值 | 10uF | |
| 精度 | ±20% | |
| 额定电压 | 35V | |
| 纹波电流 | 54.4mA@120Hz |
| 属性 | 参数值 | |
|---|---|---|
| 等效串联电阻(ESR) | 700mΩ | |
| 电容体直径 | 5mm | |
| 电容体长度 | 6.1mm | |
| 工作寿命 | 2000hrs@105℃ | |
| 工作温度 | -55℃~+105℃ |
